ge.com

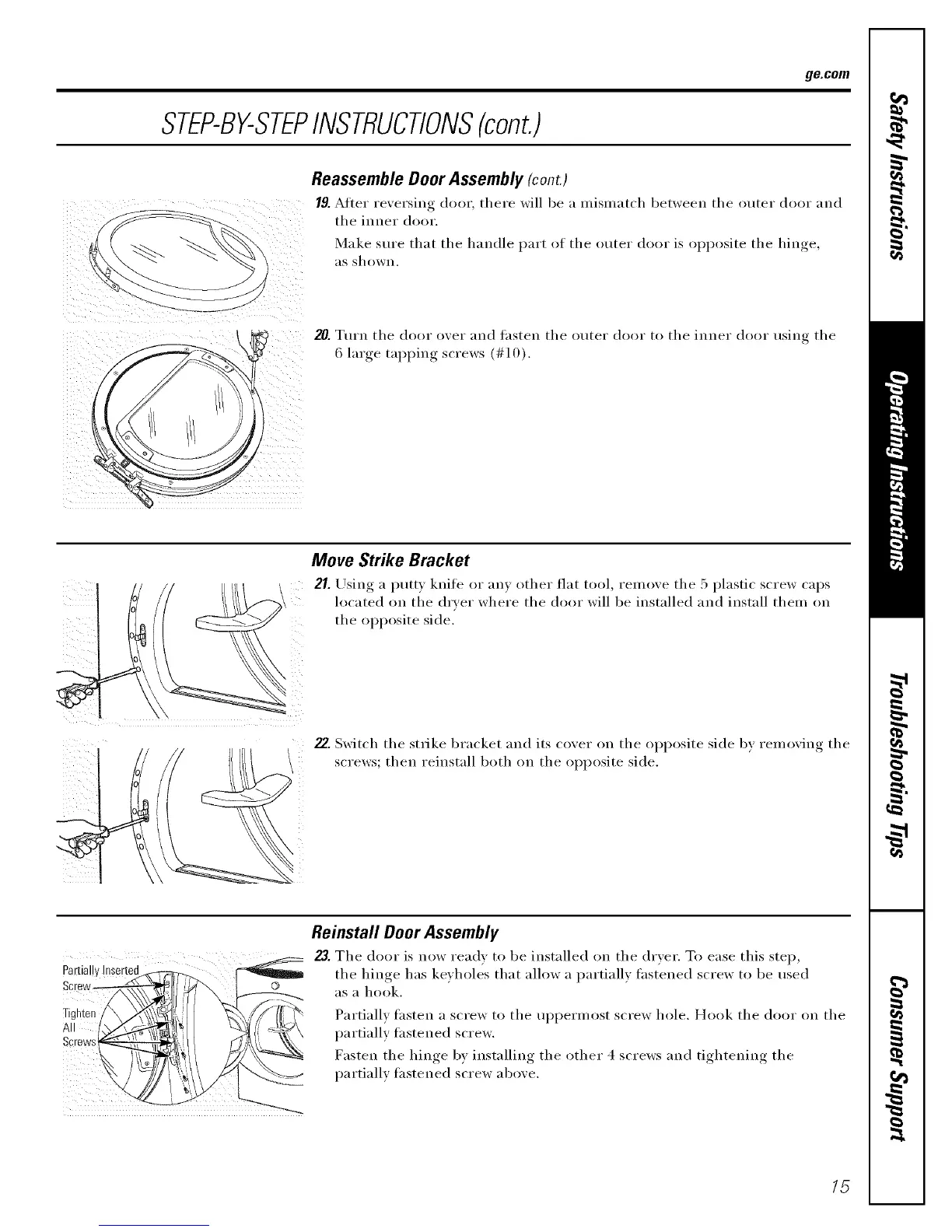

STEP-BY-STEPINSTRUCTIONS(cont.)
Reassemble Door Assembly (cont.)
19.Afier reversing door, there will be a misnmtch between the outer door and
the innei" doox'.
Make sure that the handle part of the outer door is opposite the hinge,
as shown.
20. Turn the door oxer and tasten the outer door to the inner door using the
6 laroe ta )Dim, (# 10).
l • _ scYews
Move Strike Bracket
21. Using a putty knifl _ or any other fiat tool, remove the 5 plastic screw caps
located on the dryer where the door will be installed and install them on
the opposite side.
_. Switch the strike bracket and its coxer on the opposite side by remoxing the
screws; then reinstall both on the opposite side.
PartiallyInserte
®
Tighten
All
Strews
Reinstall Door Assembly
23. The door is now ready to be installed on the dryer. To ease this step,
the hinge has keyholes that allow a partially fastened screw to be used
as a hook.
Partially tasten a screw to the uppermost screw hole. Hook the door on the
partially tastened screw.
Fasten the hinge by installing the other 4 screws and tightening the
partially tastened screw above.
15
