FVR-C9S-2UX

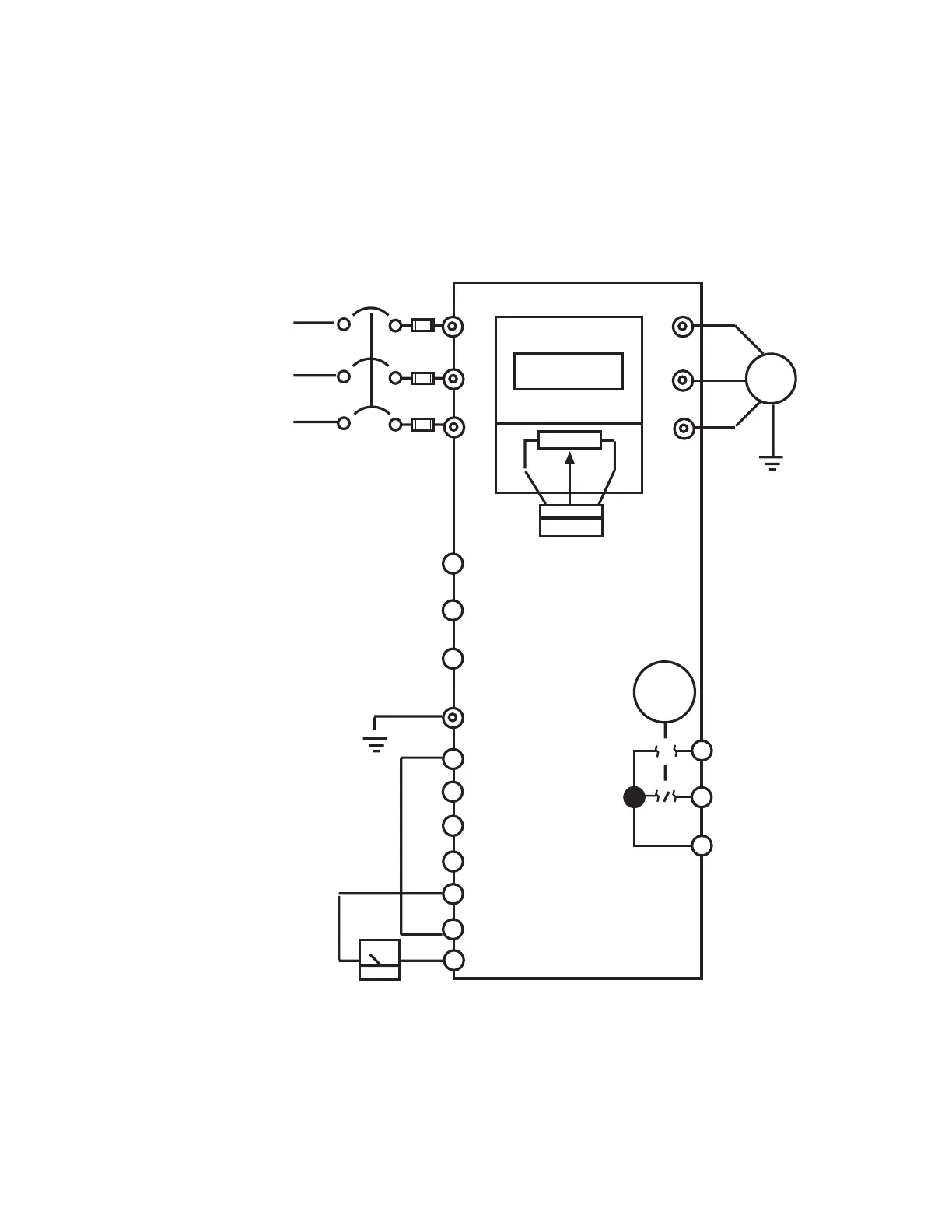

1) Keypad Panel Operation
From the factory, the drive is set for frequency control by means of the potentiometer control
knob on the keypad panel. The RUN/STOP function of the drive is controlled by the RUN/
STOP keys on the keypad panel.
M
FAB
8 8 8
CN2
10V 1mA
L1
L2
L3
U
V
W
13
12
11
FWD
REV
RST
BX
CM
THR
FM
E (G)
Power Supply
AC200 - 230V
50/60 Hz
3-phase
30A
30B
30C
Fault
