B. OPTIONAL HOME INSTALLATION
(CONT.)
3. Open the main water supply valve and several
house faucets to purge air from the system.
Close the faucets when water runs smoothly.

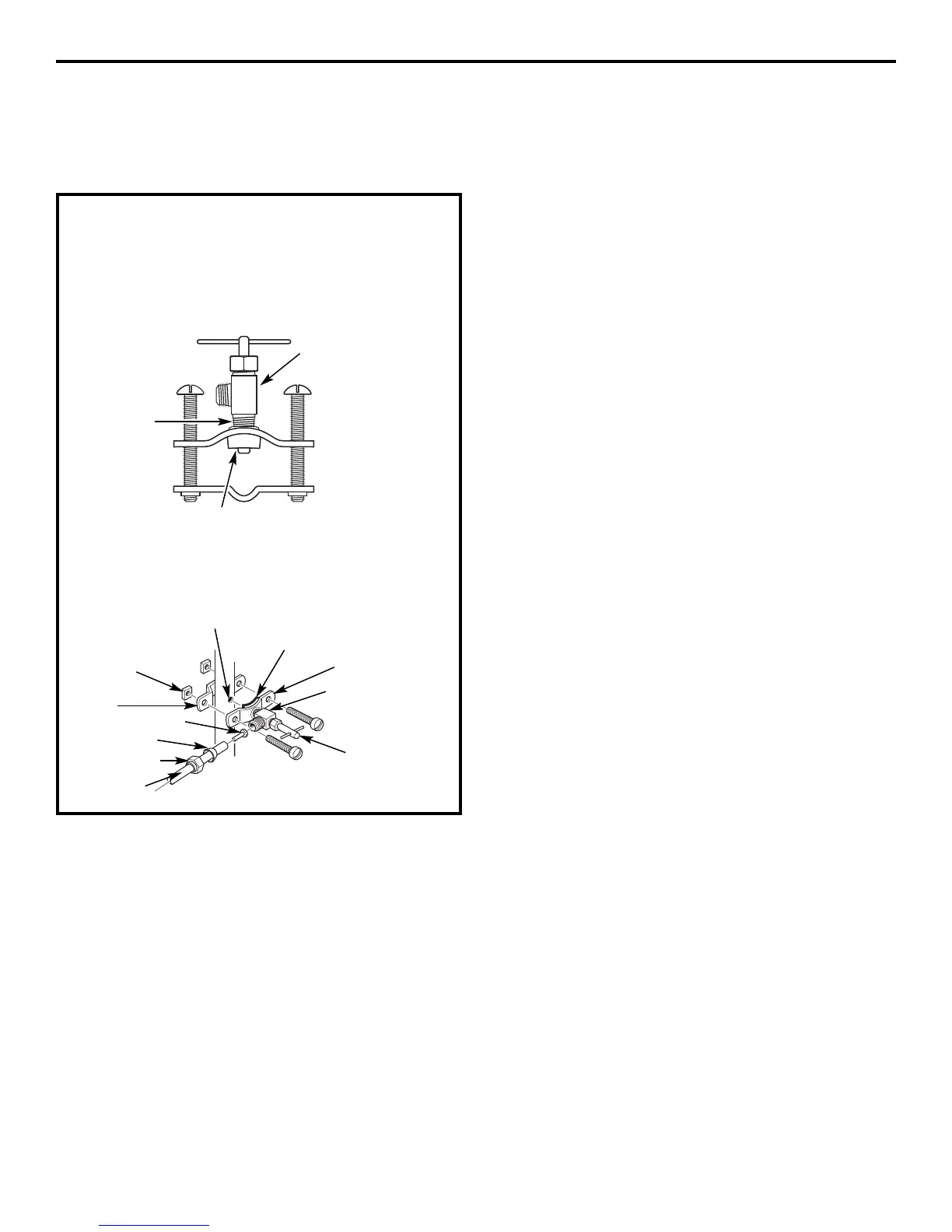

Optional water supply connection (using saddle valve)*
Pre-drill
1/4” hole
Seal—make sure the seal
is in place
Clamp X
Nut (2)—not
required if holes
in clamp are
threaded
Valve
Handle
Ferrule
Compression nut
Tube
Clamp Z
Use to connect the tubing
*For 1/4” OD or larger metal tubing only.
Snug valve into bracket
DO NOT OVERTIGHTEN
Some threads
should be visible
Rubber gasket
Brass insert
