Indoor/Outdoor PIR Motion Sensors Installation Instructions
Outdoor Installation Guidelines
Use the following guidelines for installing outdoor motion sensors.
• The outdoor motion sensor should be used for outdoor applications where there’s a tempera-
ture range from 10° to 120° F (12° to 49° C).
• Do not use outdoor motion sensors for intrusion protection since any human, pet, or heated
mechanical motion such as an automobile can activate the sensor.
• Follow the indoor motion sensor installation guidelines except for the last four items.
• Do not aim the sensor at objects that may be heated excessively by the sun, such as black top
or dark colored objects.
• Do not aim the sensor at foliage or shrubbery which has a dark background.
• The housing is water-resistant but not water-proof. Mount the sensor underneath eaves or
porch coverings to prevent over exposure to rain, ice, and direct sunlight.
• The sensor’s coverage area is shown in Figures 2 and 4.
Indoor Motion
Sensor
Mounting
The sensor can be flush-mounted, incline-mounted, or corner-mounted depending on the lens
used (see Figure 5). Also, the optional swivel mount (#60-737) can be used for difficult mounting
locations.
0 ft
20 ft
20 ft
0 ft
10 ft
20 ft
0 m
11 m
6 m
3 m
0 m
3 m
6 m
35 ft
Person walking across detection path
Top View

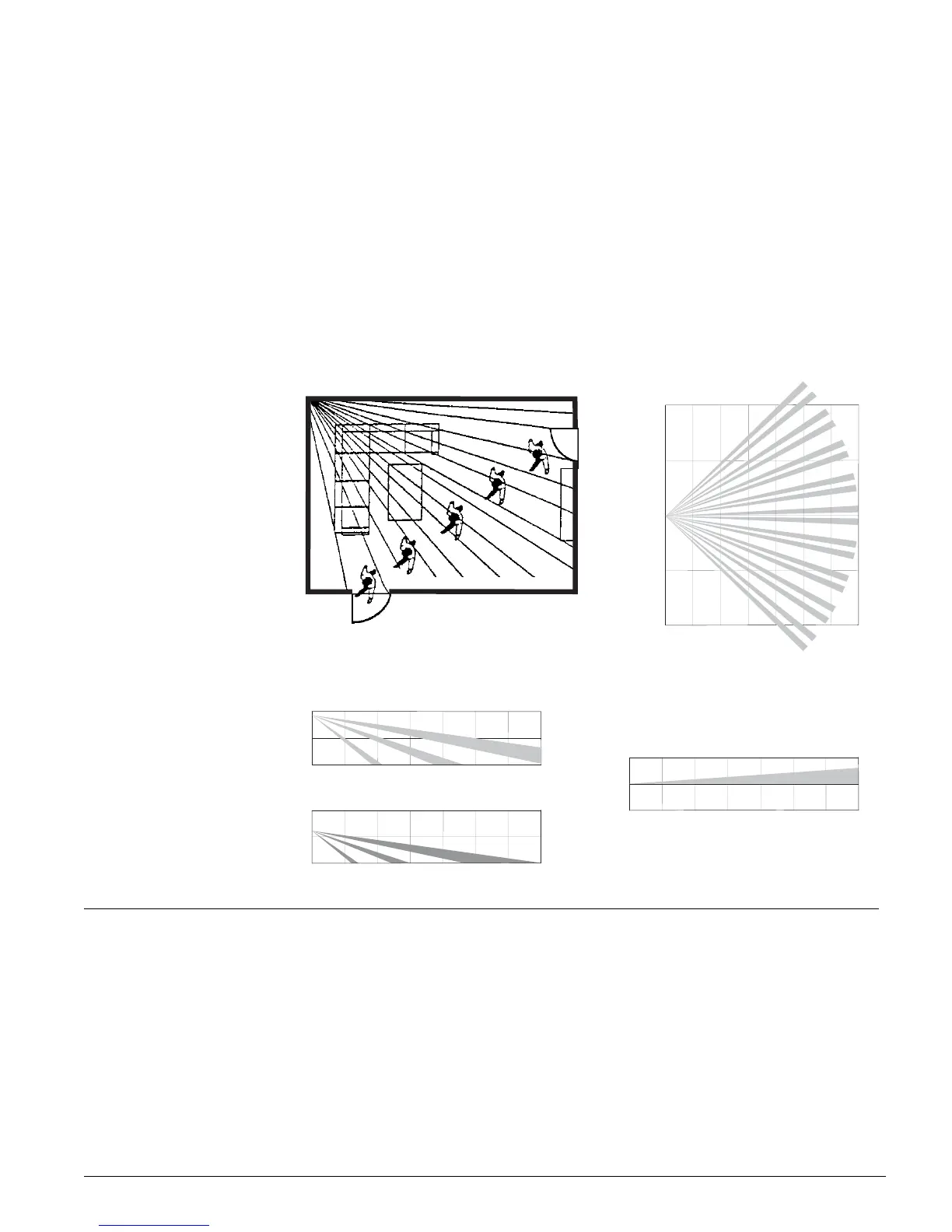

Figure 1. Overhead (Bird’s Eye View) Detection Path
Figure 2. Top View Lens Coverage Area
8 ft
0 m
4 ft
0 ft
35 ft
11 ft
2.4 m
1.2 m
0 m
0 ft
8 ft
0 m
4 ft
0 ft
0 ft
35 ft
11 ft
2.4 m
1.2 m
0 m
5 Foot Mounting Height
7 1/2 Foot Mounting Height
SIDE VIEWS (Indoor Motion Sensor Standard Lens)
Figure 3. Side View Coverage Area at Different Heights
8 ft
0 m
4 ft
0 ft
35 ft
11 ft
2.4 m
1.2 m
0 m
Side View Indoor Motion Sensor Animal Alley Lens
Flush Mount
Figure 4. Side View of Indoor/Outdoor PIR
with Animal Alley Lens
