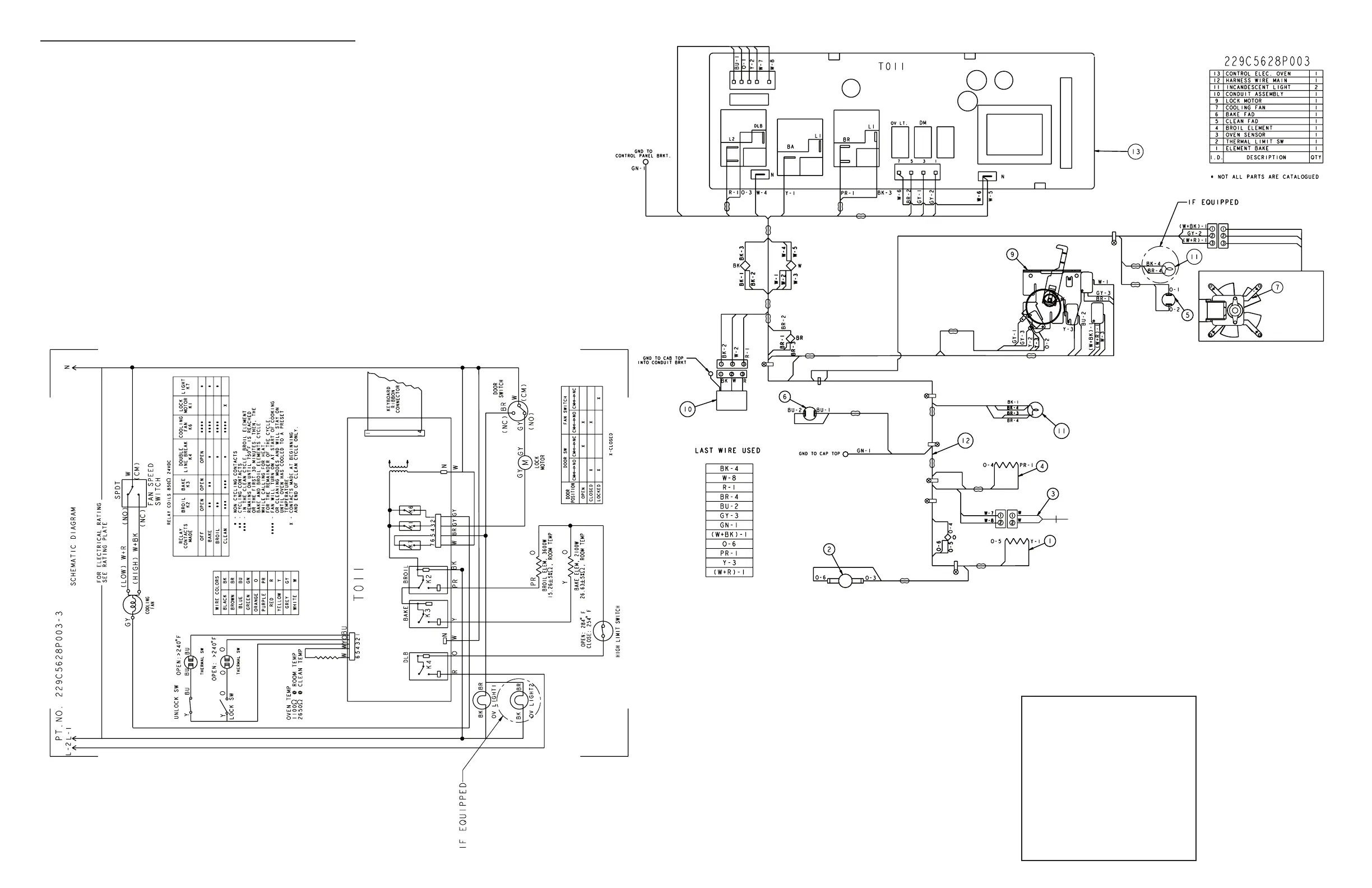

MODEL NUMBER
JTP30
JTP31
IMPORTANT
SERVICE IN FOR MA TION
DO NOT DISCARD
Pub No. 3114960 1011 GE
COOLING AIRFLOW
Air enters the door assembly through large slots in the bottom and flows upward
between the inner and outer assemblies, exhausting through slots in the top of
the door. DO NOT INSULATE THIS AIR CHANNEL.
To Service Full Glass Door
1. Complete door assembly
• Remove screws from the bottom door trim.
• Remove screws at the top of the door.
• The liner assembly can be separated from the rest of the door.
2. Outer glass panel assembly
• Remove the screws that hold the handle to the glass.
NOTE: The other parts cannot be separated.
3. Liner assembly
• Remove screws on each side of the door liner to remove the door hinge
assembly.
• Remove screws from the insulation retainer.
• Remove insulation retainer and then the insulation.
• The window pack and window gasket are now accessible on units with a
window door.
Door Gasket
The door gasket is clipped into the liner of the oven door.
3114960
TAPE AREA
