4 HUMAN INTERFACES 4.2 EXTENDED ENERVISTA UR SETUP FEATURES
4
Once the template has been applied, users are limited to view and edit the FlexLogic entries not locked by the template.
The effect of applying the template to the FlexLogic entries in the above procedure is shown below.

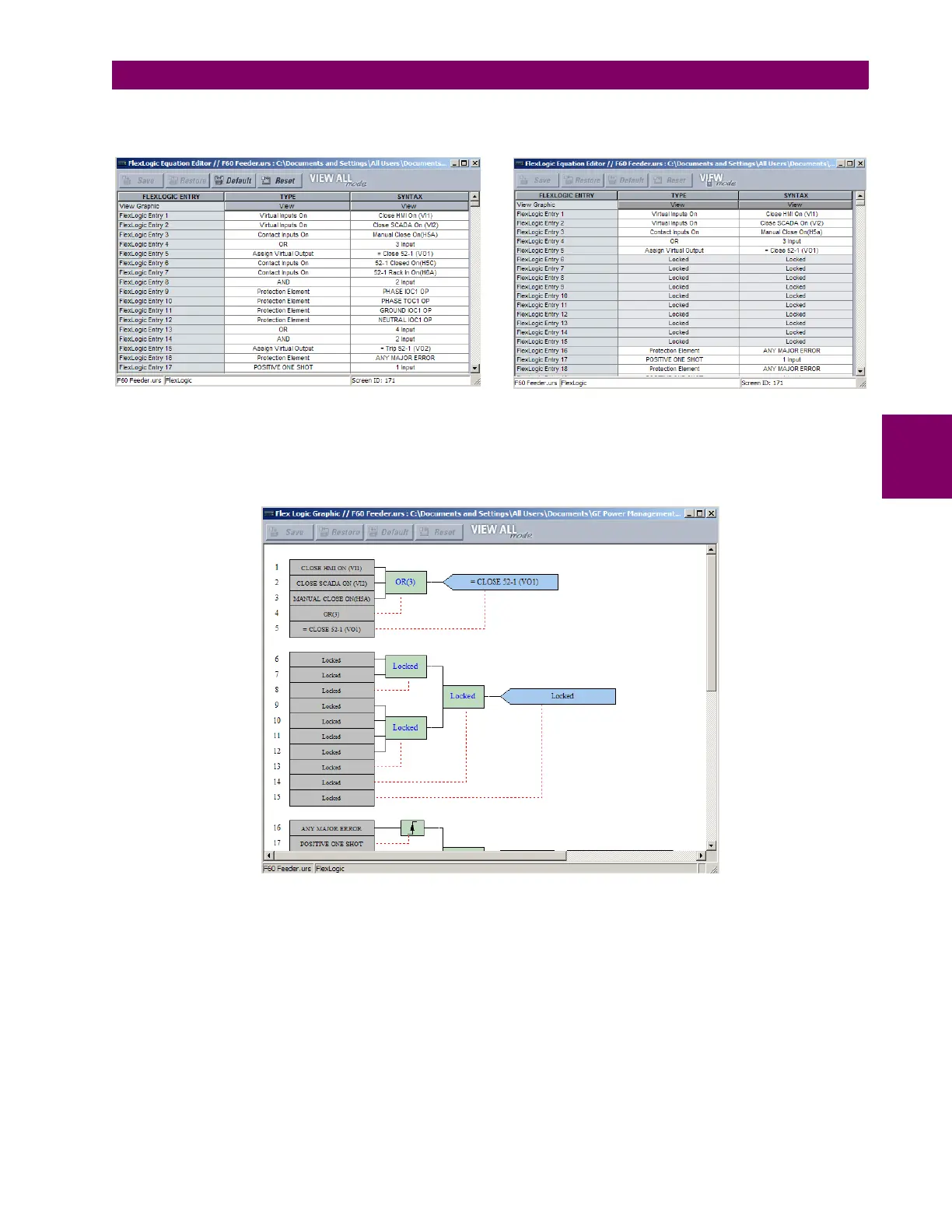

Figure 4–8: LOCKING FLEXLOGIC ENTRIES THROUGH SETTING TEMPLATES
The FlexLogic entries are also shown as locked in the graphical view (as shown below) and on the front panel display.
Figure 4–9: SECURED FLEXLOGIC IN GRAPHICAL VIEW
b) LOCKING FLEXLOGIC EQUATIONS TO A SERIAL NUMBER
A settings file and associated FlexLogic equations can also be locked to a specific UR serial number. Once the desired
FlexLogic entries in a settings file have been secured, use the following procedure to lock the settings file to a specific serial
number.
1. Select the settings file in the offline window.
2. Right-click on the file and select the Edit Settings File Properties item.
Typical FlexLogic™ entries without template applied. Typical locked with template via
the command.Template Mode > View In Template Mode
FlexLogic™ entries
842861A1.CDR
