D
IRECTION 5813707-100, REVISION 2 VENUE™ SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-31
PRELIMINARY
8-2-11 Front Display Assembly Replacement Procedure
8-2-11-1 Tools
Phillips screwdriver of appropriate size
8-2-11-2 Time Required
5 min
8-2-11-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown.
2.) Prepare stable flat surface covered with a soft material (such as foam or thick cloth) to prevent
scratches to the display.
3.) Dismount Venue Go™ system from cart as described in Mounting / Dismounting System on Cart
and place it on a previously prepared surface with the display facing down.
8-2-11-4 Front Display Assembly Removal Procedure
1) Remove back cover.
2) Remove back speakers.
3.) Remove the C-FEB
4.) Front display is now clear of all elements.
Note: The WiFi antennas are coming pre-assembled as part of the Front display module.
Refer to Table 9-16 on page 9-17.
• Back Cover Removal Procedure
• Speakers Removal Procedure
• C-FEB Removal Procedure

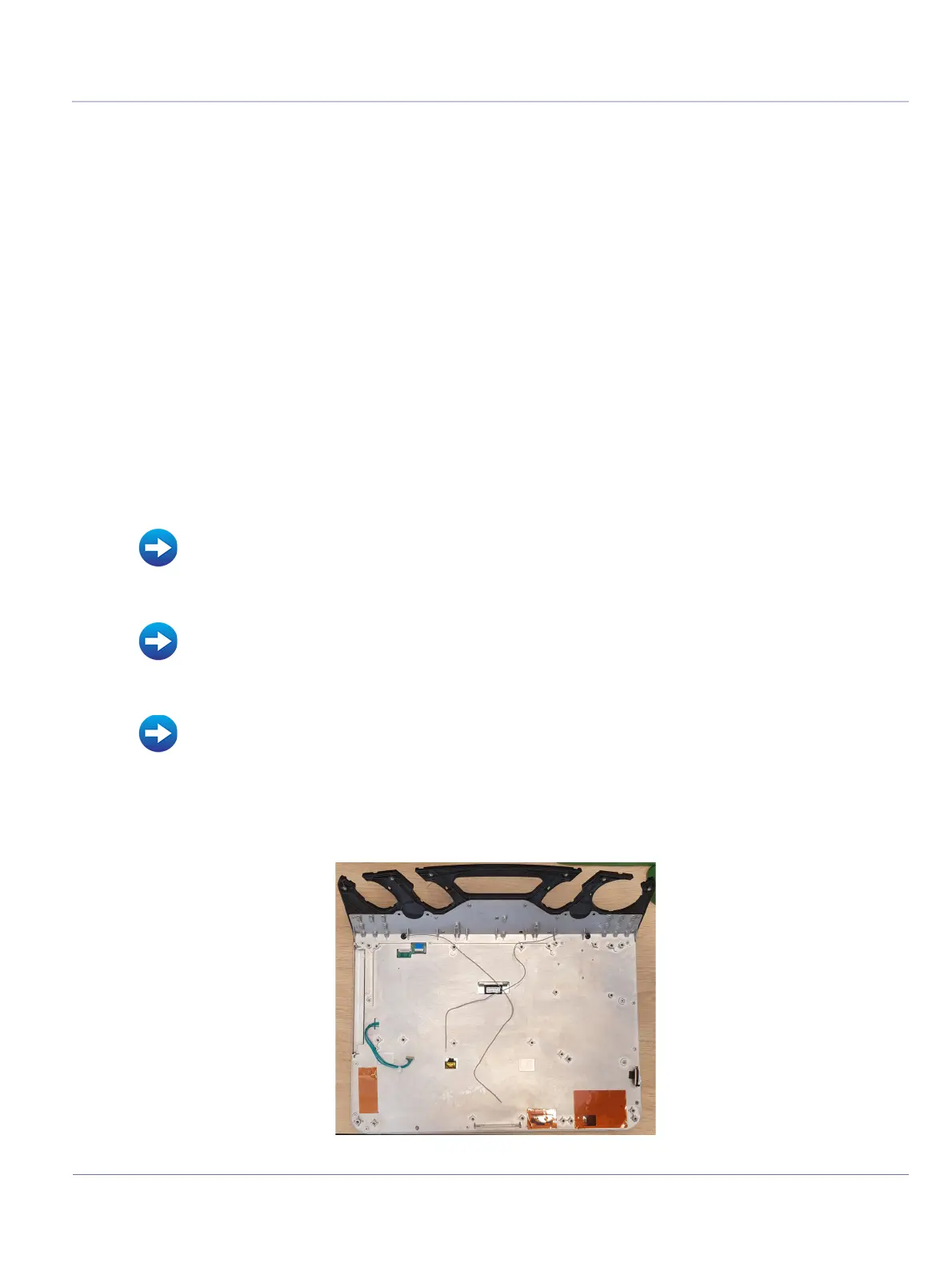

Figure 8-108 Front Display Assembly Removed
