GE VersaMax User Manual

GFK-1504K Chapter 2 Installation Instructions 2-19
2

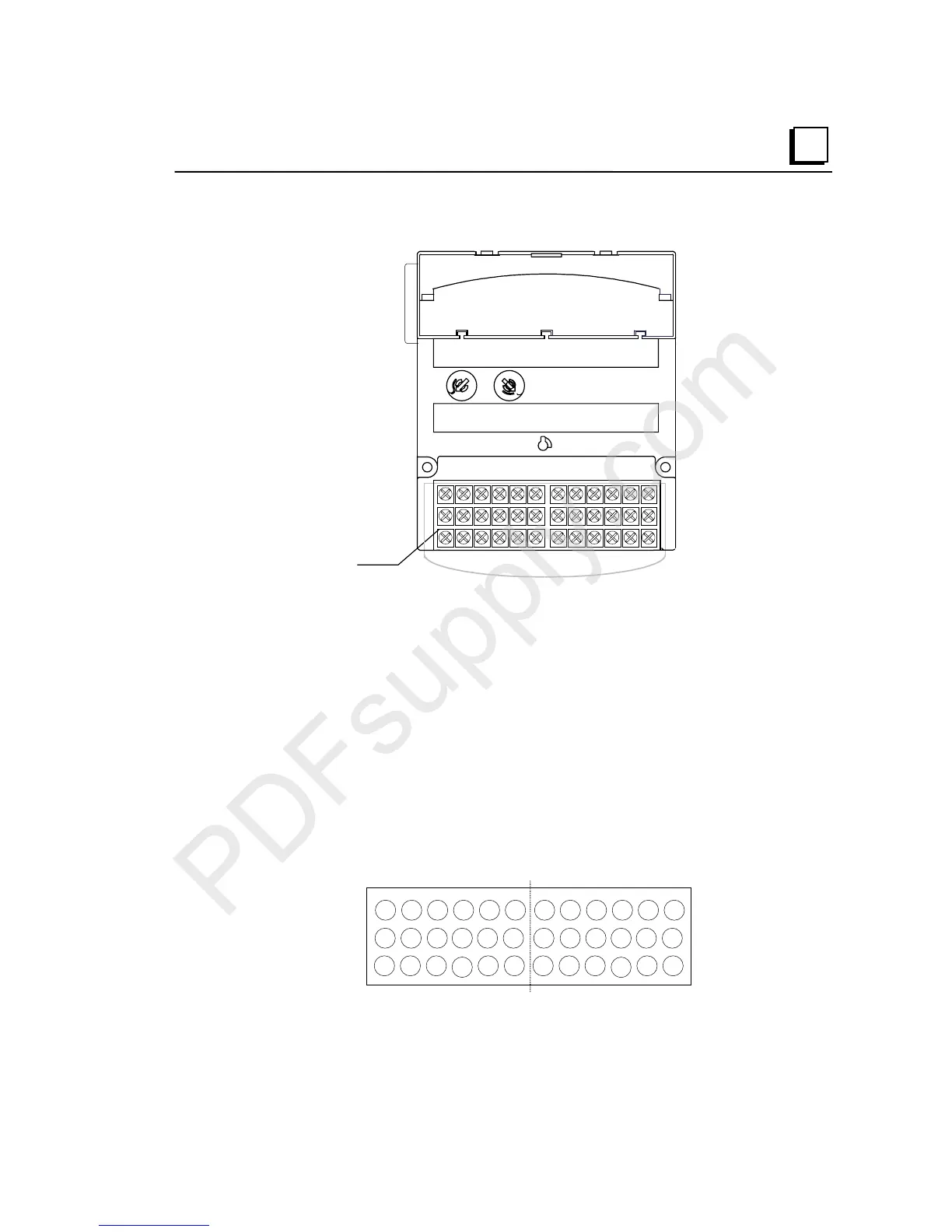

Wiring for a Barrier-Style I/O Carrier (IC200CHS001)
Field Wiring
T
e
rmin
a
l
s
H
G
F
8
2
4
6
B
C
7
D
3
Each terminal on a Barrier-Style I/O Carrier accommodates one or two solid or stranded
wires from AWG #22 (avg. 0.36mm
2
cross section) to AWG #14 (avg. 2.1mm
2
cross
section). Use copper wire rated for 90 degrees C. When inserting two wires in the same
position, the wires must be the same size and type (solid or stranded).
The I/O carrier can accommodate current levels up to 2 Amps per point or 8 Amps per
each power and ground, and a voltage range of up to 264 VAC. Voltage transients up to
300 VAC will not damage the carrier.
For a Barrier-Style I/O Carrier, recommended terminal torque is .37 to .50 ft-lbs.
The label provided with the module can be folded and inserted in the module’s transparent
door.
Terminal Numbering for a Barrier-Style I/O Carrier
A1 A2 A3
A4
A5 A6
A7 A8 A9 A11 A12
A13
A14
A15 A16 A17 A18
A10
B1 B2 B3
B4
B5 B6
B7 B8 B9 B11 B12
B13
B14
B15 B16 B17 B18
B10
