4-4 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
4
IC200CHS001
Barrier-Style I/O Carrier

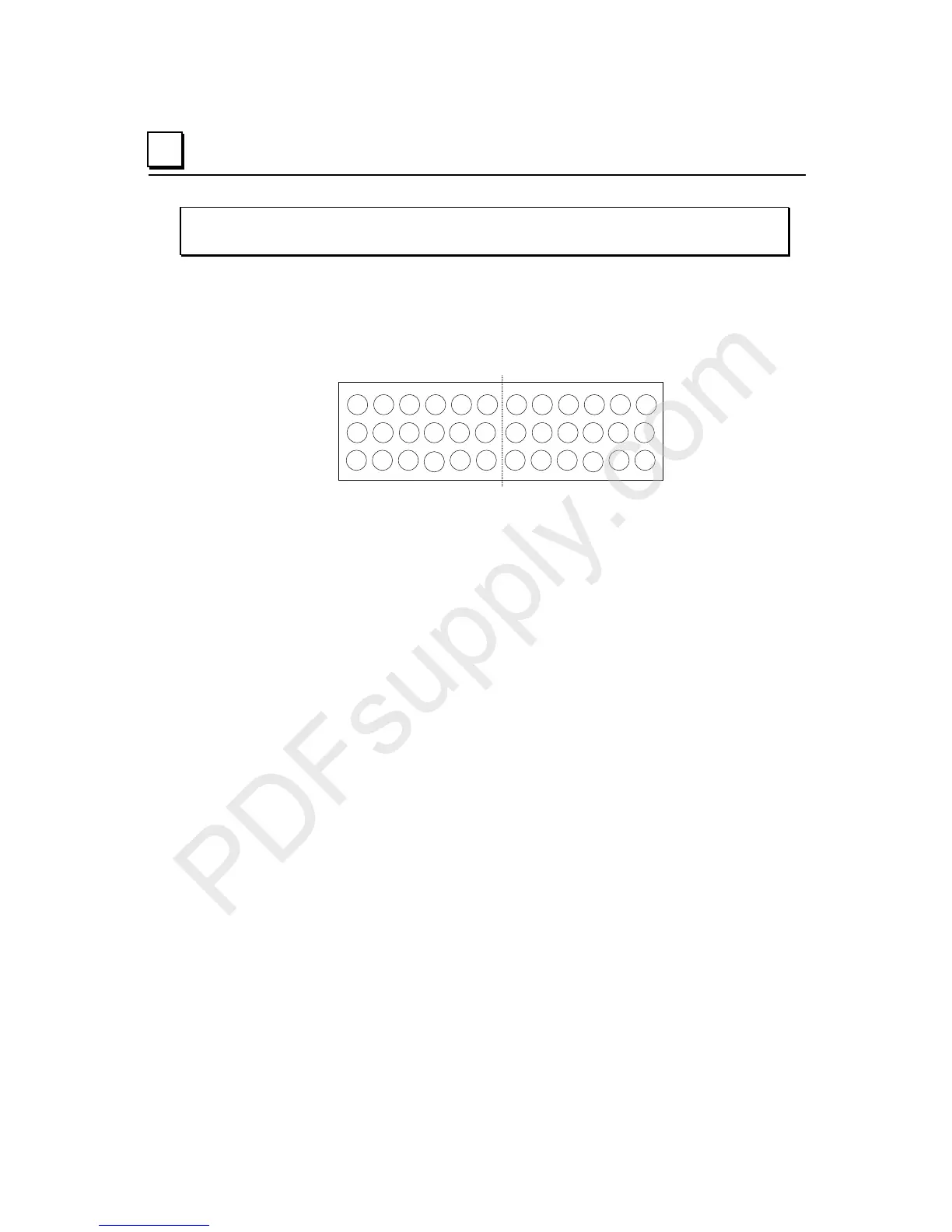

Field Wiring Terminals
Each terminal accommodates one or two solid or stranded wires from AWG #22 (avg.
0.36mm
2
cross section) to AWG #14 (avg. 2.1mm
2
cross section).
A1 A2 A3
A4
A5 A6
A7 A8 A9 A11 A12
A13
A14
A15 A16 A17 A18
A10
B1 B2 B3
B4
B5 B6
B7 B8 B9 B11 B12
B13
B14
B15 B16 B17 B18
B10
The carrier accommodates current levels up to 2 Amps per point or 8 Amps per each
power and ground, and a voltage range of up to 264 VAC. Voltage transients up to 300
VAC will not damage the carrier.
One or more Auxiliary I/O Terminal Strips can be added to provide extra field wiring
connections if needed. Auxiliary I/O Terminal Strips insert directly into the lower edge of
the I/O Carrier.
