GE HEALTHCAREDRAFT VOLUSON E8 / VOLUSON E6
D
IRECTION KTD102576, REVISION 7 DRAFT (AUGUST 23, 2012) SERVICE MANUAL
Chapter 6 - Service Adjustments 6-7
Section 6-5
Control Console Positioning
The control console can be rotated, translated and adjusted in height.
6-5-1 Translation/Rotation Adjustment
Rotate/translate the console to the desired position.
Press the BRAKE
button again in order to secure the console against uncontrolled movement.
6-5-2 Height Adjustment (Elevation)
Press the BRAKE button on the inside of the handlebar opening.

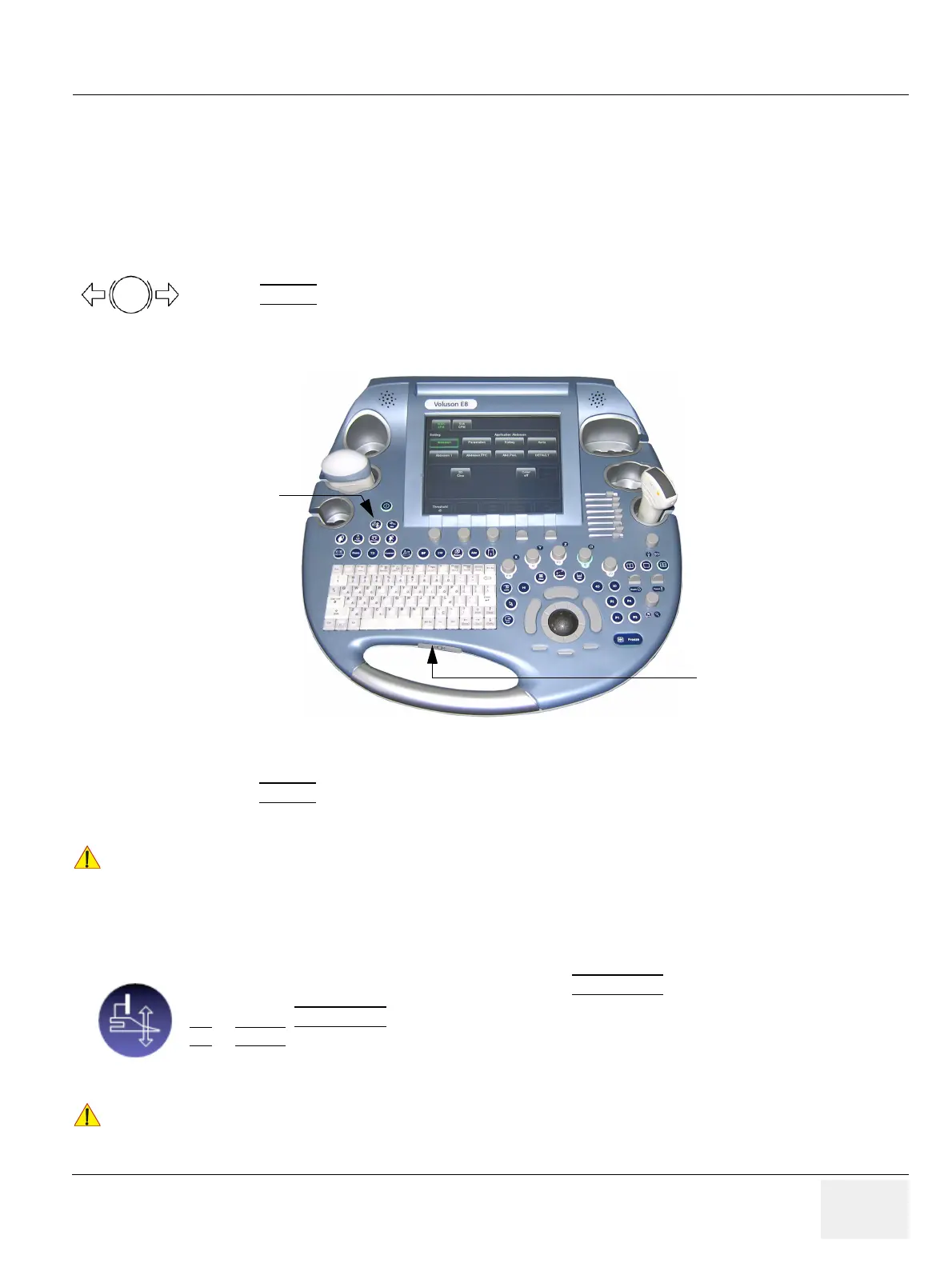

Figure 6-7 Buttons for Control Console Adjustment
!! CAUTION:
The system should NOT be moved with the Control Console (UI) extended.
DO NOT put your hand between the control console and the Main system when moving the
Control Console to its centered and locked position: Danger of injuries!
Control console elevation adjustment is done with the ELEVATION
key on the control panel.
As long as the ELEVATION
key is pressed, the control console can be lifted/lowered by means of the
UP
or DOWN button displayed on the Touch Panel (soft keys for safety reason).
!! CAUTION:
Make sure that nothing would be jammed while moving!
[Brake] button
for locking and unlocking
the control console
[Elevation] button
for height adjustment of
the control console
