GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-71
8-20-11 Replacement of the Cover Bottom Voluson Station
8-20-11-1 Manpower
One person, 10 minutes
8-20-11-2 Tools
Phillips screwdriver 1
8-20-11-3 Preparations
none
8-20-11-4 Cover Bottom - Removal Procedure
1.) Slide the Power Supply Bottom Cover backward and it will drop down.
2.) For unlocking, turn the 3 quick release devices below the Base Cover Assy 90°.
3.) Screw off the 2 screws and tilt the Bottom Cover out and up to release tabs at the top of the Cover.
8-20-11-5 Cover Bottom - Installation Procedure
1.) Place the new Base Cover Assy at the original position.
2.) For locking, turn the 3 quick release devices below the Base Cover Assy 90°.
3.) Place the new Power Supply Cover and fasten with the 2 screws.

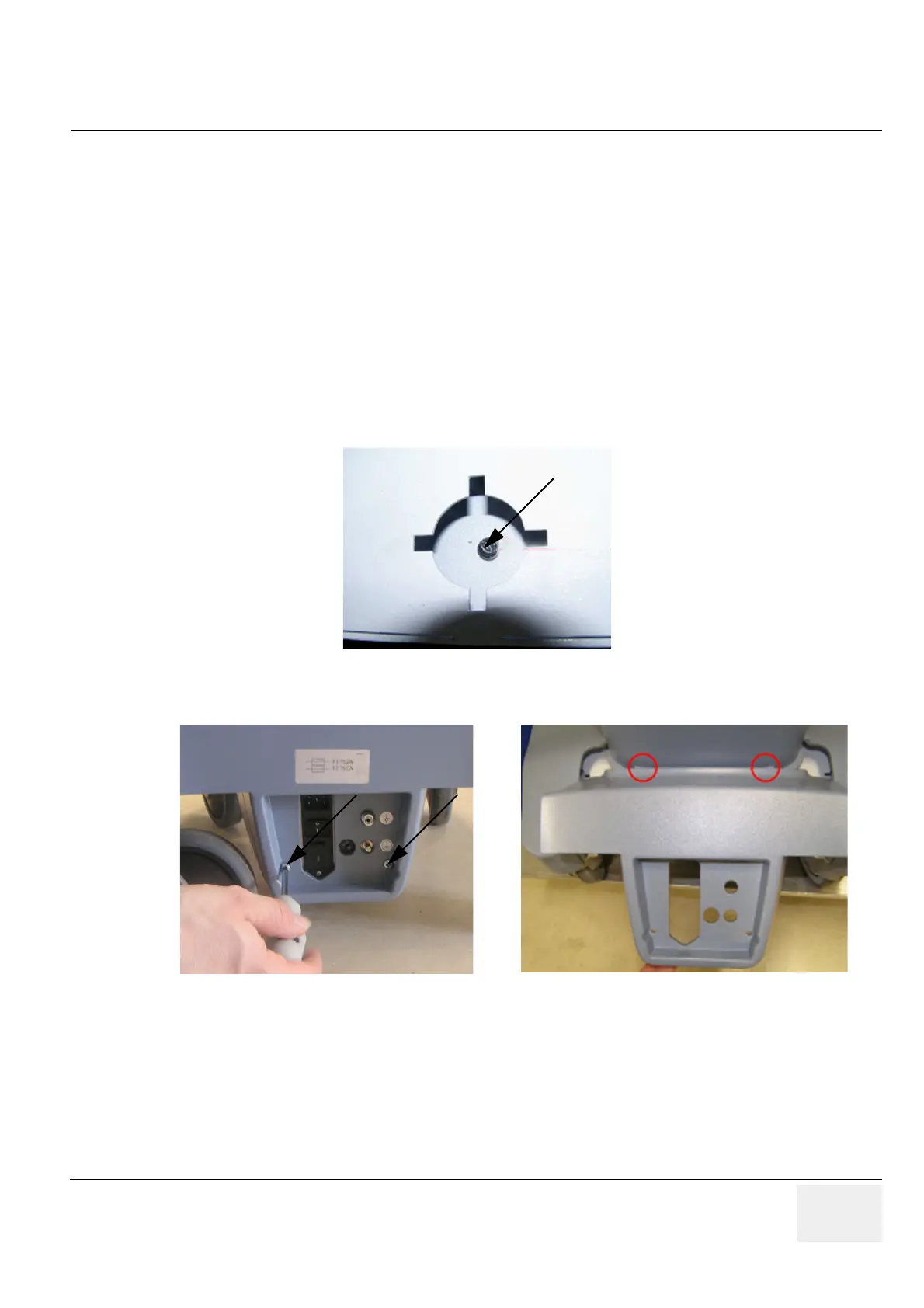

Figure 8-93 turn quick release devices 90°
Figure 8-94 screw off the 2 screws and carefully remove it
