GE
DRAFT
V
OLUSON
™ P8/V
OLUSON
™P6
DIRECTION 5775469, R
EVISION
3
DRAFT
(J
ULY
19, 2018)
B
ASIC
S
ERVICE
M
ANUAL
Chapter 8 -
Replacement Procedures
8-79

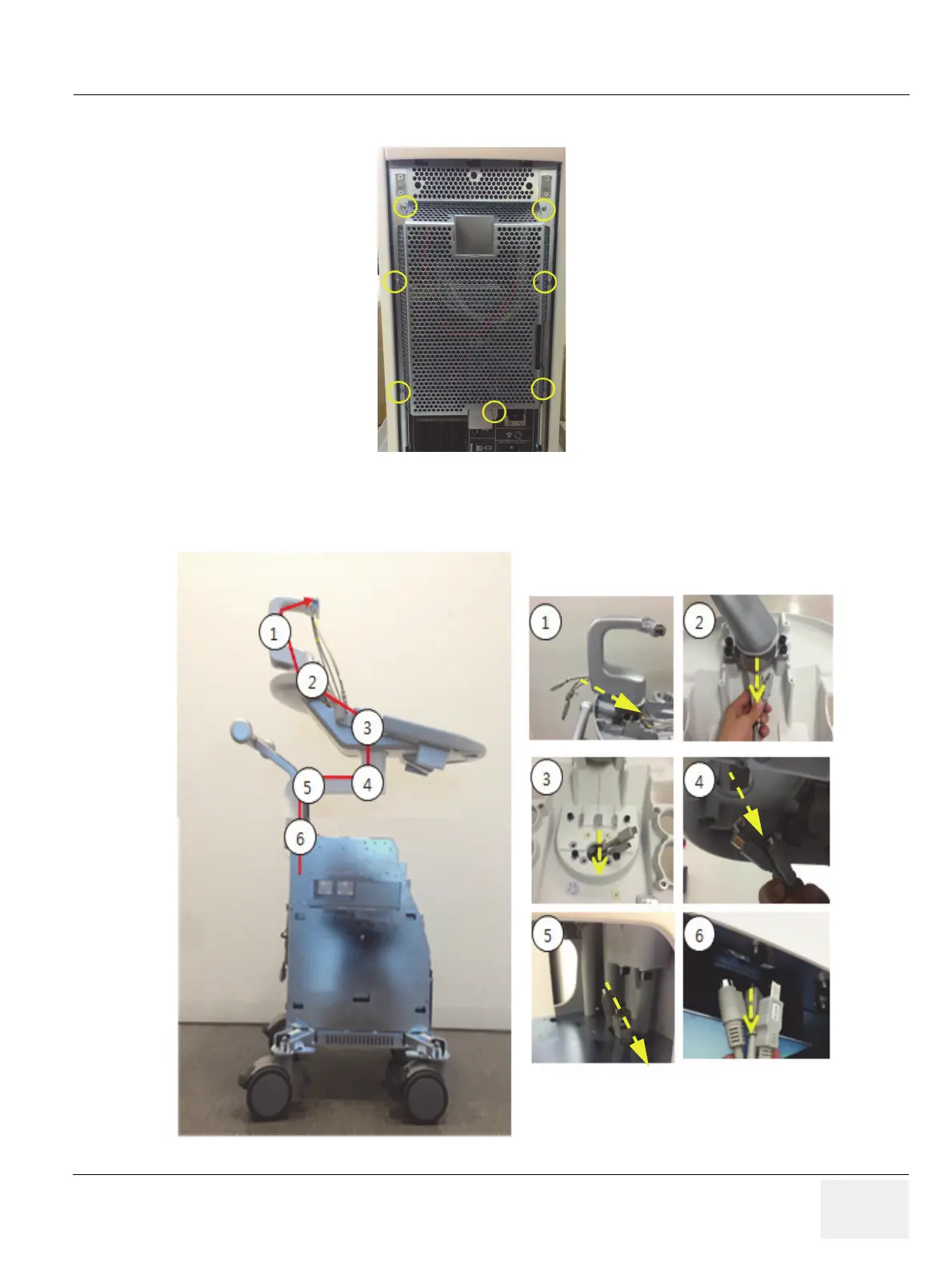

16.)
Unscrew 7 sc
rews and dis
assemble REAR EM
I COVER.
17.)
Pull out the LCD Cables throug
h the hole. Refer to the figur
e below.
Figure 8-1
17 Unscrewing 7 screwing to disassemble REAR EMI COVER
440
442
Table of Contents
Important Precautions
3
Chapter 1
41
Introduction
41
Section 1-1 Overview
41
1-1-1 Purpose of Chapter 1
41
1-1-2 Purpose of Service Manual
41
1-1-3 Typical Users of the Basic Service Manual
42
1-1-4 Models Covered by this Manual
42
1-1-5 Purpose of Operator Manual(s)
43
Section 1-2 Important Conventions
43
1-2-1 Conventions Used in this Manual
43
1-2-2 Standard Hazard Icons
44
1-2-3 Product Icons
45
Section 1-3 Safety Considerations
47
1-3-1 Introduction
47
1-3-2 Human Safety
47
1-3-3 Mechanical Safety
47
1-3-4 Electrical Safety
48
1-3-4-1 Safe Practices
48
1-3-4-2 Probes
48
1-3-5 Auxiliary Devices Safety
48
1-3-6 Labels Locations
50
1-3-6-1 Main Label
51
1-3-6-2 TUV mark
51
1-3-6-3 Multi Caution Label
52
1-3-7 Dangerous Procedure Warnings
53
1-3-8 Lockout/Tagout Requirements (For USA Only)
53
1-3-9 Returning/Shipping System, Probes and Repair Parts
53
1-3-10 Battery Safety
54
Section 1-4 Electromagnetic Compatibility (EMC)
55
1-4-1 What is EMC?
55
1-4-2 Compliance
55
1-4-3 Electrostatic Discharge (ESD) Prevention
55
Section 1-5 Customer Assistance
56
1-5-1 Contact Information
56
1-5-2 System Manufacturer
57
Chapter 2
59
Site Preparation
59
Section 2-1 Overview
59
2-1-1 Purpose of Chapter 2
59
Section 2-2 General Console Requirements
60
2-2-1 Environmental Requirements
60
2-2-1-1 Cooling
60
2-2-1-2 Lighting
60
2-2-2 Electrical Requirements
60
2-2-2-1 Voluson™ P8/Voluson™P6 Power Requirements
61
2-2-2-2 Inrush Current
61
2-2-2-3 Site Circuit Breaker
61
2-2-2-4 Site Power Outlets
61
2-2-2-5 Main Power Plug
61
2-2-3 EMI Limitations
62
2-2-4 Probe Environmental Requirements
63
2-2-5 Time and Manpower Requirements
63
2-2-6 System Specifications
63
2-2-6-1 Physical Dimensions of Voluson™ P8/Voluson™P6
63
2-2-6-2 Acoustic Noise Output
63
2-2-6-3 Electrical Specifications
63
Section 2-3 Facility Needs
64
2-3-1 Purchaser Responsibilities
64
2-3-2 Mandatory Site Requirements
65
2-3-3 Site Recommendations
65
2-3-3-1 Recommended Ultrasound Room Layout
66
2-3-4 Networking Setup Requirements
67
2-3-4-1 Stand-alone Unit (without Network Connection)
67
2-3-4-2 Unit Connected to Hospital’s Network
67
2-3-4-3 Purpose of the DICOM Network Function
67
2-3-4-4 DICOM Option Pre-installation Requirements
67
Chapter 3
69
Setup Instructions
69
Section 3-1 Overview
69
3-1-1 The Purpose of Chapter 3
69
Section 3-2 Set Up Reminders
70
3-2-1 Average Installation Time
70
3-2-2 Installation Warnings
71
3-2-2-1 Moving/Lifting the System
71
3-2-2-2 System Acclimation Time
71
3-2-2-3 Brake Pedal Operation
71
3-2-3 Safety Reminders
72
Section 3-3 Receiving and Unpacking the Equipment
73
Section 3-4 Preparing for Set Up
77
3-4-1 Verify Customer Order
77
3-4-2 EMI Protection
78
Section 3-5 Connection of Auxiliary Devices
79
3-5-1 Connecting the LCD Monitor
80
3-5-2 Connecting the Black & White Printer
81
3-5-2-1 Connection Scheme: B&W Printer
82
3-5-3 Connecting the Color Printer
83
3-5-3-1 Connection Scheme: Color Printer
84
3-5-4 Connecting the DeskJet Color Printer
85
3-5-4-1 Connection via Bluetooth Adapter
85
3-5-5 Connecting the Wireless Network Adapter
87
3-5-6 Connecting the Footswitch
88
3-5-7 Connecting the USB Flash Memory Stick
89
3-5-8 Connecting the external USB Hard disk (Handydrive)
89
3-5-9 General Remarks and Hints when using external USB-Devices
90
3-5-9-1 External USB-Devices - Connection
90
3-5-9-2 External USB-Devices - Disconnection
90
Section 3-6 Completing the Set Up
92
3-6-1 Connecting the Unit to a Power Source
92
3-6-2 Power On / Boot Up
93
3-6-2-1 Ultrasound unit Power On
93
3-6-2-2 Back End Processor Boot Up
94
3-6-2-3 During a normal boot, you may observe
95
3-6-3 Power Off / Shutdown
96
3-6-3-1 Ultrasound unit Shutdown
96
3-6-4 Transducer Connection
98
Section 3-7 Printer Installation
99
3-7-1 Installing the Digital Black & White Printer
99
3-7-2 Installing the Digital Color Printer
99
3-7-3 Installing the Network Color laser Printer
100
3-7-4 Installing the Deskjet Color Printer directly via an USB-cable
106
3-7-5 Installing the DeskJet Color Printer via Bluetooth connection
107
3-7-5-1 Installing the Bluetooth Adapter and Software
107
3-7-5-2 Prepare the DeskJet Color Printer
111
3-7-5-3 Installing the printer software/driver
112
3-7-6 Printer Installation manually
116
3-7-7 Adjustment of Printer Settings
117
3-7-7-1 UP-D897 / UP-D898MD - Printer Settings
118
3-7-7-2 UP-D25MD - Printer Settings
119
3-7-8 Remote Control Selection
121
3-7-8-1 Report Printer Selection
122
Section 3-8 System Configuration
123
3-8-1 System Setup
123
3-8-1-1 To invoke the Setup procedure:
124
3-8-1-2 How to enter Date and Time
125
3-8-1-3 How to enter Clinic Name
126
3-8-1-4 How to change Language and/or EUM Language
126
3-8-1-5 How to change Ext. Monitor Output Settings
127
3-8-1-6 How to adjust function of the Footswitch (Left/Middle/Right)
127
3-8-1-7 How to change the Keyboard Layout
127
3-8-1-8 How to configure Service Platform
127
3-8-1-9 How to execute Additional Software Installation (ASI)
127
3-8-1-10 How to activate User Login Authentication
128
3-8-1-11 How to perform Full Disk Encryption
129
3-8-1-12 How to protect the system by Whitelisting
131
3-8-1-13 How to install SW Option
131
3-8-2 On-Board Optional Peripherals
132
3-8-3 External I/O Connectors
133
3-8-3-1 External I/O Pin Outs
133
Section 3-9 Available Probes
135
Section 3-10 Software/Option Configuration
135
Section 3-11 Connectivity Setup
136
3-11-1 Connectivity Introduction
136
3-11-1-1 The Dataflow Concept
136
3-11-1-2 Dataflow Examples
137
3-11-1-3 Stand-alone Voluson™ P8/Voluson™P6
138
3-11-1-4 Voluson™ P8/Voluson™P6 + PC (with 4D View Software) within a “Sneaker Net”
138
3-11-1-5 Connection between Voluson™ P8/Voluson™P6 and DICOM Server
138
Section 3-12 Network Configuration
139
3-12-1 TCP/IP Configuration
139
3-12-2 Wireless Network Configuration
141
3-12-2-1 Connecting to the WLAN
141
3-12-2-2 Disconnecting from the WLAN
141
3-12-2-3 Adding a WLAN Profile
142
3-12-2-4 Refreshing a WLAN Network
142
3-12-2-5 Setting a WLAN Network as Non-Preferable
143
3-12-2-6 Removing a WLAN Profile
143
3-12-2-7 Customizing an existing WLAN Profile
144
3-12-2-8 Available WLAN Channels
145
3-12-2-9 Monitoring the WLAN
146
3-12-2-10 WLAN Diagnostic
147
3-12-2-11 Repairing the WLAN
148
3-12-3 How to Setup E-mail
149
3-12-4 How to Setup E-mail to MMS Service
150
3-12-5 How to enter Patient's Email address and Phone number in the PID screen
151
3-12-6 Map Network Drive
152
3-12-7 Insite Exc Configuration
154
3-12-7-1 How to create an InSite Permanent User
156
Section 3-13 Connectivity Setup Worksheet
158
Section 3-14 Paperwork
160
3-14-1 Product Locator Installation
160
3-14-2 User Manual(s)
160
Chapter 4
161
Functional Checks
161
Section 4-1 Overview
161
4-1-1 Purpose of Chapter 4
161
Section 4-2 Required Equipment
161
Section 4-3 General Procedure
162
4-3-1 Power On / Boot Up
162
4-3-1-1 System Power On
162
4-3-2 Power Off / Shutdown
164
4-3-2-1 System Shutdown
164
4-3-3 Sleep Mode
166
4-3-3-1 Activate Sleep Mode
166
4-3-4 System Features
167
4-3-4-1 Control Panel
167
4-3-4-2 Monitor Display
168
Section 4-4 Functional Checks
169
4-4-1 Patient Archive (Image Management)
170
4-4-2 Erasing DVD/CD
171
Section 4-5 Backup and Restore Database, Preset Configurations and Images
172
4-5-1 Save Small Backup (Scan Settings)
173
4-5-2 Load Small Backup (Scan Settings)
174
4-5-2-1 Preparations
174
4-5-2-2 Load “Complete Backup”
175
4-5-2-3 Load only parts of the “Complete Backup”
176
4-5-3 Save Full System Configuration (Full Backup)
177
4-5-4 Load Full System Configuration (Full Backup)
179
4-5-5 Delete Full System Configuration (Full Backup)
181
4-5-6 Archiving Images
182
4-5-6-1 Save Image Archive
182
4-5-6-2 Load Image Archive
184
Section 4-6 Software Configuration Checks
185
4-6-1 System Setup
185
4-6-2 Measure Setup
186
Section 4-7 Peripheral Checks
187
4-7-1 ECG Check Out
187
4-7-2 Control Console Positioning
188
4-7-2-1 Assembly procedure for converting Voluson™ P8/Voluson™P6 from Low Version to High Version
188
4-7-3 Brakes and Direction (Swivel) Locks
202
Section 4-8 Mode Transition
203
4-8-1 B Mode
203
4-8-2 M Mode
203
4-8-3 B/CF Mode
203
4-8-4 PW Mode
203
4-8-5 CW (Optional)
203
4-8-6 3D/4D (Optional)
203
Section 4-9 Site Log
204
Chapter 5
205
Components and Functions (Theory)
205
Section 5-1 Overview
205
5-1-1 Purpose of Chapter 5
205
Section 5-2 General Information
206
5-2-1 Description of Voluson™ P8/Voluson™P6 Operating Modes
210
5-2-1-1 B-Mode or 2D-Mode
210
5-2-1-2 M-Mode
210
5-2-1-3 Color Doppler Modes
211
5-2-1-4 Pulsed (PW) Doppler
212
5-2-1-5 3D Imaging
212
5-2-1-6 3D Data Collection and Reconstruction
212
5-2-1-7 3D Image Presentation
212
5-2-1-8 3D Rendering
213
5-2-2 Block diagram Voluson™ P8/Voluson™P6
214
5-2-2-1 Front End Block diagram
215
5-2-2-2 Back End Block diagram
215
5-2-2-3 OPIO Block diagram
215
5-2-3 Data Flow Control Description
216
5-2-3-1 B-Mode
216
5-2-3-2 M-Mode
217
5-2-3-3 D-Mode (Pulsed Wave- and Continuous Wave Doppler)
217
5-2-3-4 D-Mode Autotrace (draws PC-calculated envelope to D-Spectrum)
218
5-2-3-5 CFM-Mode (Color Flow Mode)
219
5-2-3-6 3D-Mode (Freezes after 1 volume sweep)
219
5-2-3-7 Real Time 4D-Mode (nonstop volume rendering)
219
5-2-3-8 XBeam CRI-Mode (CrossBeam Compound Resolution Imaging)
219
5-2-3-9 Archive write mode (store Image to Archive)
219
5-2-4 Description of Software Options
220
5-2-4-1 3D/4D Activation
222
5-2-4-2 Advanced 3D/4D Package
222
5-2-4-3 HDLive(3D)
222
5-2-4-4 Advanced VCI
222
5-2-4-5 SingleView
223
5-2-4-6 SonoAVC follicle
223
5-2-4-7 SonoL&D
223
5-2-4-8 TUI
223
5-2-4-9 CFM/M-CFM
223
5-2-4-10 XTD
223
5-2-4-11 Anatomical M-Mode
223
5-2-4-12 SonoNT
224
5-2-4-13 IOTA
224
5-2-4-14 DICOM
224
5-2-4-15 Recording Module SW-DVR
224
5-2-4-16 IEC62359 Ed.2
224
5-2-4-17 IOTA Simple Rules
224
5-2-4-18 Advanced Security Features
225
5-2-5 Description of Hardware Options
226
5-2-5-1 CW - Continuous Wave Doppler
227
5-2-5-2 ECG Module
227
5-2-5-3 Wireless Network Adapter (WLAN - Wireless Local Area Network)
227
5-2-5-4 DPS Battery Assy
227
5-2-5-5 UP-BT18
227
5-2-6 Data Location
228
Section 5-3 FrontEnd Processor
229
5-3-1 T-DPI - Probe Interface board
230
5-3-2 DBM64G- Beam former board
231
5-3-3 DRFG- Radio Frequency interface and System controller
232
5-3-3-1 DRFG - FPGA
233
Section 5-4 BackEnd Processor
234
5-4-1 Hard Disk Drive
235
5-4-2 SOM (System On Module)
235
5-4-2-1 Congatec
235
Section 5-5 Internal I/O
237
Section 5-6 OPIO (User Interface)
238
5-6-1 OPIO Block Diagram
238
5-6-2 OPIO layout
239
5-6-3 Button Description
239
Section 5-7 Monitor
244
Section 5-8 Monitor setup
244
Section 5-9 External I/O
245
Section 5-10 Peripherals
246
5-10-1 Printers
246
5-10-1-1 Black & White Digital Printer
246
5-10-1-2 Color Digital Printer
246
5-10-1-3 Color Deskjet Printer
246
5-10-2 DVD+R/RW Drive (Writer)
246
5-10-3 ECG Module
246
5-10-4 Wireless Network Adapter
246
5-10-5 DPS Battery Assy
246
Section 5-11 Power Distribution
247
5-11-1 ACFE - Primary Power Module
247
5-11-1-1 DPS Block Diagram
248
5-11-1-2 Power Distribution Block Diagram
250
5-11-1-3 Power Up Sequence Description
251
5-11-1-4 Mechanical Concept and Overview
252
5-11-1-5 Functions of ACFE
252
5-11-2 ACDC - primary DC Power Supply
253
5-11-2-1 Function of ACDC
253
5-11-3 DCDC - main DC Power Supply
253
5-11-4 4D Module
253
Section 5-12 Service Platform (InSite Exc)
254
5-12-1 Introduction
254
5-12-2 Access / Security
254
5-12-2-1 Local Access
255
5-12-2-2 Remote Access
256
Section 5-13 Common Service Desktop (CSD)
257
5-13-1 Internationalization
257
Section 5-14 Service Page
258
5-14-1 Introduction
258
5-14-2 Access / Security
258
5-14-3 Service Login
258
5-14-3-1 Auto Tester
259
5-14-3-2 Update
259
5-14-3-3 TCP/IP Buffersize
260
5-14-3-4 Show Factory Presets
260
5-14-3-5 Common Service Desktop (CSD)
260
5-14-3-6 Request for Service(RFS)
260
5-14-3-7 Delete all Patients
260
5-14-3-8 Export System Data
261
5-14-3-9 Console Test
261
5-14-3-10 Keyboard Layout
261
5-14-3-11 Monitor Test
261
5-14-3-12 Connected Probes
261
5-14-3-13 Load Application Settings
262
5-14-3-14 Probe EEPROM
263
Section 5-15 Boot Screen Functions
264
5-15-1 Overview
264
5-15-1-1 Voluson
264
5-15-1-2 GE-Service
264
5-15-1-3 Rollback
265
5-15-1-4 Memtest(Memory Check)
266
Section 5-16 Windows Start Menu
267
Section 5-17 LINUX - Voluson Maintenance System
269
5-17-1 Overview
269
5-17-1-1 General Operation and Selection in LINUX (and BIOS) menu
269
5-17-2 Access/Security
269
5-17-3 Before Recovering or Initializing the Hard disk
270
5-17-4 Voluson Maintenance System - Main Menu
272
5-17-4-1 Media
272
5-17-4-2 Advanced
272
5-17-4-3 About
272
5-17-4-4 Exit/Reboot
272
5-17-4-5 Halt
272
5-17-5 Media Menu
273
5-17-5-1 Exit
273
5-17-5-2 Restore
273
5-17-5-3 NewDisk
277
5-17-6 Advanced Functions Menu
283
5-17-6-1 Exit
283
5-17-6-2 Network
283
5-17-6-3 SSHD
283
5-17-6-4 Restore C : from recovery partition(R:)
283
5-17-6-5 Initialize Hard (C: and D:)
284
5-17-7 ServiceTools
285
5-17-7-1 Exit
285
5-17-7-2 Shell
285
5-17-7-3 USBTree
286
5-17-7-4 SmartHDDtest
286
5-17-7-5 HDDWipeTool
286
5-17-7-6 CollectLogs
287
5-17-7-7 CheckLnkSpeed
287
5-17-8 After Recovering or Initializing the Hard disk
288
Chapter 6
289
Service Adjustments
289
Section 6-1 Overview
289
6-1-1 Purpose of Chapter 6
289
Section 6-2 Regulatory
289
Section 6-3 LCD Monitor Adjustment
290
Section 6-4 Modification of Keyboard Layout
291
6-4-1 Setup the Voluson™ P8/Voluson™P6 Keyboard Language Layout
291
Chapter 7
293
Diagnostics/Troubleshooting
293
Section 7-1 Overview
293
7-1-1 Purpose of Chapter Voluson™ P8/Voluson™P6
293
7-1-2 Overview
293
Section 7-2 Collect Vital System Information
294
7-2-1 Request for Service (RFS)
296
7-2-2 Shortcuts List
298
Section 7-3 Check Points Voltages
301
7-3-1 How to check power
301
7-3-1-1 Dachstein Power Supply (DPS)
301
Section 7-4 Screen Captures and Logs
302
7-4-1 Capturing a screen
302
7-4-2 Capturing Network Logs with Network Sniffer
302
7-4-2-1 How to use a Capture Filter
306
7-4-2-2 How to use a Screen Filter
307
7-4-3 Export Log’s and System Data
308
7-4-3-1 Export System Data (by pressing the ALT + D key)
308
7-4-3-2 Export Log´s and System Data (via Service Page)
310
Section 7-5 Remote Access to Service Platform
311
7-5-1 General
311
7-5-2 How the Customer enables/disables Disruptive Mode and VCO
311
7-5-3 Virtual Network Computing (VNC)
312
7-5-4 CSD (Common Service Desktop)
316
Section 7-6 Common Service Desktop (CSD)
317
7-6-1 Error Logs
318
7-6-2 Diagnostics
319
7-6-2-1 Disruptive Mode
320
7-6-2-2 S.M.A.R.T. Tests
320
7-6-2-3 HW Tests
321
7-6-2-4 GPU (Graphics Processing Unit) Test
325
7-6-2-5 Show all HW Test Results
326
7-6-3 Image Quality
326
7-6-4 Calibration
327
7-6-5 Configuration
327
7-6-5-1 InSite Configuration
328
7-6-5-2 Asset Performance Management (APM)
328
7-6-6 Utilities
329
7-6-6-1 Common Utilities
330
7-6-6-2 Scanner Utilities
332
7-6-7 Replacement
333
7-6-8 PM
333
7-6-9 After Performing Diagnostics
334
Section 7-7 Hardware Tests
335
7-7-1 Audio(System) Interface Test.
337
7-7-2 Apertur Lateral Min
338
7-7-2-1 Check for missing channels or elements.
338
7-7-3 Automatic Diagnostic Test.
339
7-7-3-1 System Overall Test
339
7-7-3-2 VPD
340
7-7-3-3 DRFG Overall Test
341
7-7-3-4 DBM64G
342
7-7-3-5 DPI
343
7-7-3-6 DPS
343
7-7-3-7 OPIO Overall Test
344
7-7-3-8 Battery
344
7-7-3-9 HW Test Dialog
345
Section 7-8 Minimum Configuration to Boot/Scan
346
7-8-1 Booting without using the Ultrasound Hardware
346
Section 7-9 User Interface Troubleshooting
349
7-9-1 Console Test
349
Section 7-10 Troubleshooting Trees, Instructions and Tech Tips
351
7-10-1 System does not boot up
352
7-10-2 Noise disturbs the Image
353
7-10-3 Trackball - Impaired Sensitivity
354
7-10-4 Printer Malfunction
355
7-10-5 Monitor Troubleshooting
356
7-10-6 DVD/CD±R/RW Drive Test
357
7-10-7 Network Troubleshooting
359
7-10-7-1 No Connection to the Network at All
359
7-10-7-2 GE remote service connection
359
7-10-8 Tech Tips
360
7-10-8-1 Storing SonoView images to Voluson™ P8/Voluson™P6
360
Section 7-11 Error Messages
361
Chapter 8
363
Replacement Procedures
363
Section 8-1 Overview
363
8-1-1 Purpose of Chapter 8
363
8-1-2 Returning/Shipping System, Probes and Repair Parts
365
Section 8-2 System Software - Installation/Upgrade Procedure
366
8-2-1 Before the Installation/Upgrade procedure
366
8-2-1-1 System Functional Checks
367
8-2-1-2 Check vital System Setup data
368
8-2-2 System Software - Installation Procedure (FMI from DVD)
370
8-2-3 Software DVD Storage
374
8-2-4 Software Update Package - Download/Installation Procedure
375
8-2-4-1 Overview
375
8-2-4-2 Update Procedure
375
Section 8-3 Software and Functional Checks after Installation/Upgrade Procedure
382
Section 8-4 Image Settings Only - Loading Procedure
384
8-4-1 Introduction
384
8-4-2 Loading Procedure
384
Section 8-5 Full Backup (Full System Configuration) - Loading Procedure
384
8-5-1 Introduction
384
8-5-2 Loading Procedure
384
Section 8-6 Image Archive - Loading Procedure
384
8-6-1 Introduction
384
8-6-2 Loading Procedure
384
Section 8-7 Replacement or Activation of Options
385
8-7-1 Operation for activating Options
386
8-7-1-1 Operation for installing a “Demo Key” or a “Permanent Key”:
386
Section 8-8 Replacement of FRONT CABINET BEZEL ASSY BT16
387
8-8-1 Manpower
387
8-8-2 Tools
387
8-8-3 Disassembly Procedure
387
8-8-4 Installation Procedure
387
Section 8-9 Replacement of ASSY BEZEL FRONT DVD PLASTIC BT16
388
8-9-1 Manpower
388
8-9-2 Tools
388
8-9-3 Disassembly Procedure
388
8-9-4 Installation Procedure
388
Section 8-10 Replacement of FRONT PRINTER BEZEL ASSY BT16
389
8-10-1 Manpower
389
8-10-2 Tools
389
8-10-3 Disassembly Procedure
389
8-10-4 Installation Procedure
389
Section 8-11 Replacement of Cover Top Cabinet Plastic
390
8-11-1 Manpower
390
8-11-2 Tools
390
8-11-3 Disassembly Procedure
390
8-11-4 Installation Procedure
391
Section 8-12 Replacement of Front PEDESTAL COVER BT16
392
8-12-1 Manpower
392
8-12-2 Tools
392
8-12-3 Disassembly Procedure
392
8-12-4 Installation Procedure
393
Section 8-13 Replacement of TRAY PEDESTAL CABINET PLASTIC BT16
394
8-13-1 Manpower
394
8-13-2 Tools
394
8-13-3 Disassembly Procedure
394
Section 8-14 Replacement of REAR CABINET BEZEL ASSY BT16
396
8-14-1 Manpower
396
8-14-2 Tools
396
8-14-3 Disassembly Procedure
396
8-14-4 Installation Procedure
396
Section 8-15 Replacement of ENCODER set
397
8-15-1 Manpower
397
8-15-2 Tools
397
8-15-3 Removal procedure
397
8-15-4 Installation Procedure
401
Section 8-16 Replacement of Power ON/OFF key PCB Assembly
402
8-16-1 Manpower
402
8-16-2 Tools
402
8-16-3 Disassembly procedure
402
8-16-4 Installation procedure
407
Section 8-17 Replacement of Keyboard Assembly-TOP
408
8-17-1 Manpower
408
8-17-2 Tools
408
8-17-3 Disassembly procedure
408
8-17-4 Installation procedure
412
Section 8-18 Replacement of OPIO BUTTON SET
413
8-18-1 Manpower
413
8-18-2 Tools
413
8-18-3 Removal Procedure
413
8-18-4 Installation Procedure
417
Section 8-19 Replacement of OPIO Plastic lower cover assy
418
8-19-1 Manpower
418
8-19-2 Tools
418
8-19-3 Disassembly procedure
418
8-19-4 Installation procedure
423
Section 8-20 Replacement of OPIO Plastic upper cover assy
424
8-20-1 Manpower
424
8-20-2 Tools
424
8-20-3 Disassembly procedure
424
8-20-4 Installation procedure
428
Section 8-21 Replacement of Monitor
429
8-21-1 Manpower
429
8-21-2 Tools
429
8-21-3 Removal Procedure
429
8-21-4 Installation Procedure
430
Section 8-22 Replacement of the MONITOR ARM
431
8-22-1 Manpower
431
8-22-2 Tools
431
8-22-3 Removal Procedure
431
8-22-4 Installation Procedure
433
Section 8-23 Replacement of LCD Cable
434
8-23-1 Manpower
434
8-23-2 Tools
434
8-23-3 Disassembly Procedure
434
8-23-4 Assembly Procedure
442
Section 8-24 Replacement of ASSY Bumper Base Rubber
443
8-24-1 Manpower
443
8-24-2 Tools
443
8-24-3 Disassembly Procedure
443
8-24-4 Installation Procedure
448
Section 8-25 Replacement of OPIO
449
8-25-1 Manpower
449
8-25-2 Tools
449
8-25-3 Preparations
449
8-25-4 Removal Procedure
449
8-25-5 Installation Procedure
452
Section 8-26 Replacement of the SPEAKER
453
8-26-1 Manpower
453
8-26-2 Tools
453
8-26-3 Preparations
453
8-26-4 Removal Procedure
453
8-26-5 Installation Procedure
453
Section 8-27 Remove the PEDESTAL BOTTOM COVER BT16
454
8-27-1 Manpower
454
8-27-2 Tools
454
8-27-3 Preparations
454
8-27-4 Removal Procedure
454
8-27-5 Installation Procedure
454
Section 8-28 Replacement of the NEST
455
8-28-1 Manpower
455
8-28-2 Tools
455
8-28-3 Preparations
455
8-28-4 Removal Procedure
455
8-28-5 Installation Procedure
459
Section 8-29 Replacement of the AIR FILTER
460
8-29-1 Manpower
460
8-29-2 Tools
460
8-29-3 Preparations
460
8-29-4 Removal Procedure
460
8-29-5 Installation Procedure
461
Section 8-30 Replacement of the Probe Holder(KIT)
462
8-30-1 Manpower
462
8-30-2 Tools
462
8-30-3 Removal Procedure
462
8-30-4 Installation Procedure
462
Section 8-31 Replacement of SIDE COVER L ASSY BT16
463
8-31-1 Manpower
463
8-31-2 Tools
463
8-31-3 Preparations
463
8-31-4 Removal Procedure
463
8-31-5 Installation Procedure
464
Section 8-32 Replacement of SIDE COVER R ASSY
465
8-32-1 Manpower
465
8-32-2 Tools
465
8-32-3 Preparations
465
8-32-4 Removal Procedure
465
8-32-5 Installation Procedure
467
Section 8-33 Replacement of the Trackball
468
8-33-1 Manpower
468
8-33-2 Tools
468
8-33-3 Removal procedure
468
8-33-4 Installation Procedure
471
Section 8-34 Replacement of the TGC BOARD
473
8-34-1 Manpower
473
8-34-2 Tools
473
8-34-3 Preparations
473
8-34-4 Removal Procedure
473
8-34-5 Installation Procedure
474
Section 8-35 Replacement of AN KEYBOARD ASSY
475
8-35-1 Manpower
475
8-35-2 Tools
475
8-35-3 Preparations
475
8-35-4 Removal Procedure
475
8-35-5 Installation Procedure
476
Section 8-36 Replacement of the Caster Cap BT16
477
8-36-1 Manpower
477
8-36-2 Tools
477
8-36-3 Preparations
477
8-36-4 Removal Procedure
477
8-36-5 Installation Procedure
482
Section 8-37 Replacement of the CASTER
483
8-37-1 Manpower
483
8-37-2 Tools
483
8-37-3 Preparations
483
8-37-4 Removal Procedure
483
8-37-5 Installation Procedure
483
Section 8-38 Replacement of the SIDE CABINET TRAY BT16
484
8-38-1 Manpower
484
8-38-2 Tools
484
8-38-3 Preparations
484
8-38-4 Removal Procedure
484
8-38-5 Installation Procedure
484
Section 8-39 Replacement of the REAR HANDLE
485
8-39-1 Manpower
485
8-39-2 Tools
485
8-39-3 Preparations
485
8-39-4 Removal Procedure
485
8-39-5 Installation Procedure
487
Section 8-40 Replacement of the SPEAKER COVER LEFT/RIGHT
488
8-40-1 Manpower
488
8-40-2 Tools
488
8-40-3 Preparations
488
8-40-4 Removal Procedure
488
8-40-5 Installation Procedure
488
Section 8-41 Replacement of the DPS/DPS with Battery
489
8-41-1 Manpower
489
8-41-2 Tools
489
8-41-3 Preparations
489
8-41-4 Removal Procedure
490
8-41-5 Installation Procedure
490
Section 8-42 Replacement of the DRFG
491
8-42-1 Manpower
491
8-42-2 Tools
491
8-42-3 Preparations
491
8-42-4 Removal Procedure
492
8-42-5 Installation Procedure
493
8-42-5-1 DRFG (5786027) Installation Procedure
493
8-42-6 Serial Number - Reprogamming Procedure
494
Section 8-43 Replacement of the SOM in DRFG
497
8-43-1 Manpower
497
8-43-2 Tools
497
8-43-3 Preparations
497
8-43-4 Removal Procedure
497
8-43-5 Installation Procedure
497
Section 8-44 Replacement of the HDD in DRFG
498
8-44-1 Manpower
498
8-44-2 Tools
498
8-44-3 Preparations
498
8-44-4 Removal Procedure
498
8-44-5 Installation Procedure
498
Section 8-45 Replacement of the DBM64G
499
8-45-1 Manpower
499
8-45-2 Tools
499
8-45-3 Preparations
499
8-45-4 Removal Procedure
499
8-45-5 Installation Procedure
500
Section 8-46 Replacement of the T-DPI
501
8-46-1 Manpower
501
8-46-2 Tools
501
8-46-3 Preparations
501
8-46-4 Removal Procedure
502
8-46-5 Installation Procedure
503
Section 8-47 Replacement of the CSI
504
8-47-1 Manpower
504
8-47-2 Tools
504
8-47-3 Preparations
504
8-47-4 Removal Procedure
504
8-47-5 Installation Procedure
505
Section 8-48 Replacement of the DBP
506
8-48-1 Manpower
506
8-48-2 Tools
506
8-48-3 Preparations
506
8-48-4 Removal Procedure
506
8-48-5 Installation Procedure
507
Section 8-49 Replacement of the DVD
508
8-49-1 Manpower
508
8-49-2 Tools
508
8-49-3 Preparations
508
8-49-4 Removal Procedure
508
8-49-5 Installation Procedure
509
Section 8-50 Replacement of the OPIO USB Sub PWA
510
8-50-1 Manpower
510
8-50-2 Tools
510
8-50-3 Preparations
510
8-50-4 Removal Procedure
510
8-50-5 Installation Procedure
511
Section 8-51 Replacement of AN KEY TOP
512
8-51-1 Manpower
512
8-51-2 Tools
512
8-51-3 Preparations
512
8-51-4 Key Caps - Removal Procedure
512
Section 8-52 Replacing optional Peripherals
513
8-52-1 Manpower
513
8-52-2 Tools
513
8-52-3 Printer Installation (BW and Color)
514
8-52-3-1 BW Printer: SONY UP-D898, Color Printer: SONY UP-D25MD
514
8-52-3-2 Color Printer Assembly
520
8-52-4 HORIZONTAL TV PROBE HOLDER Installation
527
8-52-5 VERTICAL TV PROBE HOLDER Installation
528
Section 8-53 Replacement of FAN with Cable ASSY II
529
8-53-1 Manpower
529
8-53-2 Tools
529
8-53-3 Preparations
529
8-53-4 Removal Procedure
529
8-53-5 Installation Procedure
529
Section 8-54 Functional Checks after FRU replacement (Debrief Guidelines)
530
Section 8-55 Replacement of UVC
531
8-55-1 Manpower
531
8-55-2 Tools
531
8-55-3 Preparation
531
8-55-4 Removal procedure
531
8-55-5 Installation procedure
532
Section 8-56 Replacement of CWD piggy
533
8-56-1 Manpower
533
8-56-2 Tools
533
8-56-3 Preparations
533
8-56-4 Removal Procedure
533
8-56-5 Installation Procedure
536
Section 8-57 Replacement of ECG Kit assy
537
8-57-1 Manpower
537
8-57-2 Tools
537
8-57-3 Preparations
537
8-57-4 Removal Procedure
537
8-57-5 Installation Procedure
538
Section 8-58 Replacement of Battery Pack Assy
541
8-58-1 Manpower
541
8-58-2 Tools
541
8-58-3 Preparation
541
8-58-4 Removal procedure
541
8-58-5 Installation Procedure
542
Section 8-59 Replacement of WIRELESS LAN
543
8-59-1 Manpower
543
8-59-2 Tools
543
8-59-3 Preparation
543
8-59-4 Removal Procedure
543
8-59-5 Installation Procedure
546
8-59-6 Set up WIRELESS LAN
546
8-59-7 Functional Test
546
Chapter 9
555
Renewal Parts
555
Section 9-1 Overview
555
9-1-1 Purpose of Chapter 9
555
Section 9-2 List of Abbreviations
557
Section 9-3 Parts List Groups
558
Section 9-4 Plastics Covers (Front/Sides/Rear)
559
Section 9-5 LCD Monitor
561
Section 9-6 OPIO
562
Section 9-7 Nest Box Parts
565
Section 9-8 Mechanical Parts
567
Section 9-9 Options
569
Section 9-10 Optional Peripherals and Accessories
571
9-10-1 Printers and options
571
Section 9-11 System Manuals
573
Section 9-12 Probes
574
9-12-1 2D-Probes - Curved Array Transducers
574
9-12-2 2D-Probes - Linear Array Transducer
575
9-12-3 Real-Time 4D Volume Probes
576
9-12-4 2D-Probes - Phased Array Transducers
577
9-12-5 Probe-Compatibility
578
Section 9-13 Power Cord
579
Section 9-14 Biopsy Needle Guide
581
Chapter 10
583
Care & Maintenance
583
Section 10-1 Overview
583
10-1-1 Care and Maintenance Inspections
583
10-1-2 Purpose of Chapter 10
583
Section 10-2 Why do Maintenance
584
10-2-1 Quality Assurance
584
Section 10-3 Maintenance Task Schedule
584
10-3-1 How often should care & maintenance tasks be performed?
584
Section 10-4 Tools Required
587
Section 10-5 Tools Required
589
10-5-1 Special Tools, Supplies and Equipment
589
10-5-1-1 Specific Requirements for Care & Maintenance
589
Section 10-6 System Maintenance
590
10-6-1 Preliminary Checks
590
10-6-2 Functional Checks
591
10-6-2-1 System Checks
591
10-6-2-2 Peripheral/Option Checks
592
10-6-3 Input Power
592
10-6-3-1 Mains Cable Inspection
592
10-6-4 Cleaning
592
10-6-4-1 General Cleaning
592
10-6-5 Physical Inspection
593
10-6-6 Optional Diagnostic Checks
593
10-6-7 Probe Maintenance
594
10-6-7-1 Probe Related Checks
594
10-6-7-2 Basic Probe Care
594
10-6-7-3 Basic Probe Cleaning and/or Disinfection
594
10-6-7-4 Disinfection by means of the RIC-Holder
595
Section 10-7 Using a Phantom (Optional)
596
Section 10-8 Electrical Safety Tests
596
10-8-1 Safety Test Overview
596
10-8-2 GEHC Leakage Current Limits for Voluson™ P8/Voluson™P6
597
10-8-3 Outlet Test - Wiring Arrangement - USA & Canada
601
10-8-4 Grounding Continuity
602
10-8-4-1 Meter Procedure
602
10-8-5 Enclosure Leakage Current Test
603
10-8-5-1 Definition
603
10-8-5-2 Generic Procedure
603
10-8-5-3 Data Sheet for Enclosure Leakage Current
605
10-8-6 Earth Leakage Current Test
605
10-8-6-1 Definition
605
10-8-6-2 Generic Procedure
606
10-8-7 Type CF Patient Leakage Current Test - ECG Leads
607
10-8-7-1 Definition
607
10-8-7-2 Generic Procedure
607
10-8-8 Type BF Patient Leakage Current Test - Probe
608
10-8-8-1 Definition
608
10-8-8-2 Generic Procedure on Leakage Current
609
10-8-9 Type CF Patient Auxiliary current - ECG Lead to Probe
609
10-8-10 Type BF Patient Leakage current - Mains to Probe
610
10-8-11 Type CF Patient Leakage current - Mains to ECG lead
610
10-8-12 Total Patient leakage current : Type CF probe to ground(Only for Europe)
611
10-8-12-1 Definition
611
10-8-12-2 Generic Procedure for measurement
611
10-8-13 Total Patient leakage current : Mains to Type CF probe (Only for Europe)
612
Section 10-9 When There's Too Much Leakage Current...
613
10-9-1 Earth and/or Enclosure Fails
613
10-9-2 Probe Fails
613
10-9-3 Peripheral Fails
613
10-9-4 Still Fails
613
10-9-5 New Unit
613
10-9-6 ECG Fails
613
Other manuals for GE Voluson P6
Service Manual
553 pages
Technical Publication
127 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GE Voluson P6 and is the answer not in the manual?
Ask a question
GE Voluson P6 Specifications
General
Brand
GE
Model
Voluson P6
Category
Medical Equipment
Language
English
Related product manuals
GE Voluson P8
620 pages
GE Voluson P6 BT16
612 pages
GE Voluson P8 BT16
612 pages
GE Voluson P6 BT18
620 pages
GE Voluson E8
432 pages
GE Voluson E10
127 pages
GE Voluson S10
127 pages
GE Voluson 730
270 pages
GE Voluson Swift
344 pages
GE Voluson 730Pro
480 pages
GE Voluson E Series
356 pages
GE Voluson E8 Expert
432 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
