69
4.4 REGULATION SECTION
Regulationcardisfactorysetaccordingtothedevicetype.
Whentheregulationcardissuppliedasasparepart,disposetheS15switchesforthecorrespondingsizeandS4
toadaptthetachogeneratorfeedbackvoltage!
4.4.1 R-TPD32-EV Regulation Card
ENC 1 ENC 2
21 30
110
31 42
11 20
RS485

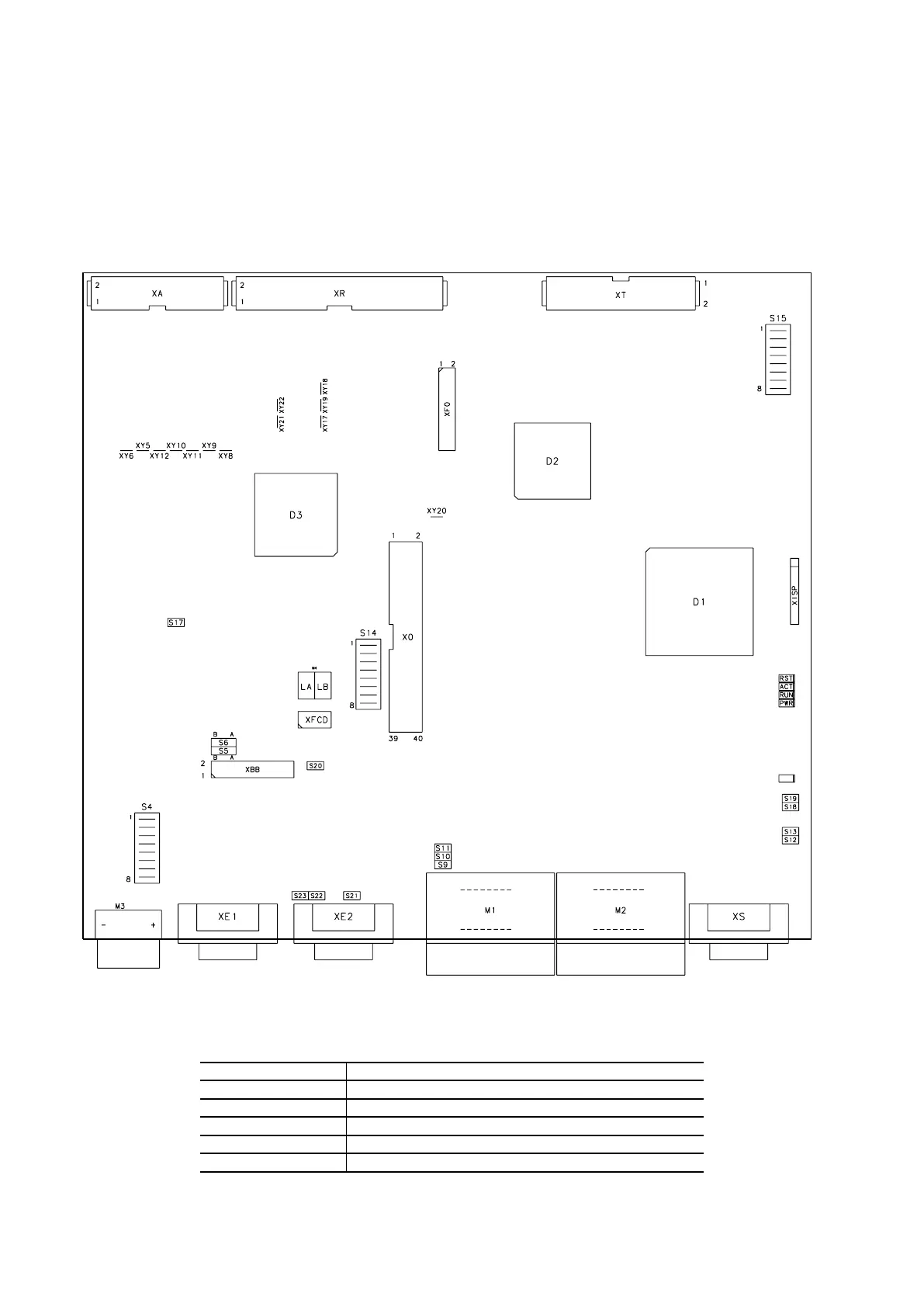

Figure 4.4.1: R-TPD32-EV regulation card
Table 4.4.1: LEDs on the R-TPD32-EV card
Designation Function
PWR ON when the +5 V voltage is present at the right value
RST ON when the signal RST is active
RS485 ON when the RS485 interface is supplied
ACT It is lit when the SCR driving system is active
RUN The LED blinks during the regulation phase
