Gigabyte GA-945PL-S3 User Manual

GA-945PL-(D)S3 (rev. 2.0) Motherboard - 68 -
English

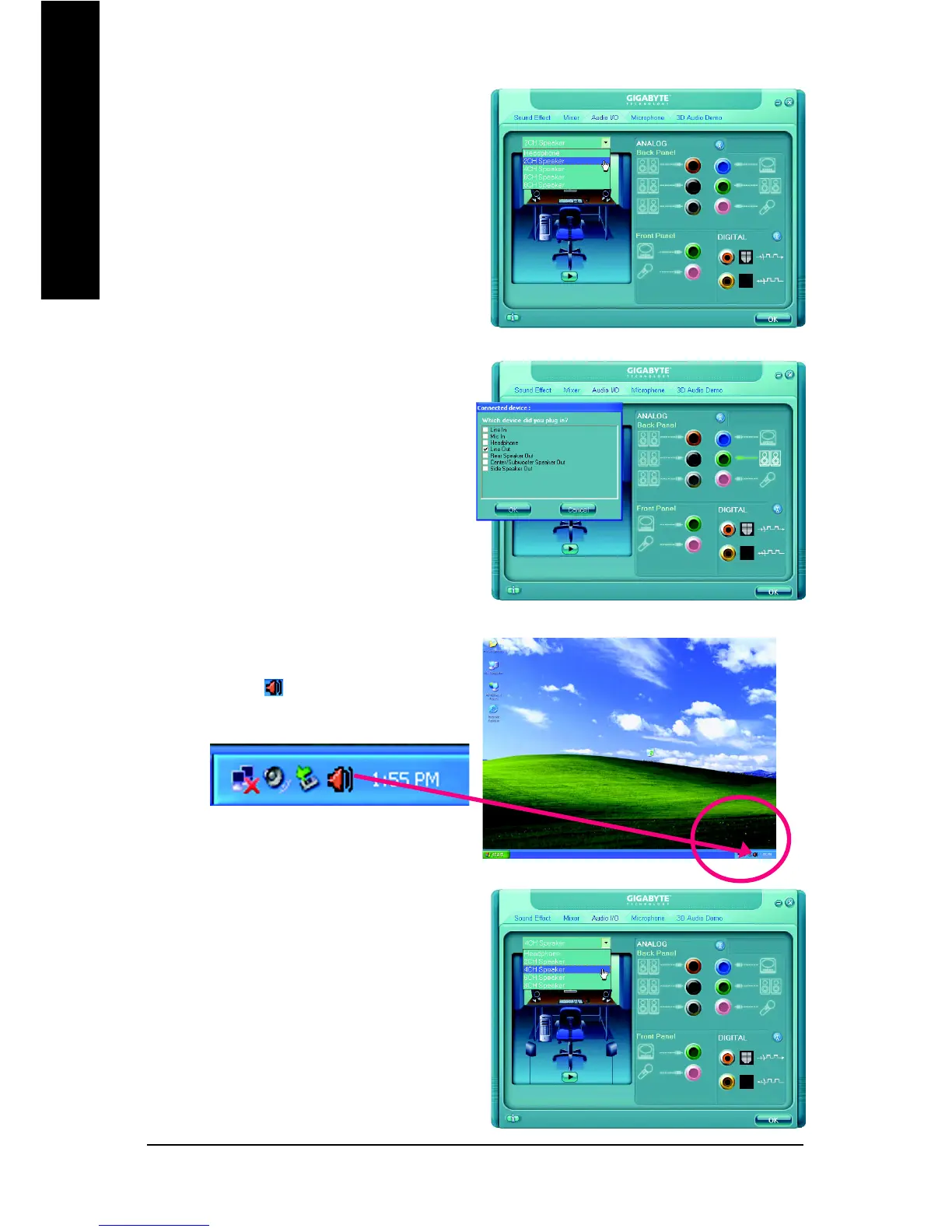

STEP 3:
After a speaker or headphone is plugged into the
rear Line Out jack, a small window will pop up
and ask you what type of equipment is connected.
Choose Headphone or Line Out depending on
the device connected and click OK. The
2-channel audio setup is completed.
STEP 2:
In the Audio Control Panel, click the Audio I/O
tab. In the upper left list, click 2CH Speaker.
4 Channel Audio Setup
STEP 1 :
After installation of the audio driver, you should find
an Audio Manager icon in your system tray (you
can also find the icon in Control Panel). Double-
click the icon to open the Audio Control Panel.
STEP 2:
In the Audio Control Panel, click the Audio I/O
tab. In the upper left list, click 4CH Speaker.

Gigabyte GA-945PL-S3 Specifications

General

Number of memory slots	4
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
LAN controller	Realtek RTL8111B
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	190 mm
Width	305 mm
