Gigabyte GA-EP31-DS3L User Manual

Hardware Installation- 21 -

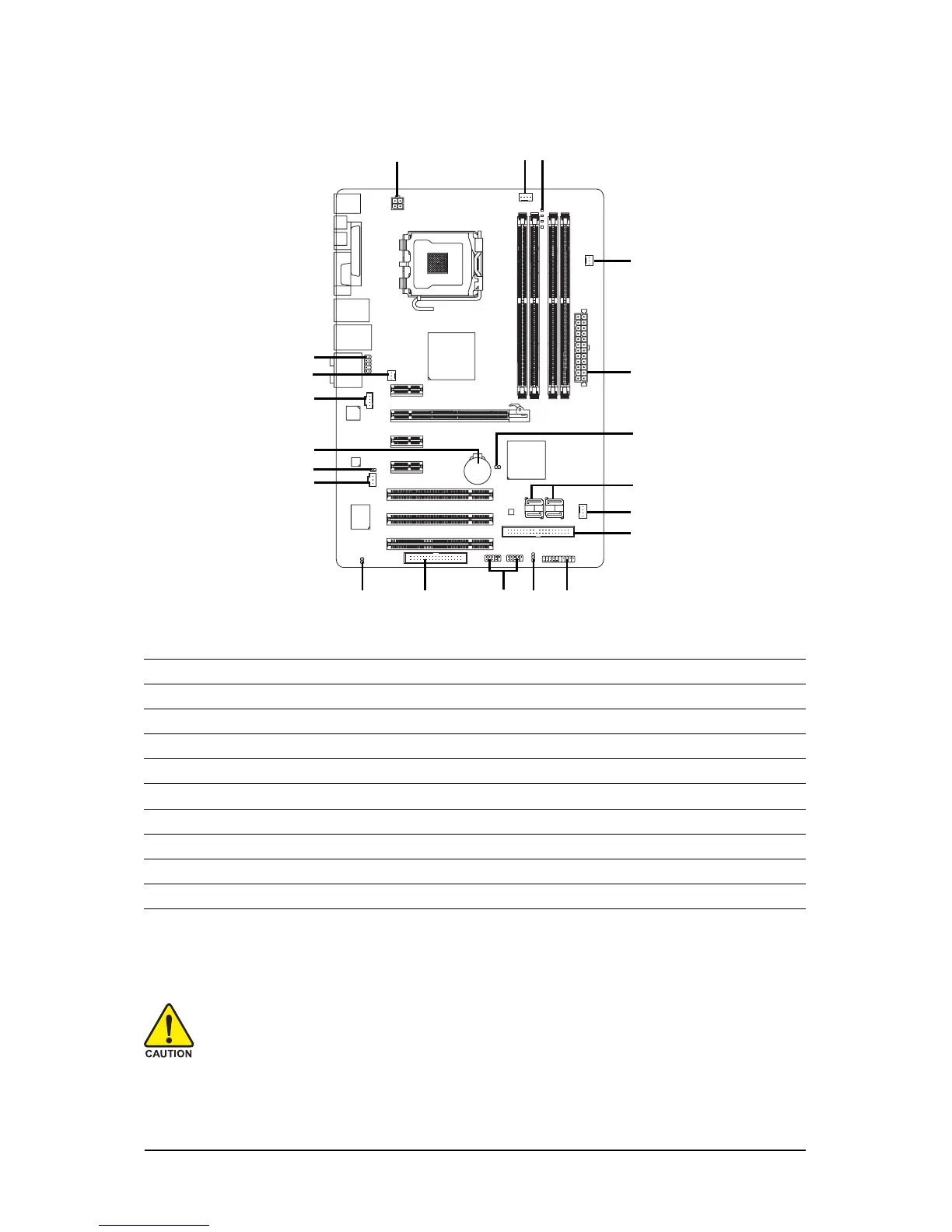

1-7 Internal Connectors
1
2
3
4
5
6
7
8
9
10 12
11
13
14
15
1617
18
19
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1
5) SYS_FAN2
6) PWR_FAN
7) FDD
8) IDE1
9) SATAII0/1/2/3
10) PWR_LED
11) F_AUDIO
12) F_PANEL
13) CD_IN
14) SPDIF_I
15) SPDIF_O
16) F_USB1/F_USB2
17) CI
18) CLR_CMOS
19) BAT
20) PHASE LED
20

Gigabyte GA-EP31-DS3L Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
PS/2 ports quantity	2
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
PCI Express x1 slots	3
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
Trial software	Norton Internet Security

Weight and Dimensions

Depth	210 mm
Width	305 mm
