GA-EP35-DS3R/DS3 Motherboard - 26 -

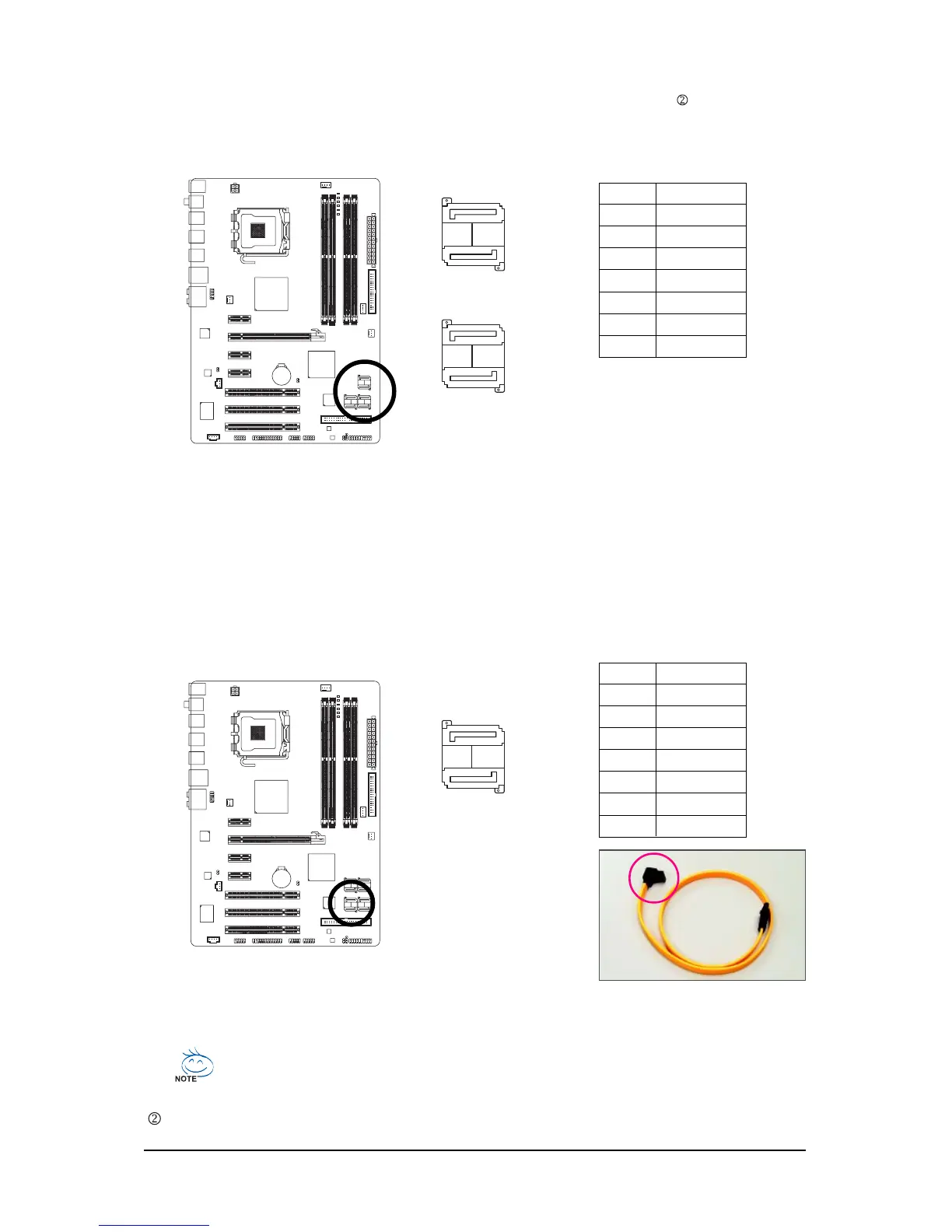

9) SATAII0/1/4/5 (SATA 3Gb/s Connectors, Controlled by ICH9, Orange)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7
1
7
1
SATAII0
SATAII1
7
17
1
SATAII4
SATAII5
10) GSATAII0/1 (SATA 3Gb/s Connectors, Controlled by GIGABYTE SATA2, Purple)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The GIGABYTE SATA2 controller
supports RAID 0 and RAID 1. Refer to Chapter 5, "Configuring SATA Hard Drive(s)," for instructions
on configuring a RAID array.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7
17
1
GSATAII0
GSATAII1
Please connect the L-shaped end of the
SATA 3Gb/s cable to your SATA hard drive.
A RAID 0 or RAID 1 configuration requires at least two hard drives. If more than two hard
drives are to be used, the total number of hard drives must be an even number.
Only for GA-EP35-DS3.

Gigabyte GA-EP35-DS3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	6
Special features	-@BIOS -Download Center -Q-Flash -EasyTune -Install -Recovery2
USB 2.0 ports quantity	8
Audio chip	Realtek ALC889A
Audio output channels	7.1 channels
Motherboard form factor	ATX
LAN controller	Realtek RTL8111B
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	210 mm
Width	305 mm
