Appendix- 101 -

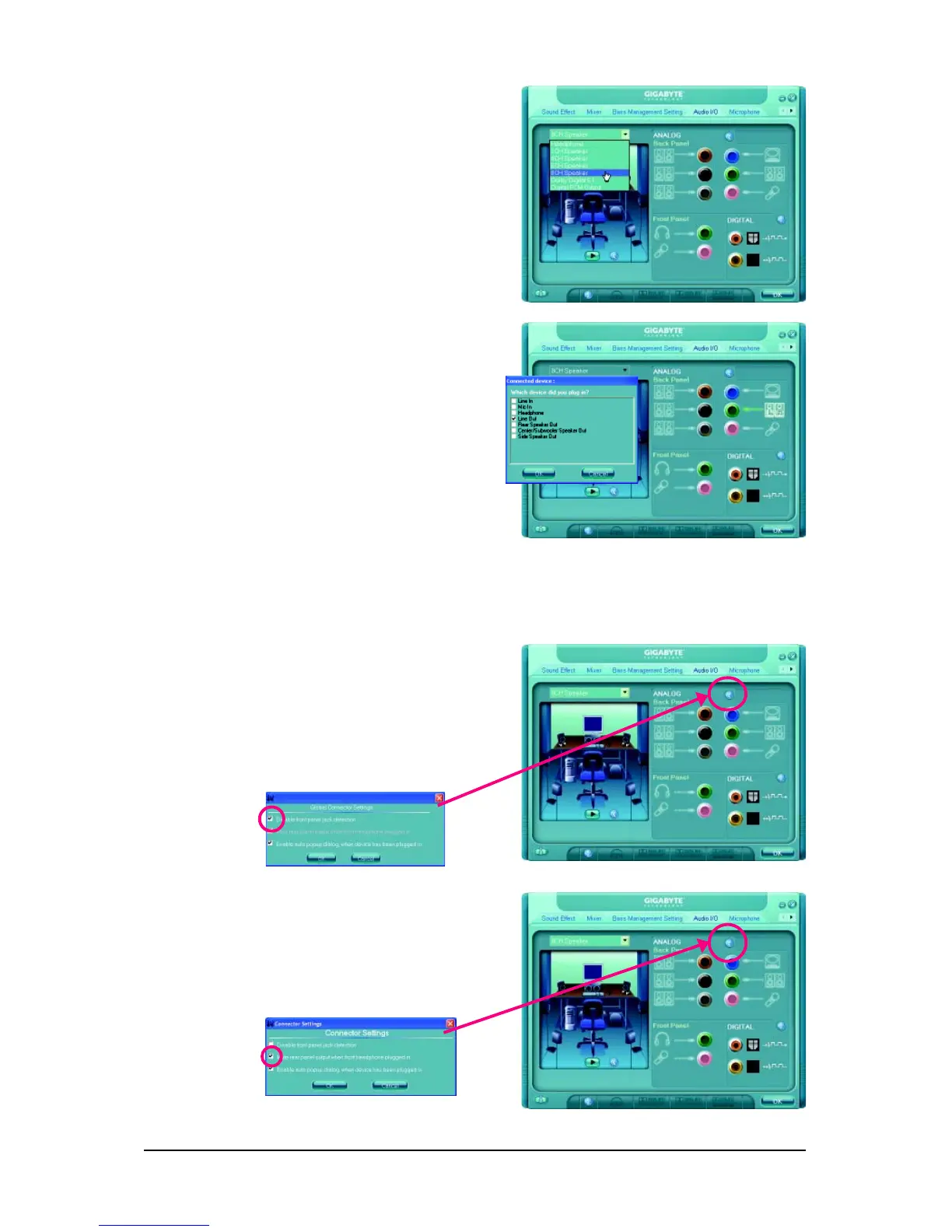

Step 2:
Click the Audio I/O tab. In the speaker list on the
left, select 2CH Speaker, 4CH Speaker, 6CH
Speaker, or 8CH Speaker according to the type of
speaker configuration you wish to set up.
Step 3:
Everytime you connect an audio device to an audio
jack, the Connected device box appears. Select
the device according to the type of device you connect.
Then click OK to complete the configuration.
B. Configuring Sound Effect:
You may configure an audio environment on the Sound Effect tab.
C. Activating an AC'97 Front Panel Audio Module:
If you want to connect an AC'97 front panel audio
module, click the tool icon on the Audio I/O tab On
the Global Connector Settings box, select the Dis-
able front panel jack detection check box. Click
OK to activiate the AC'97 functionality.
D. Muting the Back Panel Audio (For HD Audio Only):
Click the tool icon on the Audio I/O tab. On the
Connector Settings box, select the Mute rear
panel output when front headphone plugged
in check box. Click OK to complete.

Gigabyte GA-EP45-DS3 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	8
VGA (D-Sub) ports quantity	0
BIOS type	AWARD
BIOS memory size	64 Mbit
Audio chip	Realtek ALC889A
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
