Gigabyte GA-M61PME-S2P User Manual

Hardware Installation- 23 -

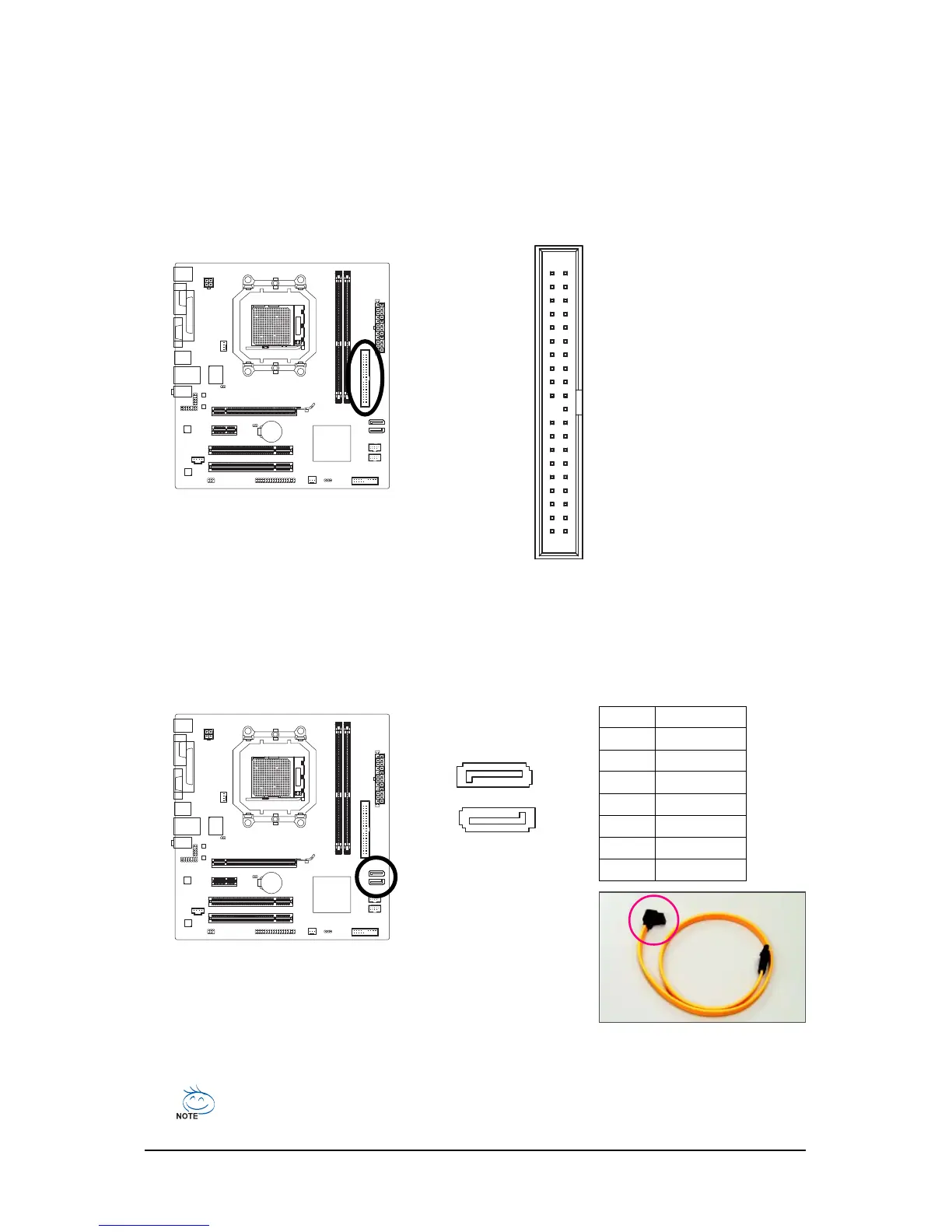

6) IDE (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before
attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE
devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for
example, master or slave). (For information about configuring master/slave settings for the IDE
devices, read the instructions from the device manufacturers.)
2
40
1
39
7) SATA2_0/SATA2_1 (SATA 3Gb/s Connectors)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The NVIDIA
®
GeForce 6100/
nForce 430 chipset controller supports RAID 0 and RAID 1. Refer to Chapter 5, "Configuring SATA
Hard Drive(s)," for instructions on configuring a RAID array.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
A RAID 0 or RAID 1 configuration requires two hard drives.
Please connect the L-shaped end
of the SATA 3Gb/s cable to your
SATA hard drive.
SATA2_1
71
SATA2_0
17

Gigabyte GA-M61PME-S2P Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of Parallel ATA connectors	1
Special features	@BIOS Download Center Q-Flash Virtual Dual BIOS EasyTune(Note 4) Xpress Install Xpress Recovery2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP
Bundled software	Norton Internet Security (OEM version)
LAN controller	Realtek RTL8201CL
Networking features	10/100 Mbit
Graphics card	GeForce 6100

Weight and Dimensions

Depth	225 mm
Width	244 mm
