GA-MA790XT-UD4P Motherboard - 18 -

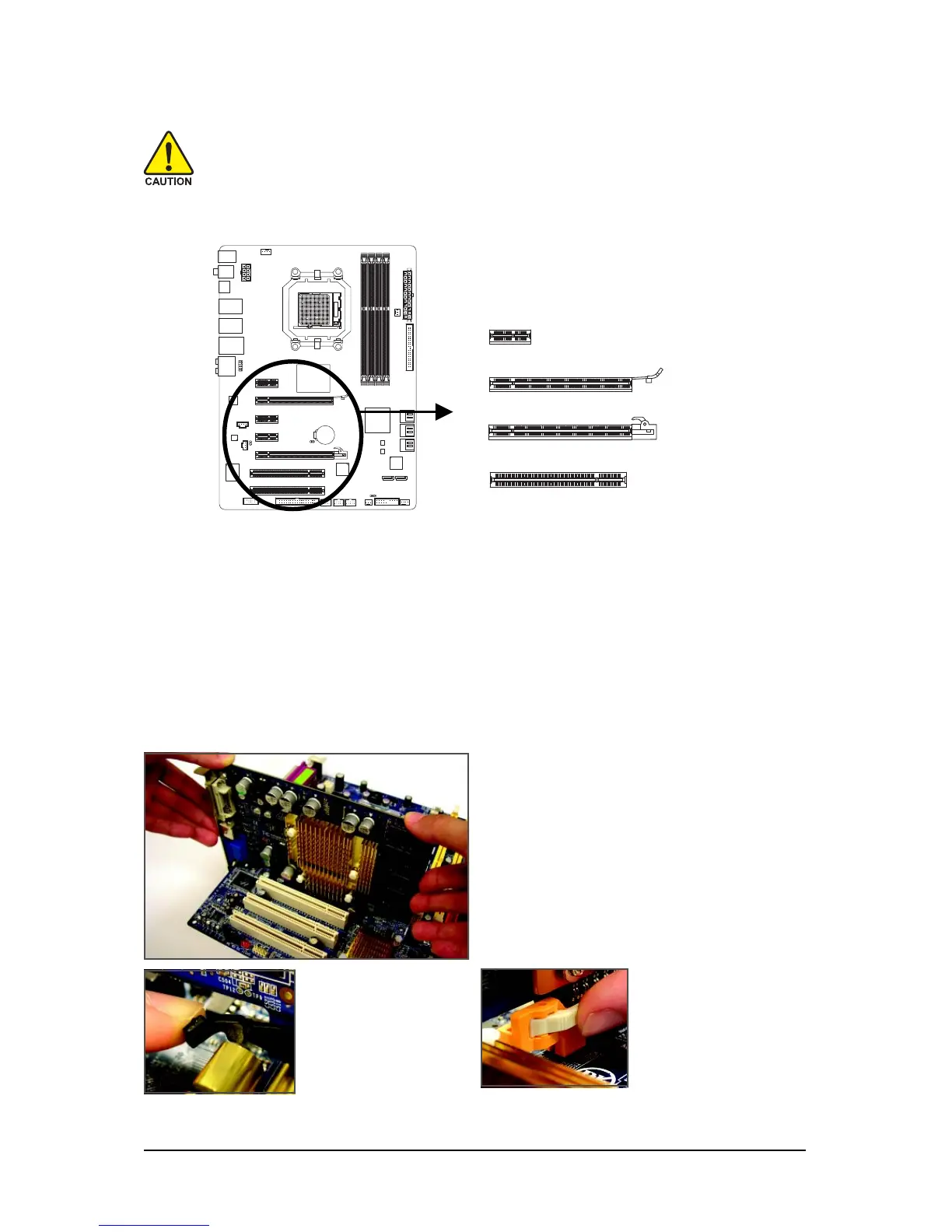

1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
PCI Express x1 Slot
PCI Slot
PCI Express x16 Slot (PCIEX16_1)
PCI Express x16 Slot (PCIEX8_1)
Example: Installing and Removing a PCI Express Graphics Card:
• Installing a Graphics Card:
Gently push down on the top edge of the card
until it is fully inserted into the PCI Express slot.
Make sure the card is securely seated in the
slot and does not rock.
• Removing the Card from
the PCIEX16_1 slot:
Gently push back on
the lever on the slot
and then lift the card
straight out from the slot.
• Removing the Card
from the PCIEX8_1 slot:
Press the white latch at
the end of the PCI Ex-
press slot to release the
card and then pull the
card straight up from the
slot.
