Gigabyte GA-MA790XT-UD4P User Manual

Hardware Installation- 23 -

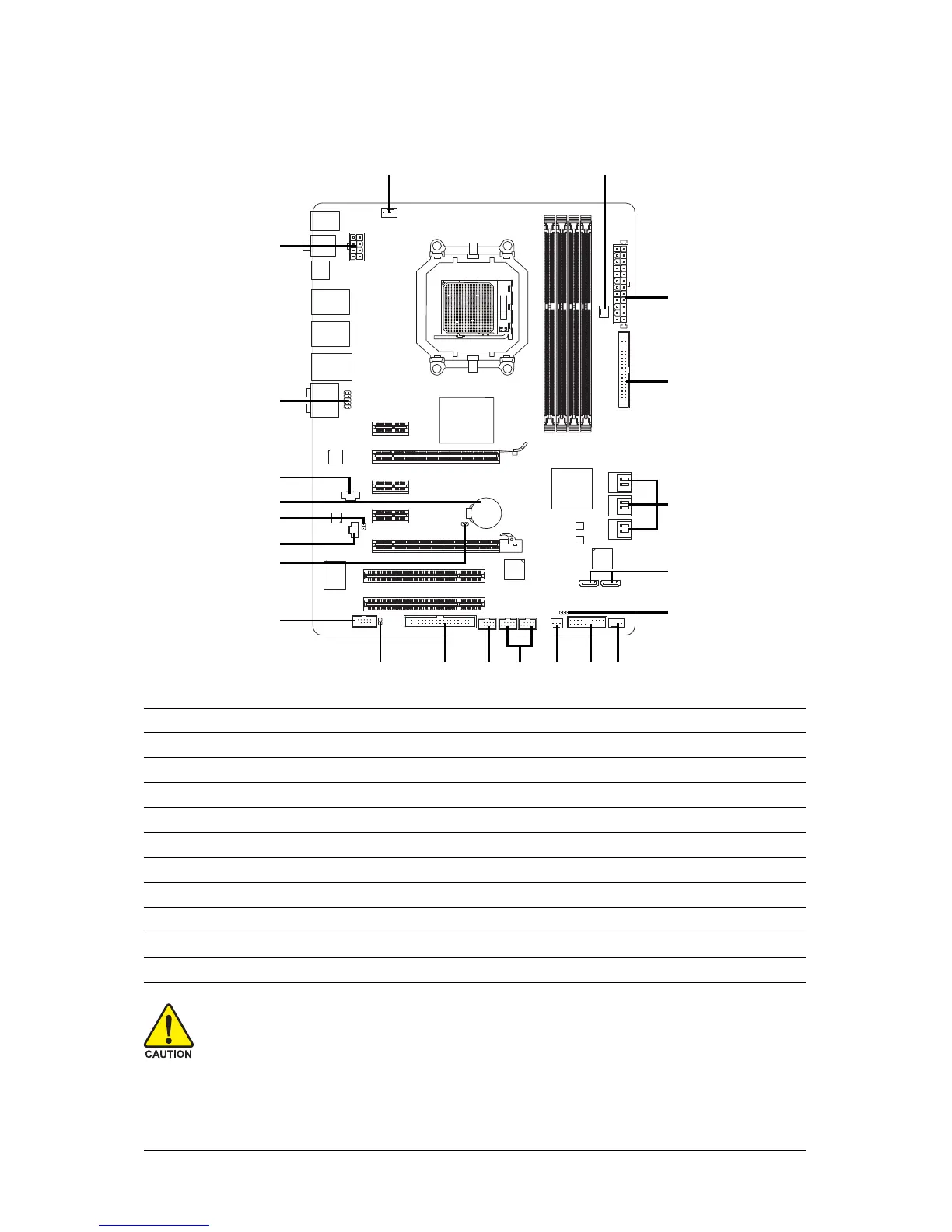

1-9 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1
2
3
8
11
12
21
4
7
14
16
5
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0 / 1 / 2 / 3 / 4 / 5
9) GSATA2_0/GSATA_1
10) PWR_LED
11) F_PANEL
12) F_AUDIO
13) CD_IN
14) SPDIF_IN
15) SPDIF_OUT
16) F_USB1 / F_USB2
17) F_1394
18) COM
19) CI
20) CLR_CMOS
21) BATTERY
4
6
10
9
17
18
19
20
13
15

Gigabyte GA-MA790XT-UD4P Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	2
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	8
Controller interface type	SATA
Controller 2nd interface type	IDE
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Audio chip	Realtek ALC889
Motherboard chipset	AMD 790X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/ XP
PCI Express x1 slots	3
RAID levels	0, 1, 5, 10, JBOD
LAN controller	Realtek RTL8111DL
Networking features	10/100/1000 Mbit/s

Weight and Dimensions

Depth	233 mm
Width	305 mm
