Gigabyte GA-X79-UD5 User Manual

- 85 - Appendix
 
A. Installing SATA hard drive(s) in your computer
Attach one end of the SATA signal cable to the rear of the SATA hard drive and the other end to available
SATA port on the motherboard. The Marvell 88SE9172 SATA controllers control the onboard GSATA3 6~9
and eSATA connectors. Then connect the power connector from your power supply to the hard drive.


Step 1:
Turn on your computer and press <Delete> to enter BIOS Setup during the POST. To create RAID, go to
Peripherals and set GSATA Controller on the   submenu to RAID
Mode (Figure 2) (AHCI mode by default). If you do not want to create RAID, set this item to IDE Mode or
AHCI Mode.

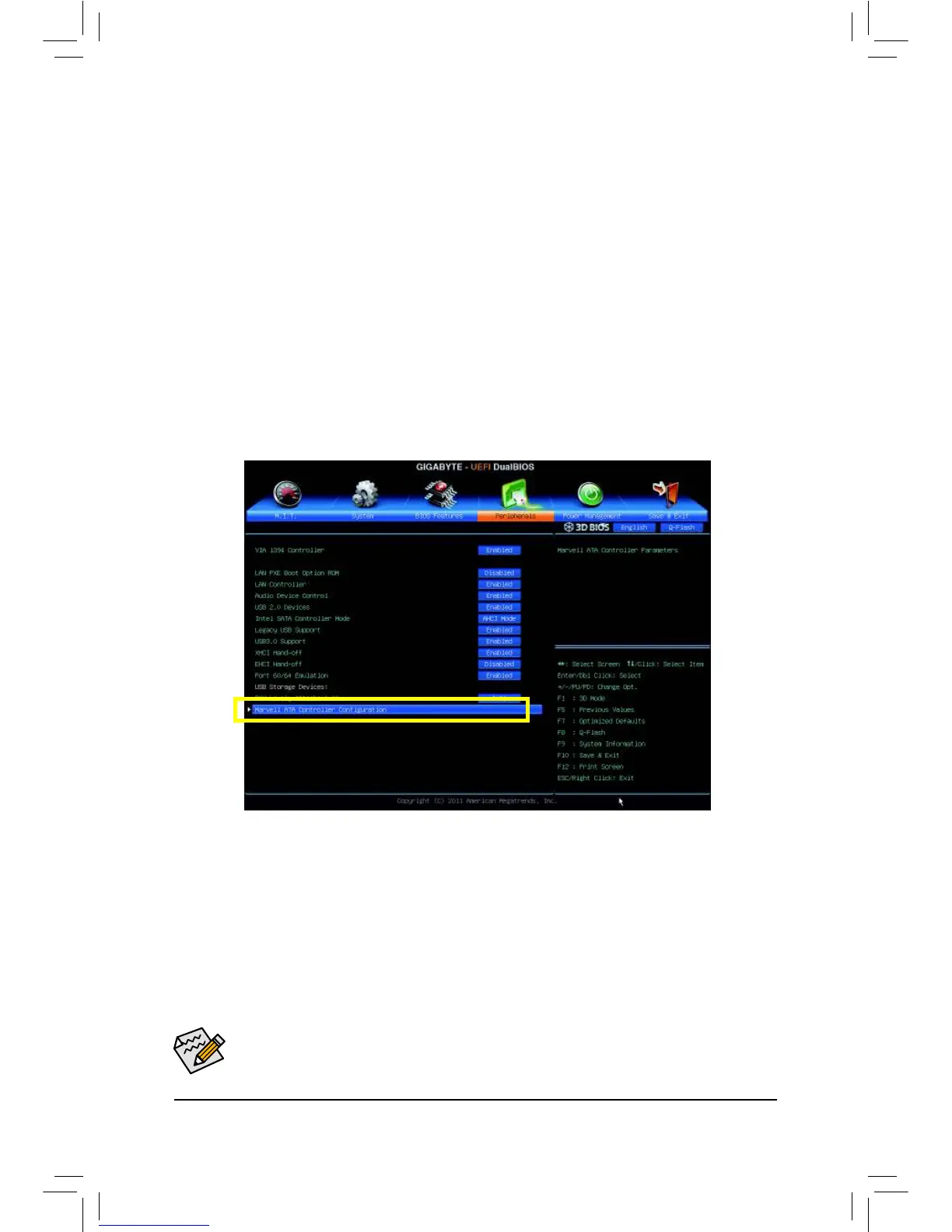

Figure 1
The BIOS Setup menus described in this section may differ from the exact settings for your moth-
erboard. The actual BIOS Setup menu options you will see shall depend on the motherboard you
have and the BIOS version.

Gigabyte GA-X79-UD5 Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Quad-channel
Number of memory slots	8
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1200, 1300, 1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2133 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i7
USB 2.0 connectors	3
Number of SATA II connectors	4
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Headphone outputs	5
eSATA ports quantity	2
USB 2.0 ports quantity	7
Audio chip	Realtek ALC898
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Compatible operating systems	Windows 7/Vista/XP
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	2-Way SLI, 3-Way SLI, Hybrid CrossFireX
PCI Express slots version	3.0
Wi-Fi standards	Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	264 mm
Width	305 mm
