Gigabyte GA-Z68AP-D3 User Manual

- 21 - Hardware Installation
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
First make sure your devices are compliant with the connectors you wish to connect. •
Before installing the devices, be sure to turn off the devices and your computer. Unplug the •
power cord from the power outlet to prevent damage to the devices.
After installing the device and before turning on the computer, make sure the device cable has •
been securely attached to the connector on the motherboard.
1
2
5
10
3 16
14
4
6
13
9
114 1512

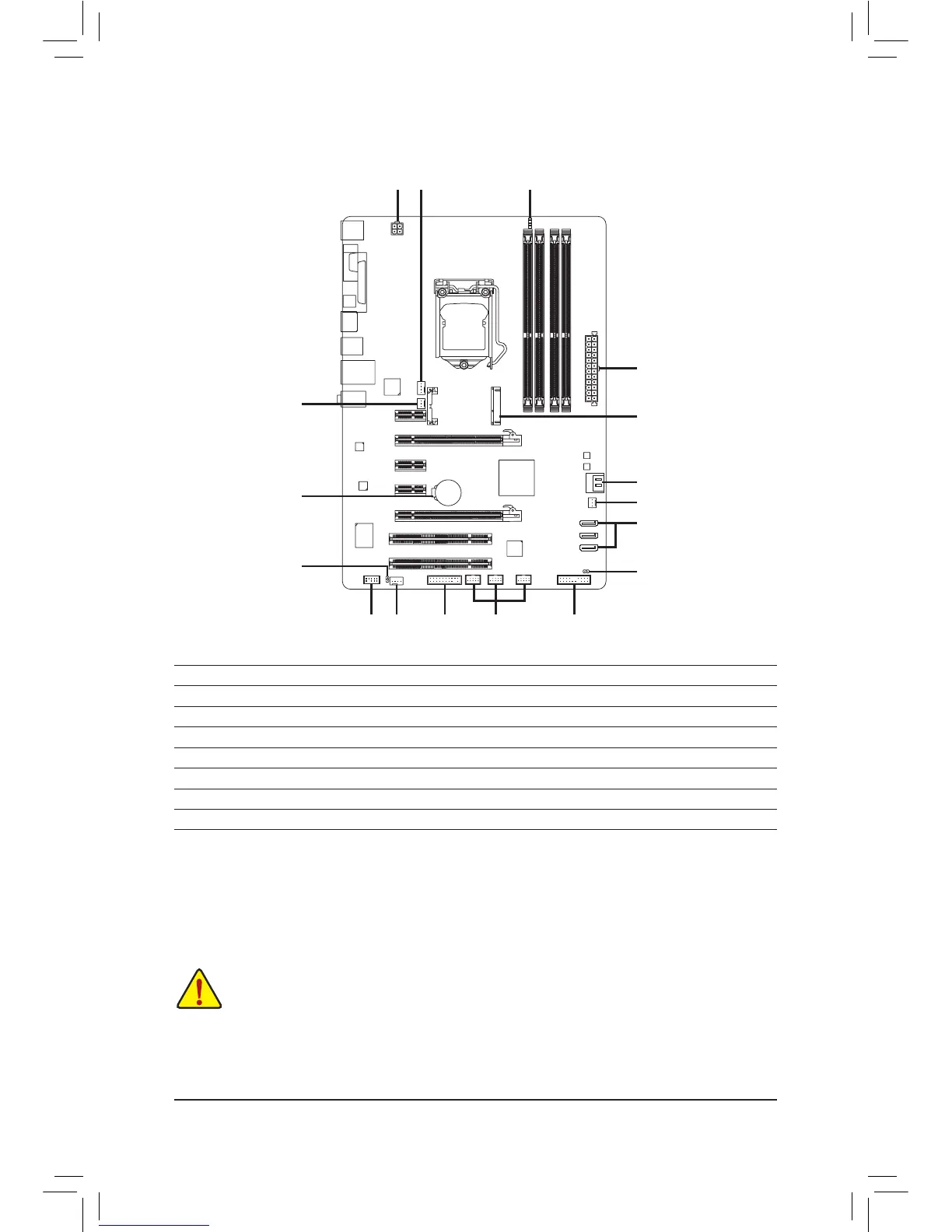

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/2
5) PWR_FAN
6) BAT
7) SATA3 0/1
8) SATA2 2/3/4
9) mSATA
10) CLR_CMOS
11) F_PANEL
12) F_AUDIO
13) SPDIF_O
14) F_USB1/F_USB2/F_USB3
15) TPM
16) PHASE LED
8
7

Gigabyte GA-Z68AP-D3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
Parallel processing technology support	Quad-GPU CrossFireX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
LAN controller	Realtek RTL8111E
Networking features	10/100/1000 Mbps
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b

Weight and Dimensions

Depth	215 mm
Width	305 mm
