Gigabyte Z690M DS3H DDR4 User Manual

- 12 -

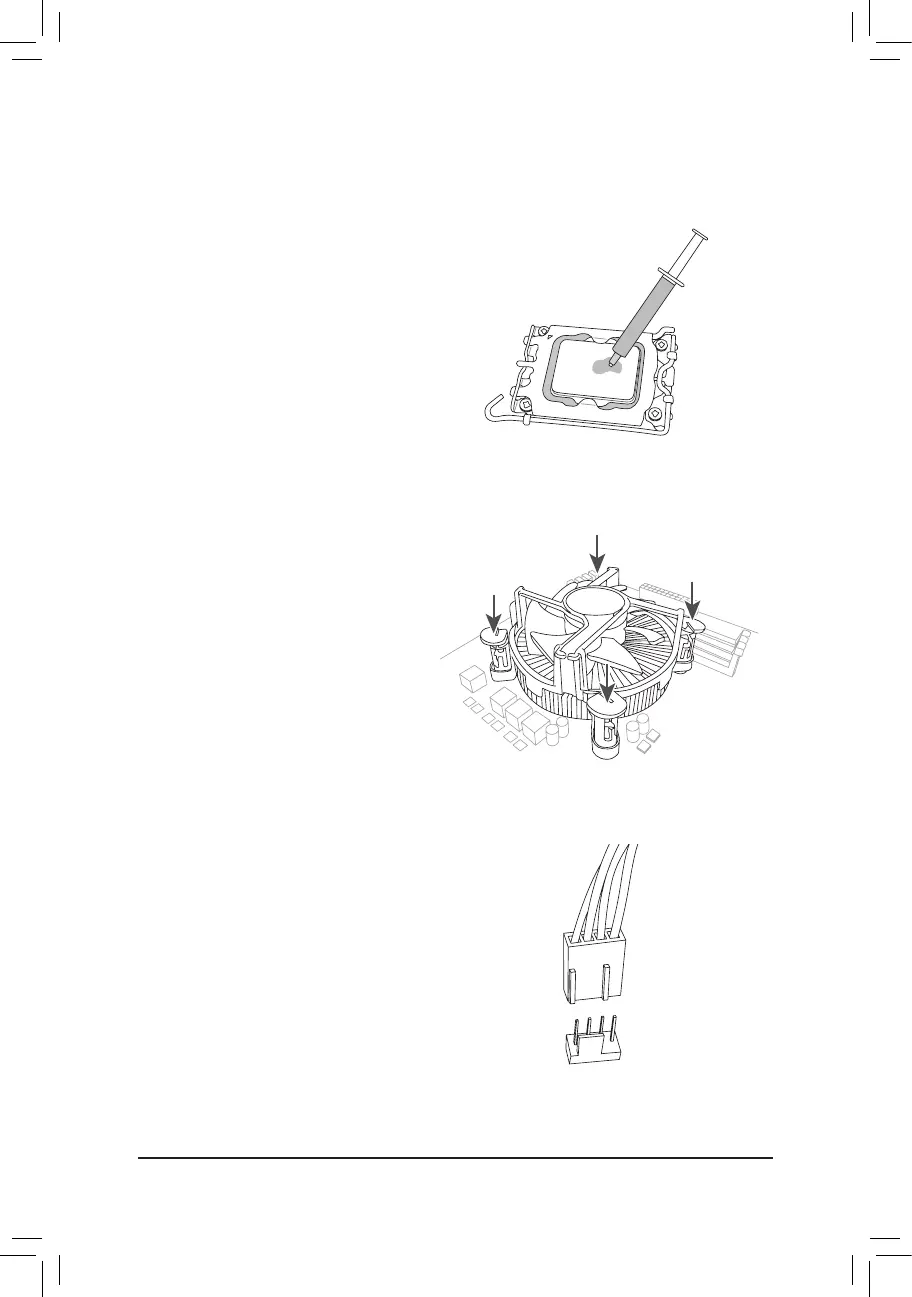

C. Installing the CPU Cooler
Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the
CPU cooler to be used. Refer to the user's manual for your CPU cooler.)
u
v
Apply an even and thin layer of thermal
grease on the surface of the installed CPU.
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
j
j
k
k
w
Finally, attach the power connector of
the CPU cooler to the CPU fan header
(CPU_FAN) on the motherboard.
CPU_FAN

Gigabyte Z690M DS3H DDR4 Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Maximum number of SMP processors	1
Component for	PC
Motherboard chipset	Intel Z690
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
Cables included	SATA
Bundled software	Norton Internet Security Realtek Gaming LAN Bandwidth Control Utility
Drivers included	Yes
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	2.7
DisplayPort version	1.2
DVI-D ports quantity	0
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Number of SATA III connectors	4
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	-
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz

Weight and Dimensions

Width	244 mm
