24. Vehicle speed signal (Brown-Red)
27. Engine stop switch (Green)
28. Starter button (Grey-White)
32. Lambda probe (Grey-Red)
35. Roll-over sensor (Yellow)
38. Stand switch (White-Blue)

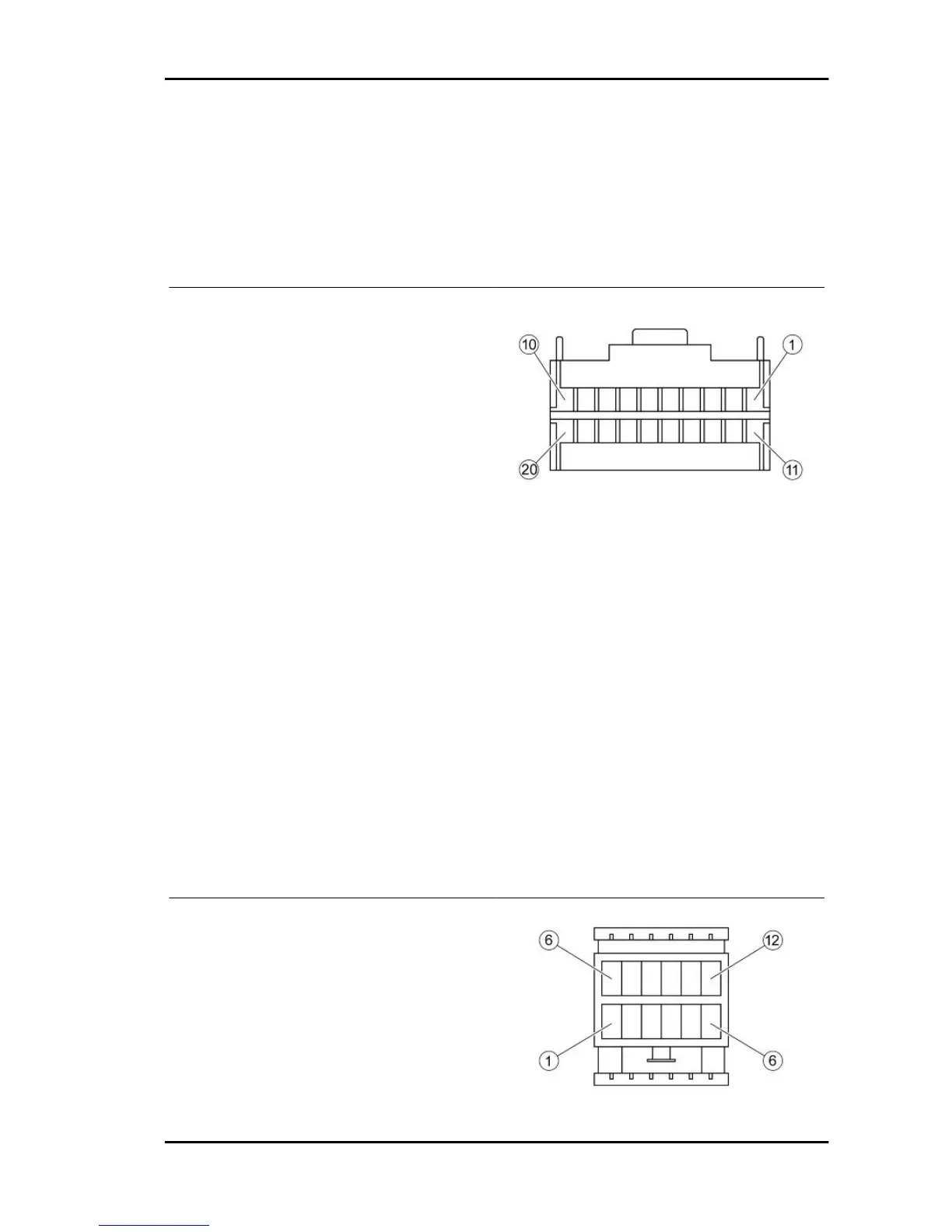

INSTRUMENT PANEL CONNECTOR «A»
1. Vehicle speed signal (Brown-Red)
2. Fuel level indicator (White-Green)
3. Water temperature sensor (Green-Yellow)
4. Water temperature sensor ground (Brown-
Black)
5. MODE remote button (Green)
6. Oil pressure warning light (Pink-White)
7. Left turn indicator warning light (Pink)
8. Right turn indicator warning light (White-Blue)
9. High-beam warning light (Purple)
10. Parking brake warning light (Sky Blue-Black)
11. Engine rpm signal (Brown)
12. Ambient temperature sensor (Yellow-Blue)
13. Ambient temperature sensor ground (White-
Yellow)
14. Engine disabled warning light (Sky Blue-Yel-
low)
15. Immobilizer warning light (Red-Green)
16. Engine check warning light (Brown-White)
17. Ground (Pink-Black)
18. Ground (Pink-Black)
19. Ground (Pink-Black)
INSTRUMENT PANEL CONNECTOR «B»
5. Live positive (Yellow-Black)
6. Battery positive (Red-Black)
11. Ground (Pink-Black)
12. Live positive (Yellow-Black)
GP 800 i.e. Electrical system
ELE SYS - 55
