Terminals setup

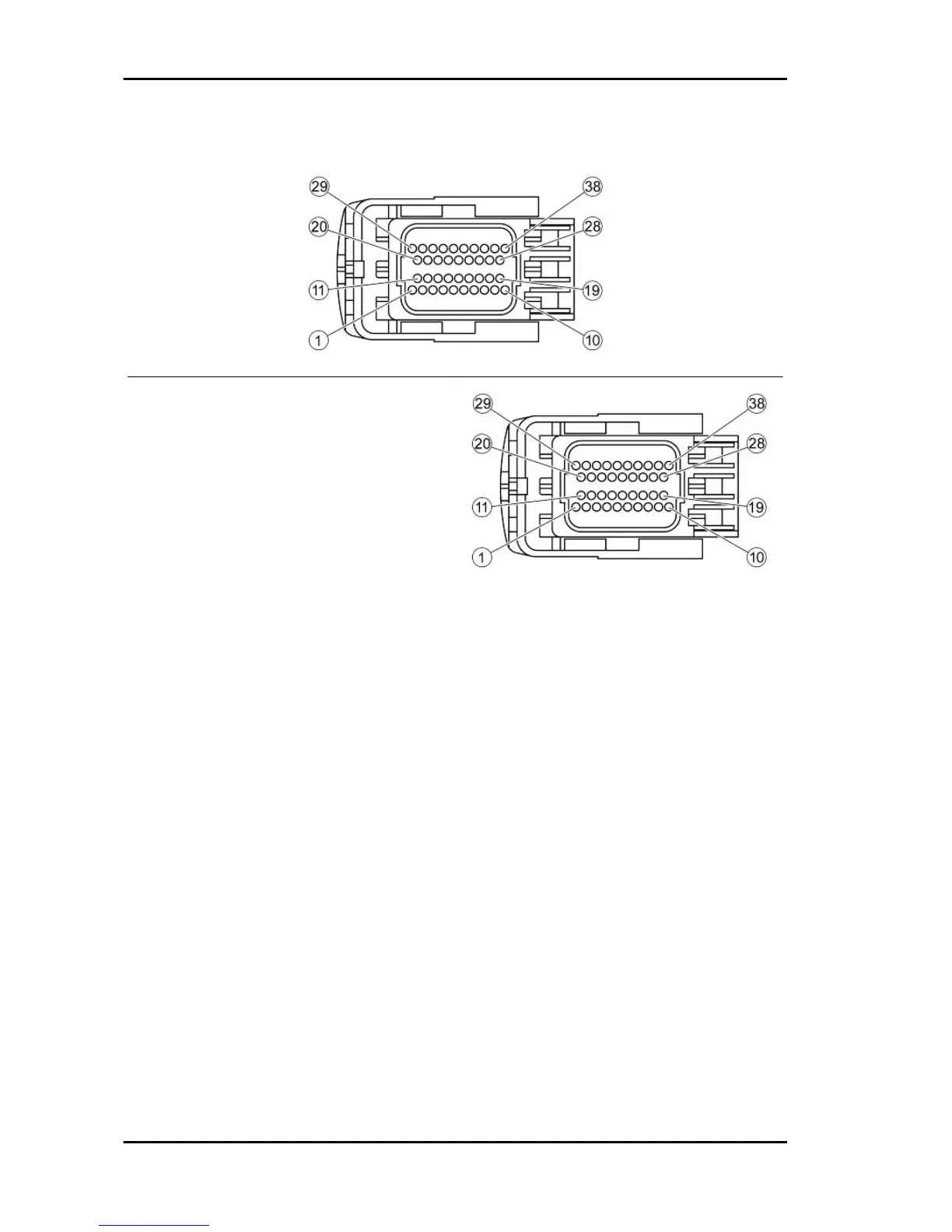

VEHICLE CONTROL UNIT CONNECTOR
1. Start-up remote control switch relay (Orange-
White)
4.Battery positive (White-Red)
6. Injection load relay (Black-Purple)
7. Immobilizer decoder (Orange)
8. Low-beam light relay (Yellow-Grey)
9. Rpm indicator (Brown)
11. Lambda probe (Purple)
13. Injection telltale light (Brown-Black)
14. Electric fan relay (Blue-Yellow)
16. Diagnostics socket (Purple-White)
17. Live positive (White-Black)
18. Engine disabled warning light (Sky Blue-Yel-
low)
22. Lambda probe (White-Green)
23. Stop lights (Grey-Green)
24. Vehicle speed signal (Brown-Red)
27. Engine stop switch (Green)
28. Starter button (Grey-White)
32. Lambda probe (Grey-Red)
35. Roll-over sensor (Yellow)
38. Stand switch (White-Blue)
ENGINE CONTROL UNIT CONNECTOR
3. Throttle valve potentiometer (Orange-Sky Blue)
5. Engine temperature (Grey-Green)
9. Idle adjustment motor (Sky Blue-Yellow)
10. Cylinder 2 HV coil (Sky Blue)
Injection GP 800 i.e.
INJEC - 6
