Glow-worm swift flow 80 Installation Instructions

7
221132B
3 F l u e a n d V e n t i l a t i o n
A
A
F
G
E
A
G
G
G
B,C
B,C
F
F
K
K
K
C
G
L
L
UNDER CAR PORT etc.
H,I
J
D
F
K

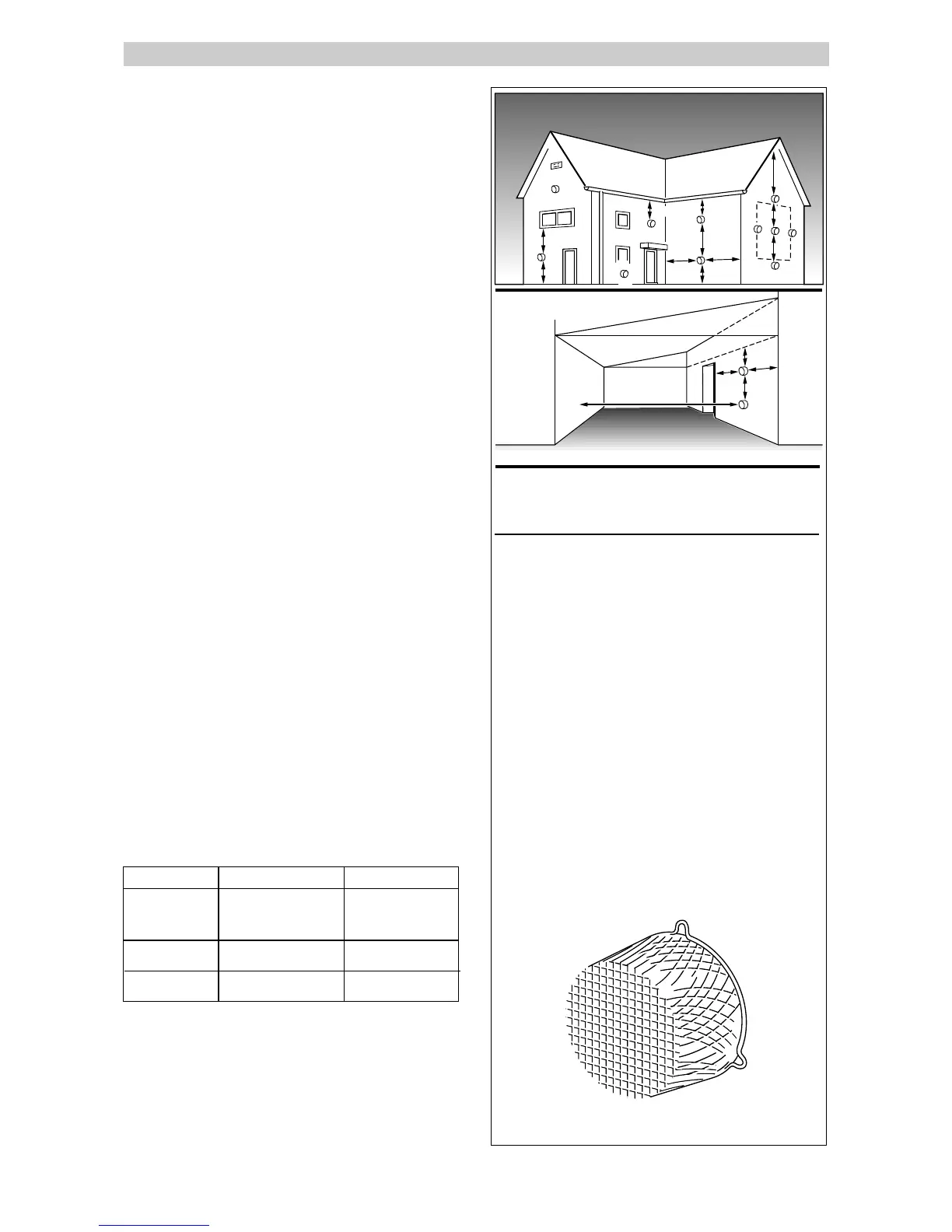

MINIMUM SITING DIMENSIONS FOR
FANNED FLUE TERMINALS
POSITION
MM
A DIRECTLY BELOW AN OPENABLE
WINDOW, AIR VENT, OR ANY
OTHER VENTILATION OPENING 300
B BELOW GUTTER, DRAIN/SOIL PIPE 75
C BELOW EAVES 200
D BELOW A BALCONY OR CAR PORT 200
E FROM VERTICAL DRAIN PIPES AND
SOIL PIPES 75
F FROM INTERNAL OR EXTERNAL
CORNERS 300
G ABOVE ADJACENT GROUND OR
BALCONY LEVEL 300
H FROM SURFACE FACING THE
TERMINAL 600
I FACING TERMINALS 1200
J FROM OPENING (DOOR/WINDOW)
IN CAR PORT INTO DWELLING 1200
K VERTICAL FROM A TERMINAL 1500
L HORIZONTALLY FROM A TERMINAL 300
MINIMUM
SPACING
2816
3.4 Internal Access Flue
The flue can be installed from inside the building, when
access to the outside wall face is not practicable.
An internal access kit is provided in the standard carton.
3.5 Timber Frame Buildings
If the boiler is to be installed in a timber frame building
seek advice from the local gas undertaking or from
Hepworth Heating Ltd.
3.6 Terminal Guard
A terminal guard is required if persons could come into
contact with the terminal or the terminal could be subject
to damage.
If a terminal guard is required, it must be positioned to
provide a minimum of 50mm clearance from any part of
the terminal and be central over the terminal.
The guard should be similar to that shown in diagram 3.6
and can be bought from:
Tower Flue Components Ltd
Morley Road
Tonbridge
Kent. TN9 1RA
their type K3.
3.7 Room Ventilation
Ventilation must be provided in accordance with the
rules in force in the countries of destination.
The boiler is room sealed, so where the boiler is fitted in
a room or space, a permanent air vent is not required.
3.8 Cupboard/Compartment Ventilation
If the boiler is to be fitted in a cupboard or compartment,
permanent high and low level air vents must be provided
for ventilation. The vents must have at least the effective
areas shown in Table 2.
Diagram 3.6
Low Vent 264cm
2
40in
2
132cm
2
20in
2
High Vent 264cm
2
40in
2
132cm
2
20in
2
TABLE 2
Position Air from Air Direct
of Room or from
Air Vent Internal space Outside
