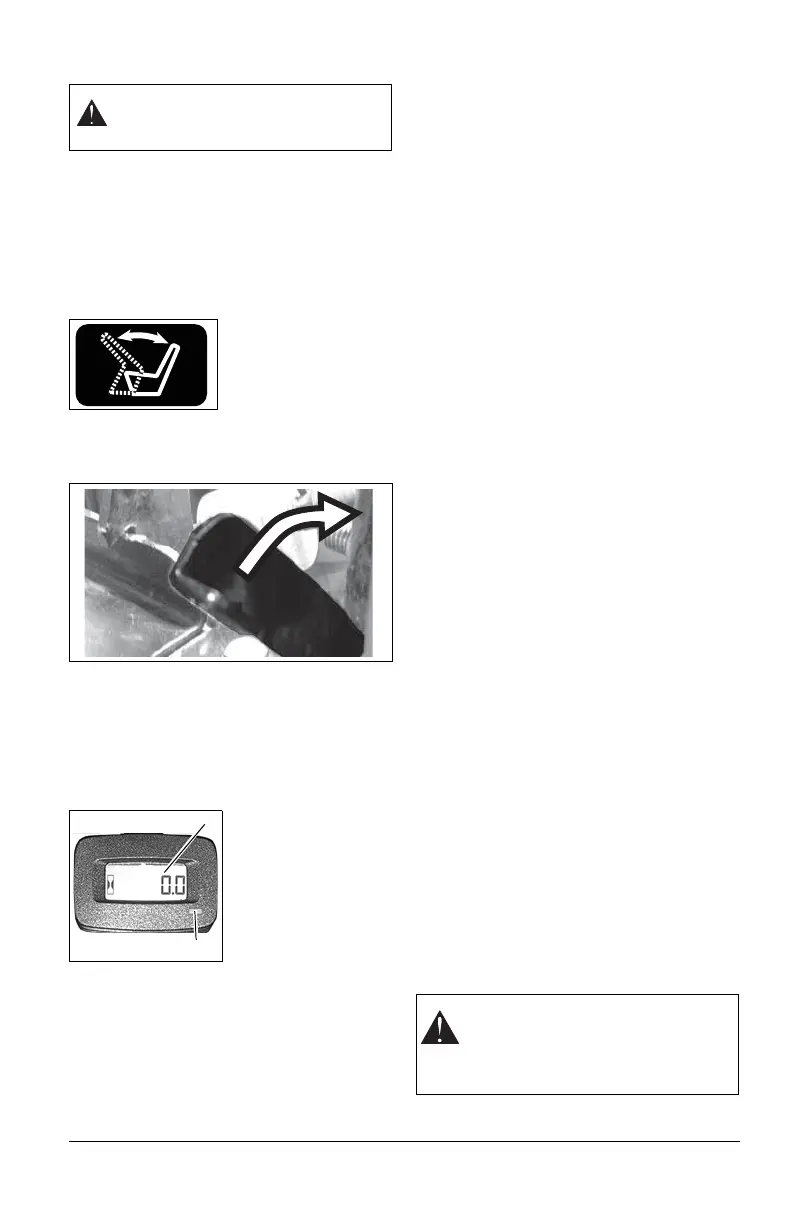

SEAT ADJUSTMENTS
To adjust seat forward or backward:
1. While seated, pull seat adjustment lever
outward and slide seat into desired
position.
2. Release lever and slide seat forward or
back to lock seat into position.
Tipping Seat Forward
1. Pull seat release
lever backward.
2. Tip seat forward.
NOTE: Seat release
lever is spring
activated. When
returning seat to upright position seat will
automatically lock in place.
HOUR METER
Measures and displays (1) the amount of time
engine has been run, time spent on jobs and
service intervals. This time cannot be
cleared.
Operation
Press and release the
toggle button (2) to
shift between different
functions.
Press and hold the
toggle button to reset
the timer or clear a
service message.
The hour meter has three functions:
1.Timer (TMR1)
Measures the time spent on individual jobs.
Press and hold the toggle button to reset the
timer to zero. TMR1 will then start measuring
engine run time until it is reset to zero again.
2.Service Alert
Displays maintenance interval reminders for:
• changing engine oil (CHG OIL)
• changing the hydraulic oil and filter
(CHG HYD OIL)
• servicing the air filter (SRV
AIRFILTER)
The alert starts counting down two hours
before the maintenance is due. The meter
flashes NOW when it reaches the
maintenance time.
Press and hold the toggle button to reset the
maintenance clock to zero after performing
the service.
3.Service Interval Presets
Hour meter is preset for recommended
service intervals.
Hydraulic oil and filter:
• First 75 hours, every 400 hours
thereafter.
Engine oil and filter:
• First 25 hours, every 100 hours
thereafter
NOTICE: The preset engine oil service
intervals in the hour meter are normal
recommended intervals. Specific engine
manufacturer’s recommendations may vary.
ROLLOVER PROTECTION
STRUCTURE (ROPS)
Frequently inspect ROPS and seat belt for
damage or loose hardware.
Use extreme care when working close to
fences, ditches, or on hills.
Check overhead clearance carefully before
driving under any objects.
ALWAYS wear seat belt while operating the
unit with the ROPS in the upright position.
Do not wear a seat belt while operating the
unit with the center bar in the lowered
position.
IMPORTANT: Do not weld, cut, drill or modify
ROPS in any manner unless instructed by the
manufacturer.
Lower Center Bar
(Figure 5)
WARNING: Make all seat
adjustments with unit stationary,
parking brake on and engine shut off.
07800221
WARNING: Lower the center bar
only when necessary to drive under
an object. There is no rollover
protection with the center bar in the
down position.
