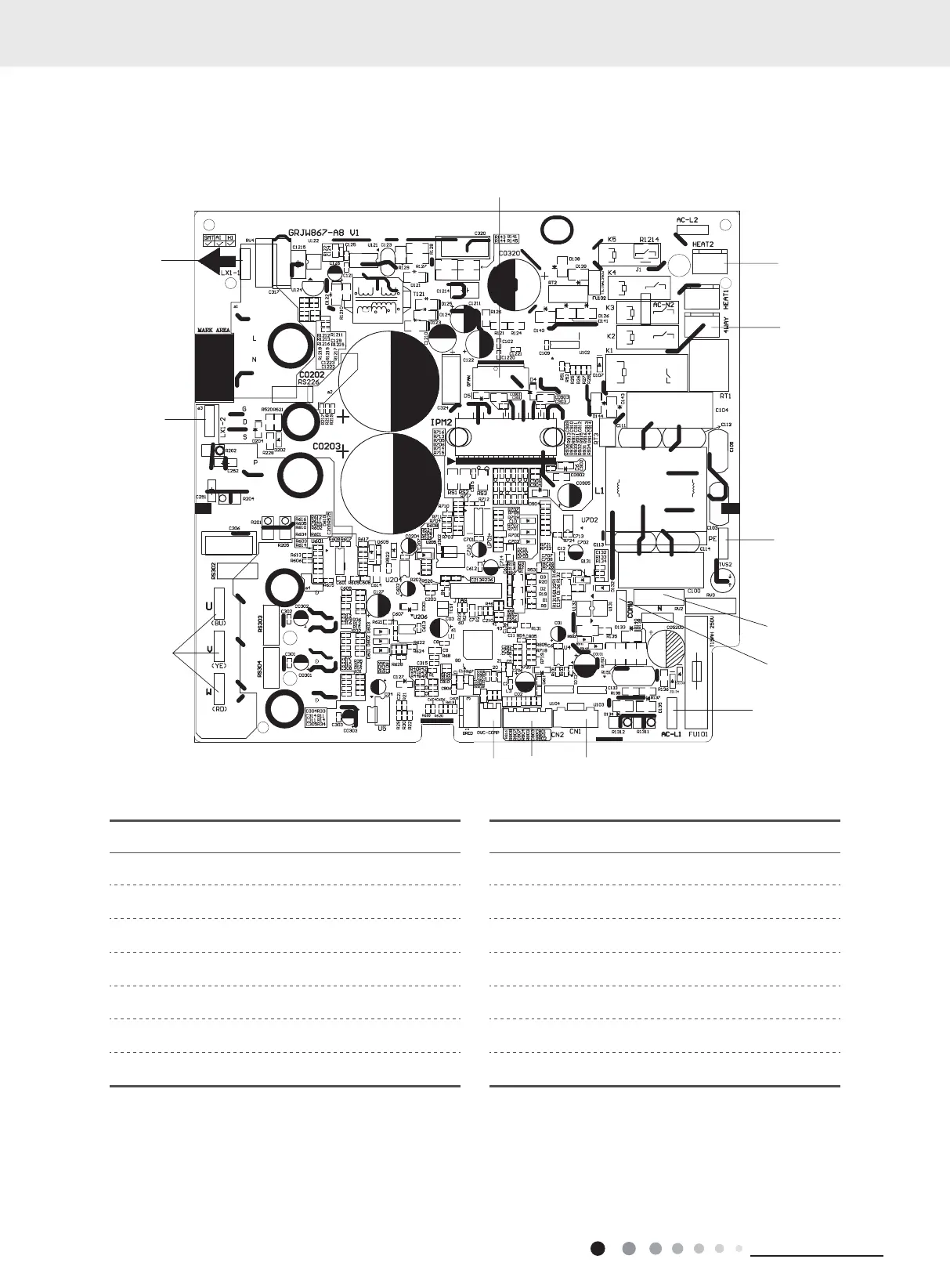

3VIR09HP230V1AO 3VIR12HP230V1AO
5. Electrical Part
No. Name No. Name
1 Interface of compressor wire 8 Communication wire
2 Reactor wiring terminal 2 9 Live wire
3 Reactor wiring terminal 1 10 Terminal of electronic expansion valve
4 Terminal of chassis electric heater 11 Interface of temperature sensor
5 4-way valve terminal 12 Overload interface of compressor
6 Grounding wire 13 Terminal of outdoor fan
7 Neutral wire
