POWER AND WIRING INSTALLATION

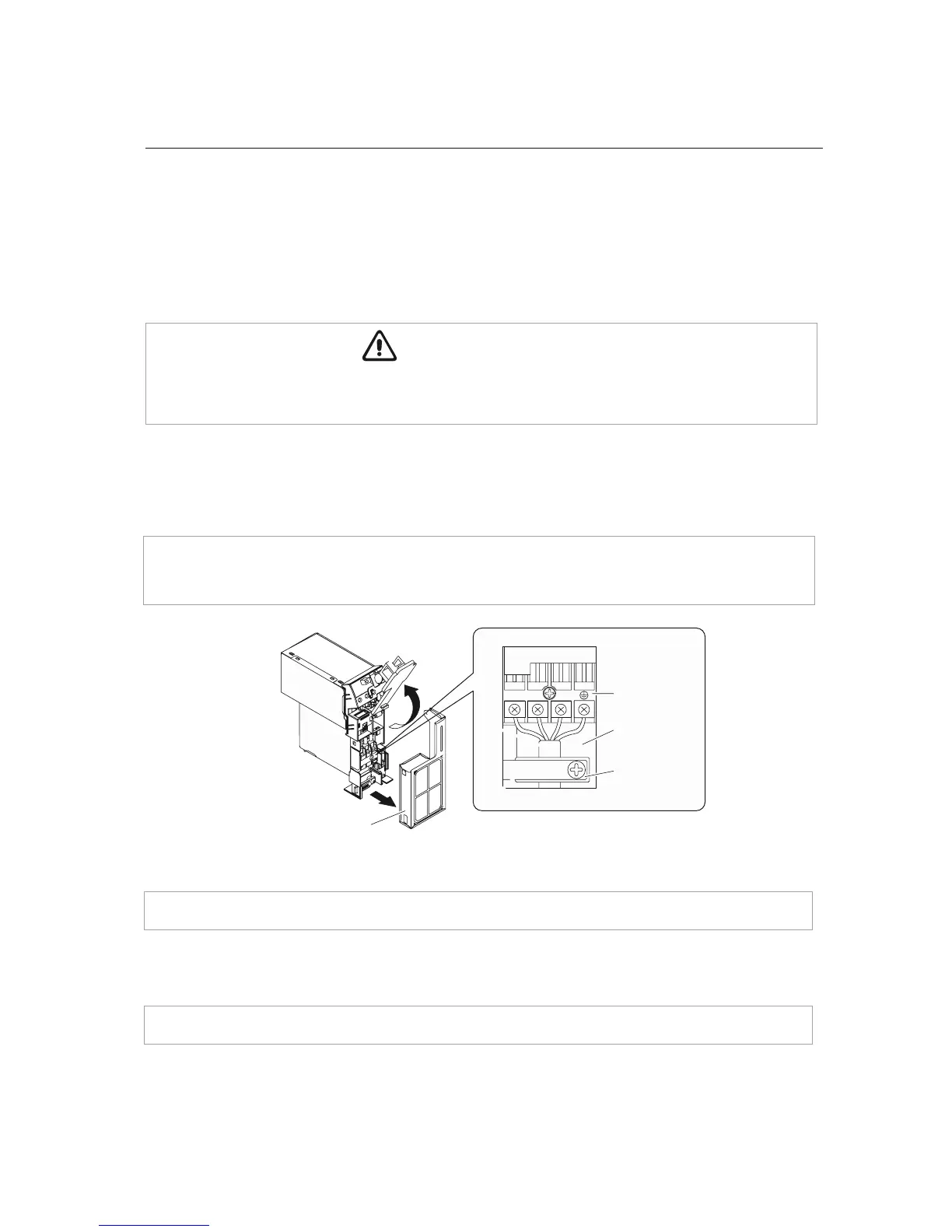

Electrical Connections to Floor Console
Disconnect all electrical power to indoor and outdoor units including disconnects,
fuses and circuit breakers. Lockout and tag all disconnect switches.
1. Adjust the length of the interconnecting wires so that it can easily reach the Floor Console
electrical control box.
2. Open electrical control box cover and route the interconnecting wires to field wiring terminal block.
NOTE:
The indoor unit is powered from the outdoor unit, depending on local code, a
disconnect switch may need to be installed to a power supply circuit.
3. Secure interconnecting wires to the terminal block as shown in the connection diagram above.
NOTE:
Record wire colors and terminal references for uses with Outdoor Unit wire connections.
4. Secure all wires inside wire clamp/strain relief. Verify wires are secure, not loose and no
external force on wires affects the connections at the terminals.
NOTE:
Crossing interconnecting wires will cause system malfunction and possible damage.
5. Replace field wiring metal cover plate on unit.
WARNING
Outdoor Electrical Wiring
For Outdoor Unit wire connections, see installation instructions shipped with the outdoor unit.
