Vertical Exposed Fan Coil Unit
8

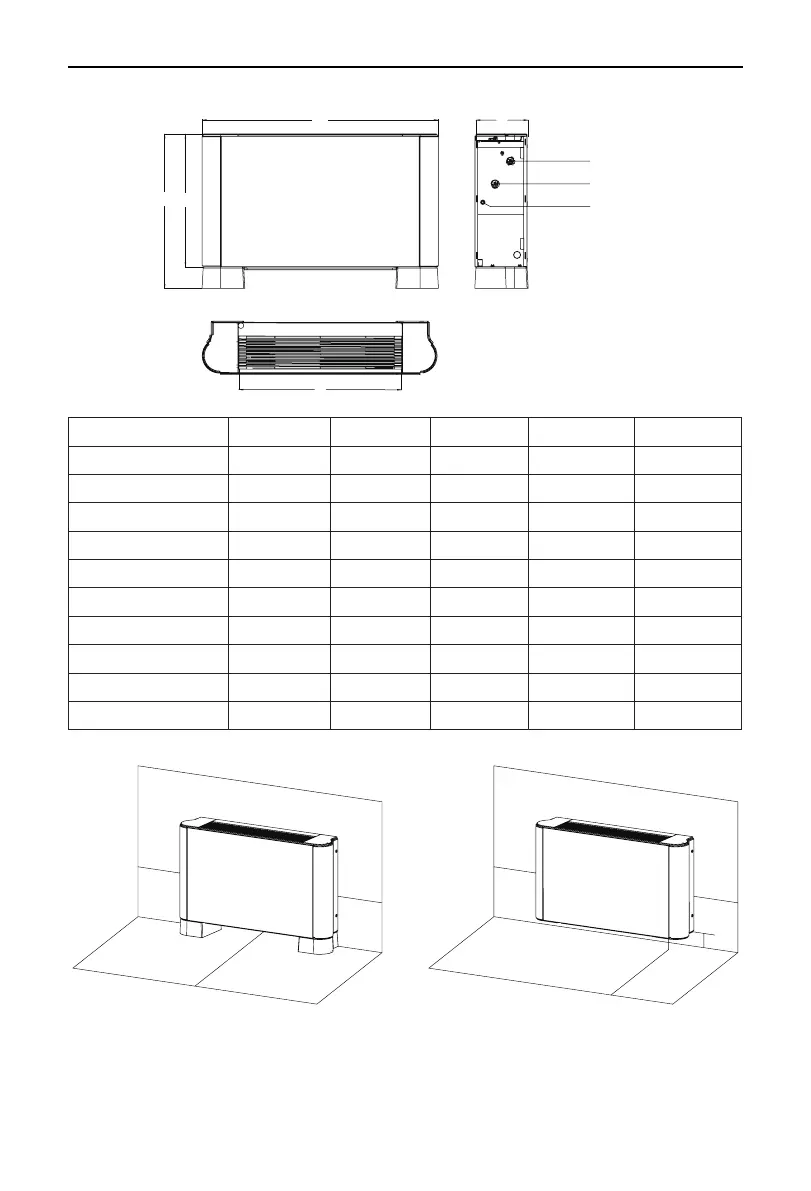

2.3 Outline dimensions
E
A
C
B
D
Outlet pipe size Rc3/4
Inlet pipe size Rc3/4
Drain pipe size φ22
Unit: mm
Model A B C D E
FP-22LM/D-K 895 680 585 230 568
FP-34LM/D-K 895 680 585 230 568
FP-51LM/D-K 1050 680 585 230 723
FP-68LM/D-K 1050 680 585 230 723
FP-85LM/D-K 1050 680 585 230 723
FP-102LM/D-K 1350 680 585 230 1023
FP-119LM/D-K 1350 680 585 230 1023
FP-136LM/D-K 1350 680 585 230 1023
FP-170LM/D-K 1773 680 585 230 1446
FP-204LM/D-K 1773 680 585 230 1446
2.4 Installation and maintenance space
≥60cm
≥60cm
≥100cm
≥60cm
≥60cm
≥100cm
≥10cm
Vertical-mounted
Wall-mounted
2.5 Installation of inlet and outlet pipes
(1) Open the panel. Loosen three screws and lift the decorated panels (on left or right side) 1cm above
and remove them in a horizontal way.
(2) Install water valves and pipes and get wires in.
