Gree FP-22LM/D-K User Manual

Vertical Exposed Fan Coil Unit
13

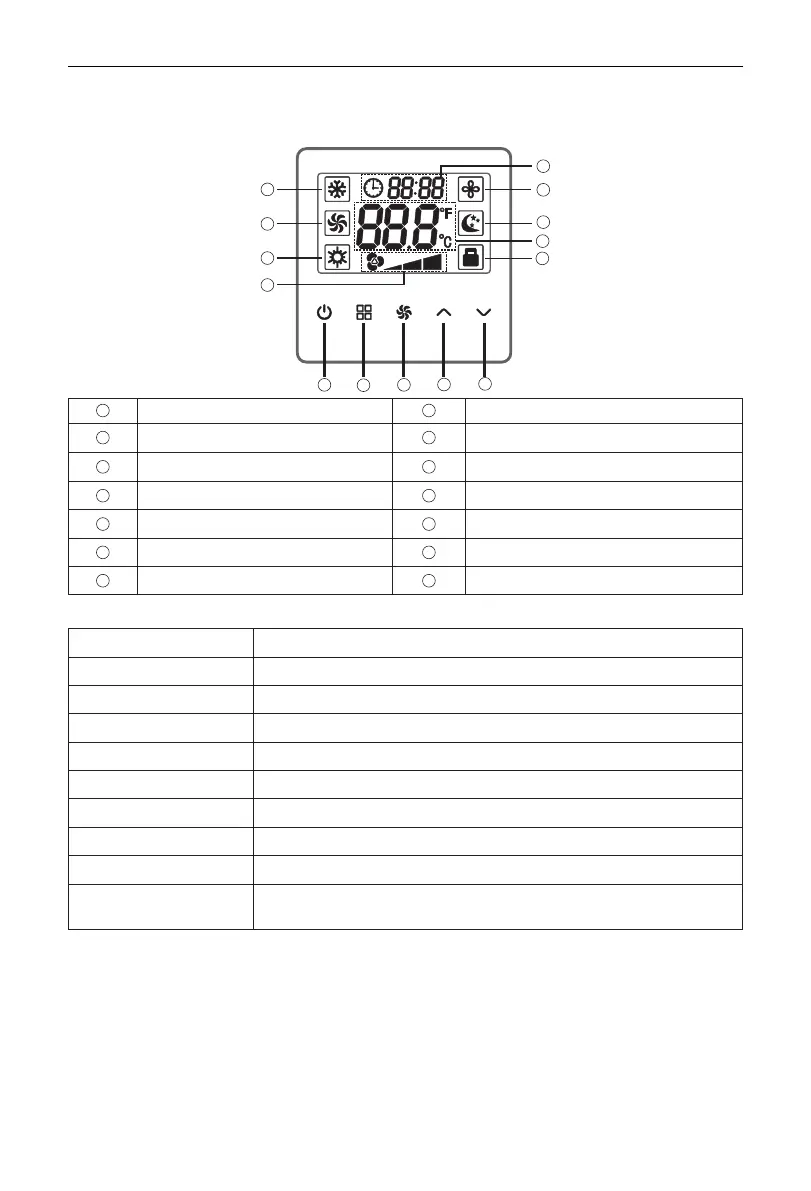

3 Thermostat guide
3.1 Thermostat panel and keys
5
6
7
8
9
10
11
12
13
14
1
2
3
4
1
Cooling mode
8
Temperature or failure codes
2
Air supplying mode
9
Child lock
3
Heating mode
10
ON/OFF
4
Fan speed
11
MODE
5
Timer
12
SPEED
6
Drying function
13
UP
7
Sleep function
14
DOWN
3.2 Technical parameters
Item Description
Supply voltage AC85~265V 50/60Hz
Temperature setting 16~30°C
Operation temperature 0~50°C
Humidity Relative humidity 5~95% (no condensate)
Load current 2A (resistive load); 1A (inductive load)
Connecting terminal Wires of less than 2.5mm
2
Outline dimensions 86×86×10mm (width x height x thickness)
Protection class IP 30
Installation requirement
An 86x86 unconcealed or concealed standard junction box with more than
40mm interior height and standard 60mm hole spacing

Gree FP-22LM/D-K Specifications

General

Brand	Gree
Model	FP-22LM/D-K
Category	Heat Pump
Language	English
