(2) The manifold must be matched with the equipment. The other products which are not
specified by the manufacturer shall not be used.
(3) Check the model before installing the manifold. Do not use it incorrectly.

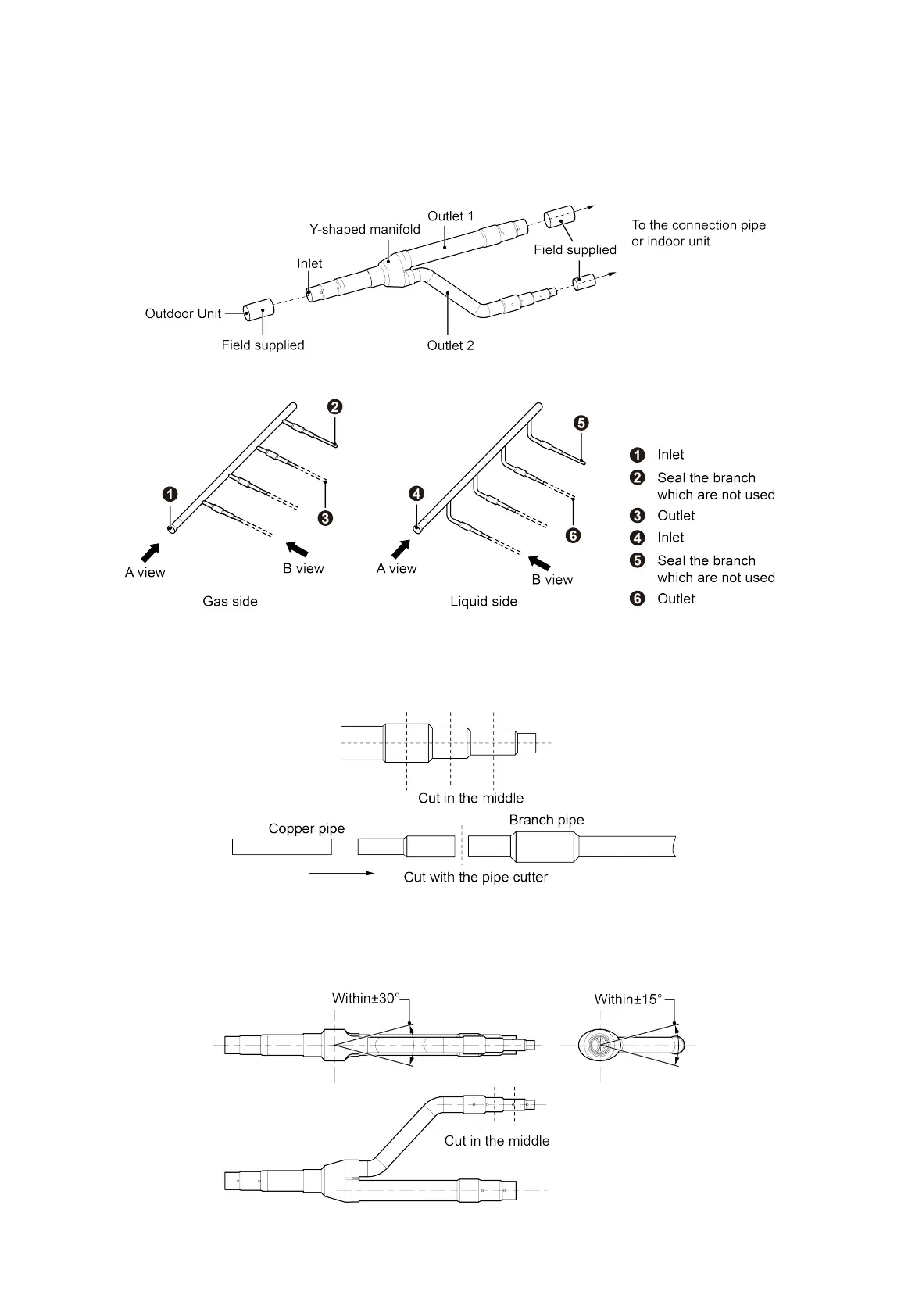

1) Y-type manifold, see in Fig. 3.4.2(a). T- type manifold, See the Fig. 3.4.2(b)
Fig. 3.4.2(a)
Fig. 3.4.2(b)
2) Manifold has several pipe sections with different pipe size, which facilitates to match with
various copper pipe. Use pipe cutter to cut in the middle of the pipe section with different
pipe size. See the Fig. as below.
Fig. 3.4.3
3) Y-type manifold can be installed vertically or horizontally. Confirm the position and then
weld the manifold pipe. See Fig. 3.4.4(a). T-type manifold must be installed horizontally
with inclination, see the Fig. 3.4.4(b).
Fig. 3.4.4(a)
