12. Removal Procedure
Warning: disconnect power supply before
removal; discharge the refrigerant completely
before unsoldering the pipes.

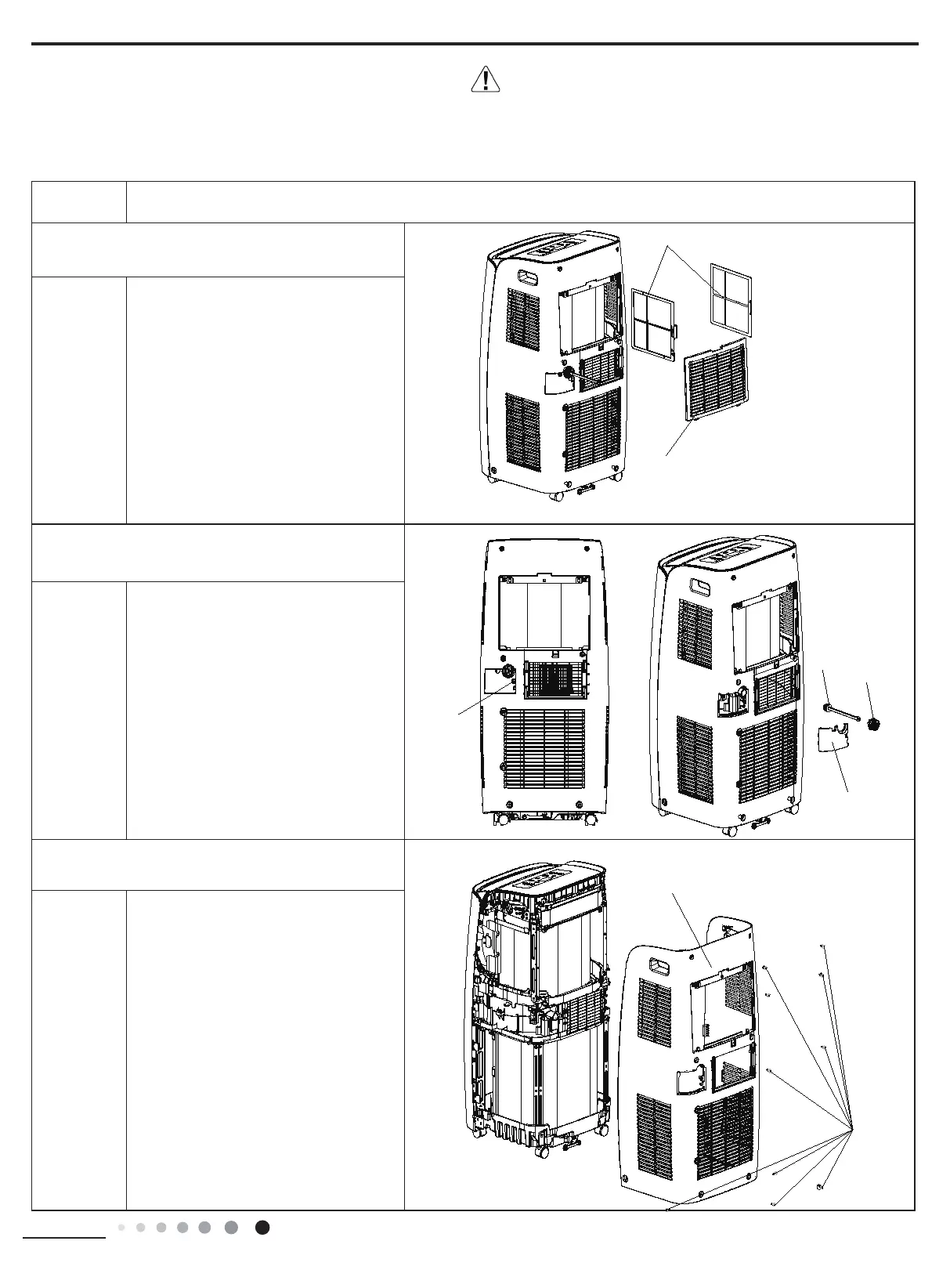

Filter sub-assy 1
Filter Sub-assy 2
1.Remove lter sub-assy
2. Remove
rubber cord and drainage cover
wire-passing board
Remove lter sub-assy 1 and lter sub-
assy 2.
Step Procedure
Screw
wire-passing
board
Rubber
cord
Drainage
cover
Remove one screw, and then twist off
the drainage cover and rubber cord.
Finnaly, take out the wire-passing board.
3.Remove backboard
Remove 10 screws on the backboard
and then take out the backboard.
Screws
Backboard
