Gree GWH09YD-S6DBA2A User Manual

12
Technical Information
Service Manual
No. Name
1 Terminal of compressor
2
Overload Terminal of
compressor
3
Terminal of temperature
sensor
4
Terminal of electronic
expansion valve 1
5
Terminal of electronic
expansion valve 2
6
Low-temperature cooling
sensor
7 Terminal of outdoor fan
8
Terminal of chassis electric
heater
9 Terminal of 2-way valve
10 Terminal of 4-way valve
11
Communication wire with
indoor unit
12 Live wire terminal
13 Earthing wire terminal
14 Neutral wire terminal

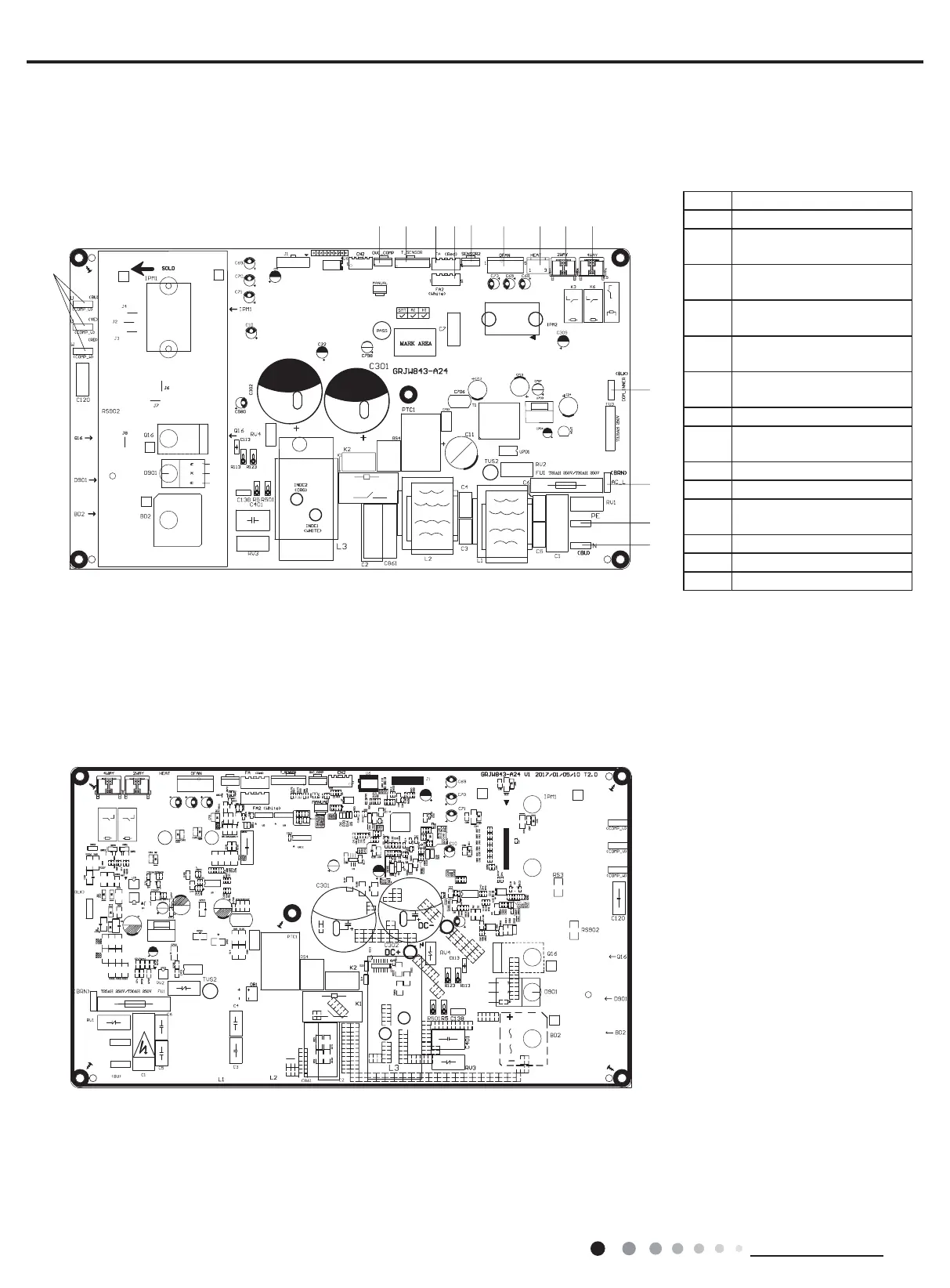

● Outdoor Unit
● Bottom view
● Top view
1
23 4567 89
10
11
12
13
14
