13
Technical Information
Service Manual
1234 56
7
8
9
10
11
1
Terminal of compressor
wire
2
Terminal of low pressure
protection
3
Terminal of compressor
overload protection
4
Terminal of outdoor
temperature sensor
5Terminal of outdoor fan
6Terminal of 4-way valve
7
Communication wire
with indoor unit
8Power supply live wire
9Earthing wire
10
Power supply neutral
wire
11 PFC induction wire

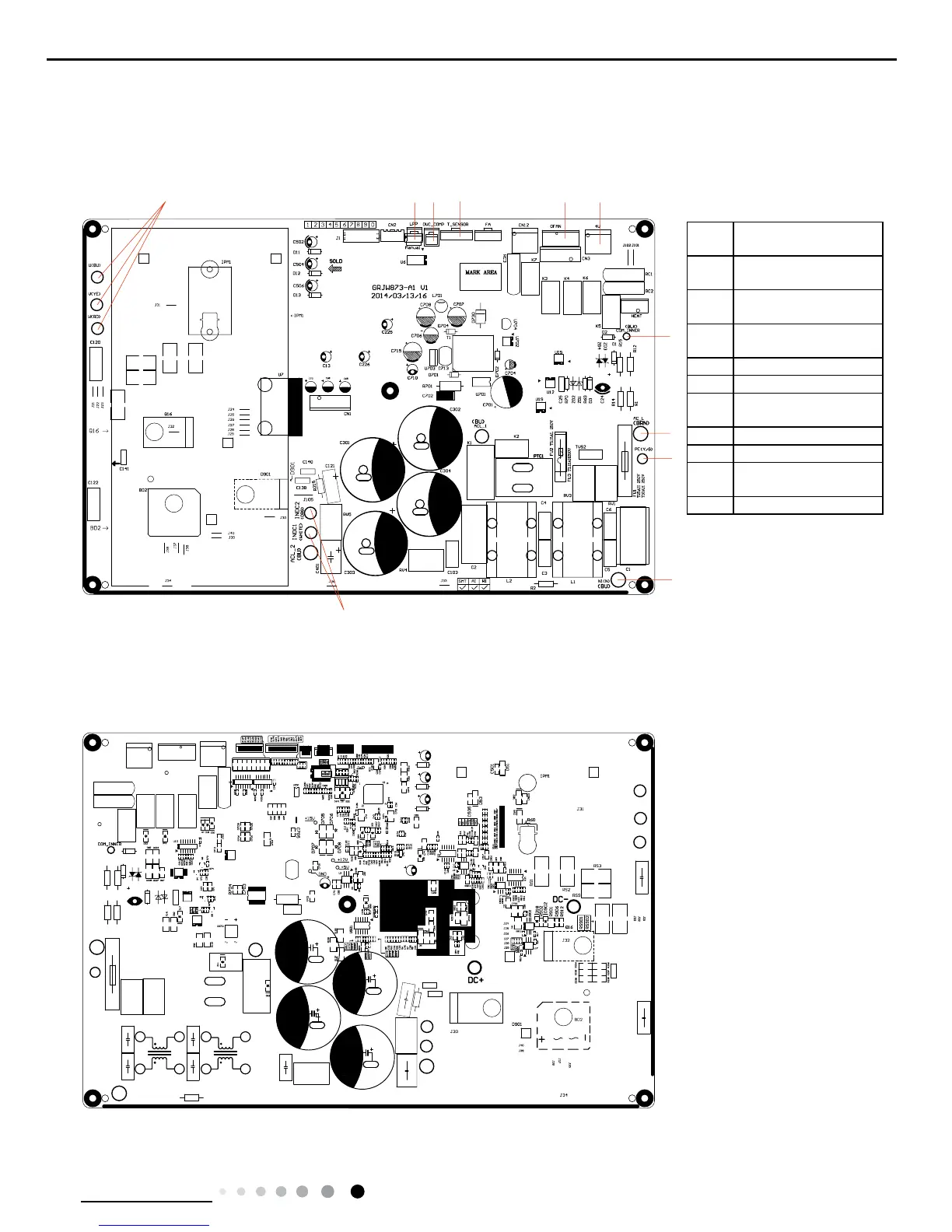

● Top view
● Bottom view
Outdoor Unit
18K
