Gree Split Air Conditioner User Manual

２２
Ø
●

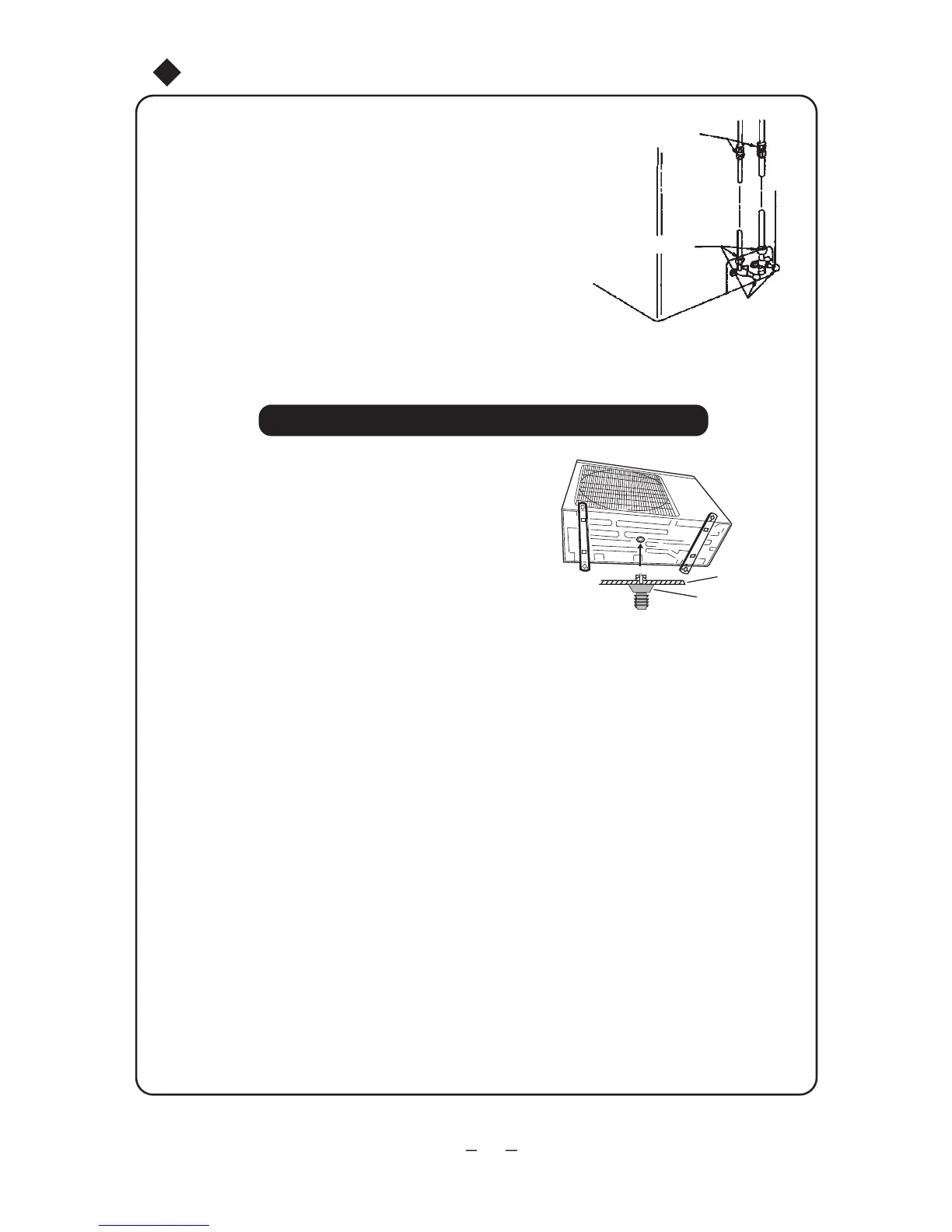

Outdoor condensation drainage (Heat pump type only)
When the unit is heating, the condensing water
and defrosting water can be drained out reliably
through the drain hose.
Installation: Install the outdoor drain elbow in
25 hole on the base plate, and joint the
drain hose to the elbow, so that the wastewater
formed in the outdoor unit can be drained out
to a proper place.
Chasis
Outdoor drain
elbow
Install outdoor unit
Fig.6
Use soap water or leak hunting meter to check whether
the joints is leak.
Indoor unit check point
Outdoor unit check point
Leak hunting

Gree Split Air Conditioner Specifications

General

Type	Split Air Conditioner
Cooling Capacity	Varies by model (e.g., 9000 BTU, 12000 BTU, 18000 BTU, 24000 BTU)
Power Supply	220-240V, 50Hz
Refrigerant	R32 or R410A
Air Flow (Indoor)	Varies by model (e.g., 500 - 1000 m³/h)
