Grundfos MS Series User Manual

Appendix
28
TM00 1347 5092

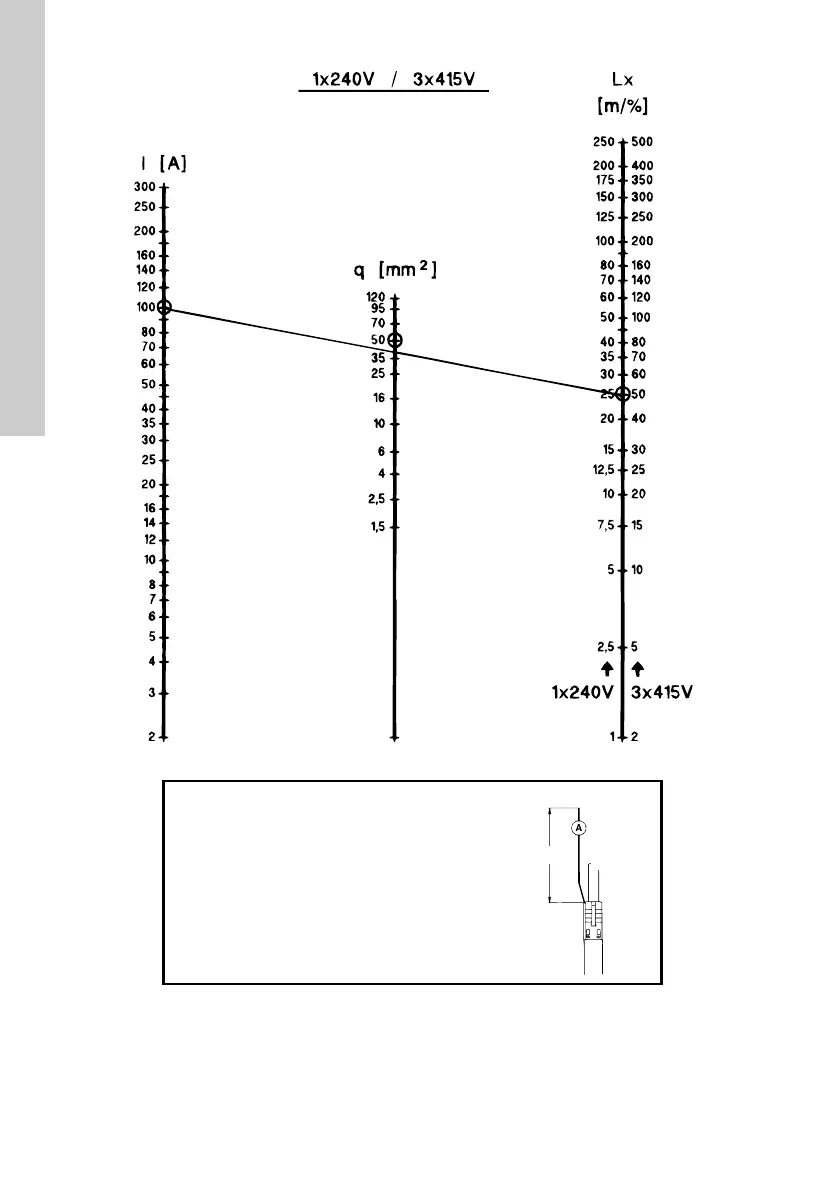

Example:
U = 3 × 415 V
I= 100 A
L = 150 m
U= 3 %
Lx
L
U
--------
150
3 %
---------- 50 m q 50 mm
2
== = =
I = 100 A
U = 3 %
U = 3 × 415 V
L = 150 m

Grundfos MS Series Specifications

General

Type	Submersible motor
Degree of protection	IP68
Insulation class	F
Power range	0.37 kW to 7.5 kW
Frequency	50 Hz, 60 Hz
Material	Stainless steel
