8 49-7835 Rev. 8
ENGLISH

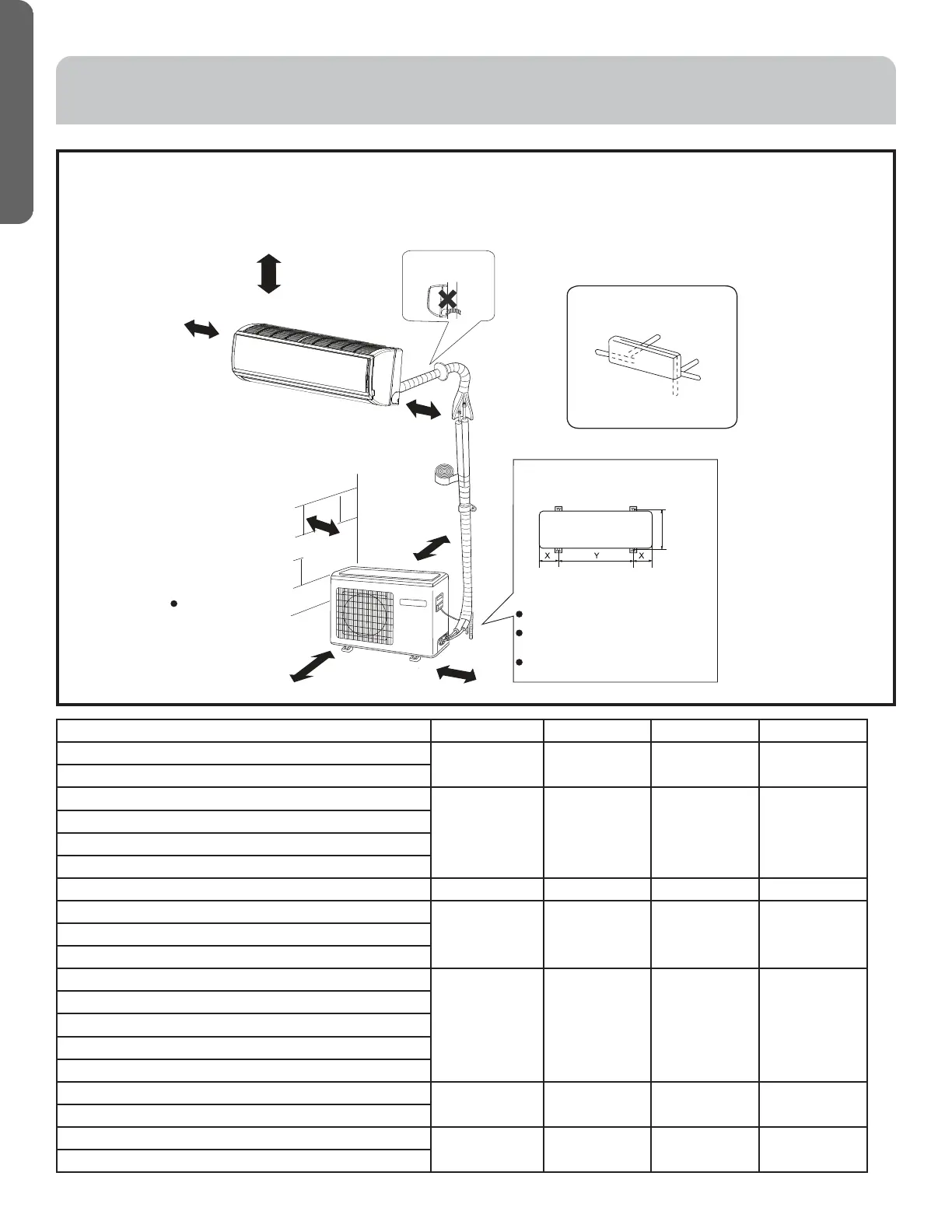

MINIMUM CLEARANCES
(Appearance may vary)
Mounting the outdoor unit:
The distance between
the indoor unit and the
or should be more
than 6 feet.
more than
4in.
more than 4in.
more than 4in.
more than 4in.
more than 6in.
more than 24in.
more than 6in.
Attention must be paid to
the pitch of drain hose
Z
1 2
Refer to the table below for mounting feet
positions and submittal for unit dimensions.
Mounting feet positions for the outdoor unit.
Securely attach the unit to a mounting pad
or brackets with 7/16" (10mm) bolts.
Use the mounting feet pads or vibration mats
where noise transmission may be a concern.
Follow local code when mounting the unit
strong winds or earthquakes.
This picture is for reference only. Your product may look different. Read your manual before installation. Explain
the operation of the unit to the user according to this manual.
Piping Exit Options
Rear left
Left
Rear
right
Right
Below
Marketing Model Number X1(inch) X2(inch) Y(inch) Z(inch)
1U09EH2VHA 4.53 4.53 23.23 12.95
1U12EH2VHA
1U18EH2VHA 5.12 5.12 25.98 15.75
1U24TE2VHA
1U24AP2VHA
1U18EH2VHD
1U18LC2VHA 4.53 4.53 22.95 12.60
1U12LC2VHA 5.47 5.51 19.69 10.20
1U09TE1VHA
1U12TE1VHA
1U18TE2VHA 5.16 5.16 24.72 14.53
1U15AP2VHA
1U18AP2VHA
1U09EH2VHD
1U12EH2VHD
1U09AP2VHA 5.12 5.91 19.69 12.20
1U12AP2VHA
1U09TE2VHA 5.12 6.30 20.08 12.32
1U12TE2VHA
INSTALLATION INSTRUCTIONS
