Haier HTF-540DGG7 User Manual

Installation
EN
Water Supply Connection
▶
▶ Pressure of the cold water supplied to the automatic
icemaker is between 0.15-0.6 Mpa.
▶ The water tube should be of an appropriate length,
usually 8 metres, and should be free of bends after
being inserted into place. If the water pipe is too
long then the water pressure will be reduced, af-
fecting the ice and cold water content.
▶ DO NOT connect to the water supply when the
ambient temperature is below 0°C, otherwise the
water pipe may freeze.
▶ Always connect to the drinking water supply.
▶ Keep the water pipe away from heat sources.
▶ The water  lter is there to  lter impurities in the
water, and to make ice clean and hygienic. It cannot
sterilise or destroy anything , so be certain to con-
nect the water pipe to a drinkable water source.
▶ Automatic water system, do not manually add water.
▶ If the ice maker is turned on but the appliance is not
connected to water,the ice maker will not work.
WARNING!
It is recommended to have this product installed by
a quali ed technician.

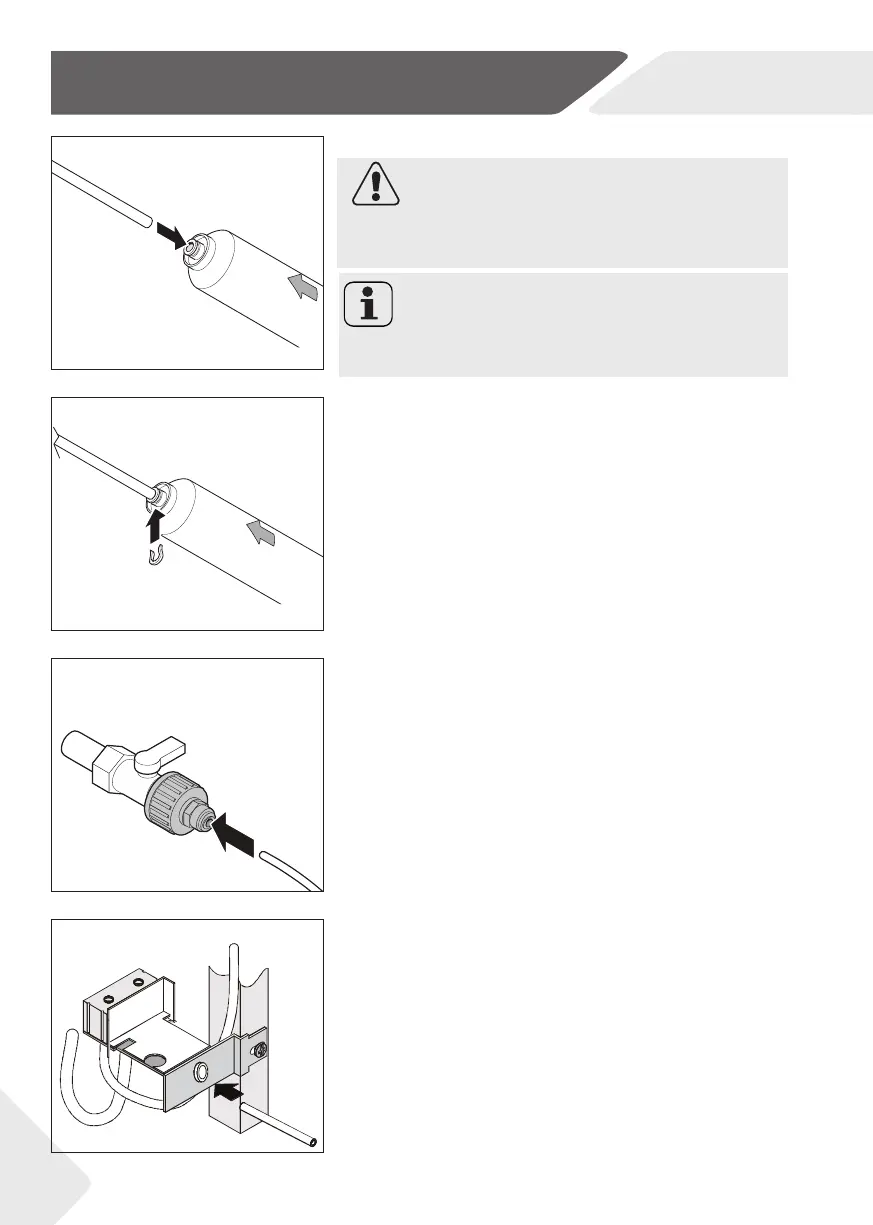

Fitting the Water Filter
Measure out and cut the length of pipe required from
the  lter to the Fridge-freezer and from the  lter to the
water supply. Make sure that you achieve a square cut
using a sharp knife. Push  t one of the pipes into the
water  lter (Fig.1). Secure the pipe to the  lter by sliding
a locking clip into the groove a shown (Fig. 2).Repeat
the procedure on the other end of the  lter. Connect
the end into the plastic adaptor (Fig.3). Screw the
adaptor onto a suitable ½” BSP connector water outlet.
Access the water valve assembly at the back of the ref-
rigerator. Push the pipe into the valve assembly (Fig.4).
Comissioning the Water Dispenser
Before  rst use, press the water dispenser pad several
times for 1 minute. Do not press for more than 1
minute to prevent overheating of the pad activator
solenoid. Cold water will begin to  ow from the outlet.
Notice
For further installation details refer to the instruc-
tions supplied with the water  lter.
34
ArtNo. 601- 0010 - S xS 661- 9 - P ipe to filter
1.
ArtNo. 601- 0005 - S xS 661- 9 - Se curing the pipe
2.
ArtNo. 601-0014 - P ipe to BSP connector
3.
4.

Haier HTF-540DGG7 Specifications

General

Control type	Touch
Display type	LED
Product color	Gray
Product design	French door
Built-in display	Yes
Door gasket type	Push-in gasket
Reversible doors	No
Shelves material	Glass
Shelf finish type	Silver frame
Appliance placement	Freestanding
Fridge net capacity	354 L
Fridge door balconies	6
Number of vegetable drawers	1
Star rating	4*
Freezer position	Bottom-placed
Freezing capacity	12 kg/24h
Freezer net capacity	174 L
Freezer number of doors	2
Freezer number of shelves/baskets	4
Storage time during power failure	12 h
Current	2 A
Connected load	- W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Annual energy consumption	360 kWh
Control position	Internal
Noise level	37 dB
Climate class	SN
Cooling system	Dynamic (fan-assisted)
Total net capacity	528 L
Package width	980 mm
Package height	737 mm
Package weight	145000 g

Weight and Dimensions

Depth	648 mm
Width	908 mm
Height	1900 mm
Weight	130000 g
