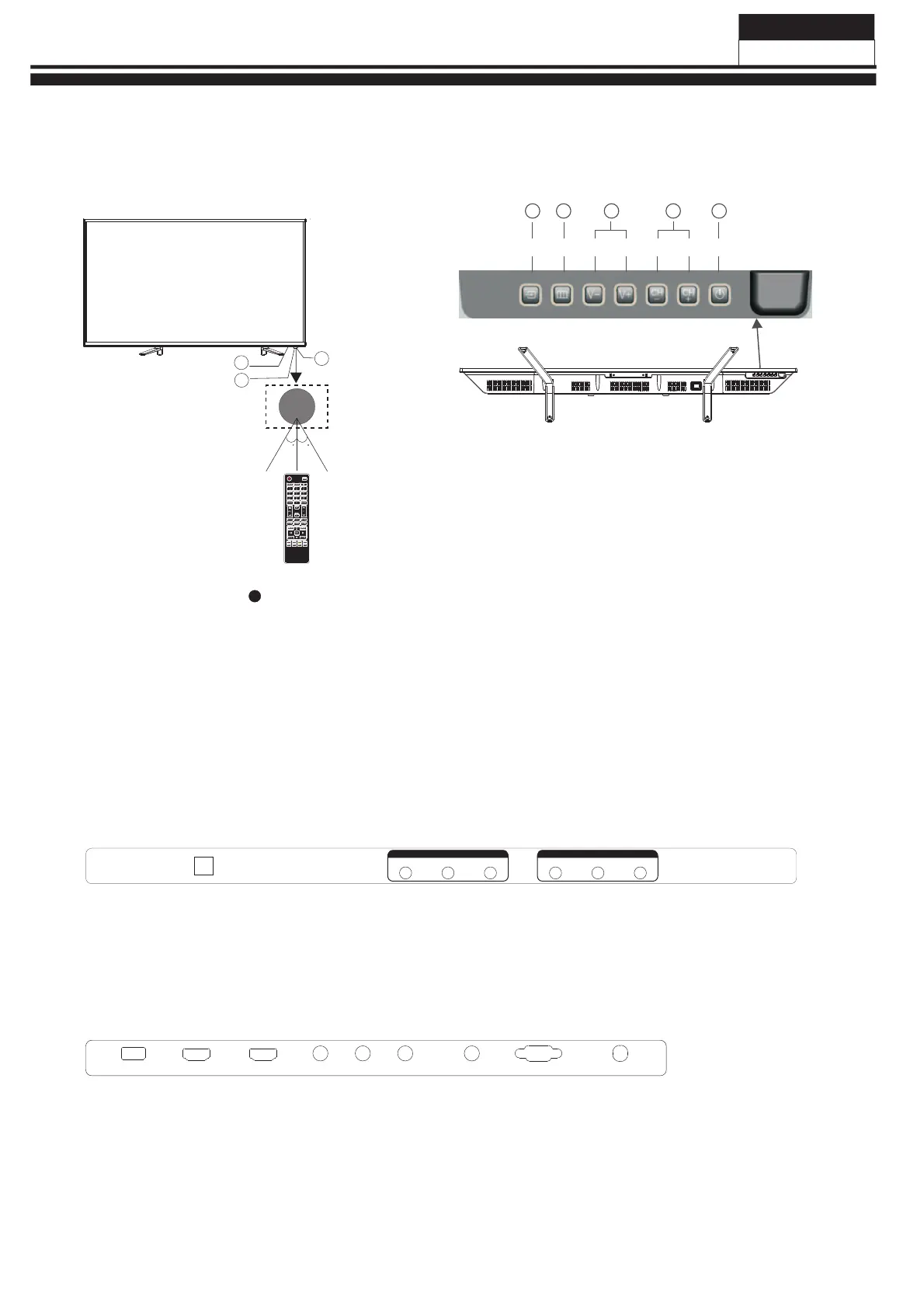

Front panel (LE32B8000)
KEYBOARD (LE32B8000)
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
REAR AV Connections (LE32B8000)
All the terminals are(from left to right):
AC POWER SOCKET, AV INPUT, AV OUTPUT.
Note: VIDEO and YPbPr share one audio channel.
REAR AV Connections (SIDE) (LE32B8000)
All the terminals are (from left to right):
USB, HDMI2, HDMI1, YPbPr, PC AUDIO, VGA, RF.
Note: When HDMI port get DVI signal, the audio signal receives from the PC Audio channel.
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V-/V+
Adjust sound level.
In MENU mode, press“V+”or“V-”to
adjust the item that you selected.
4．CH-/CH+
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
SOURCEMENUV-V+CH-CH+Standby
12345
3
2
3030
1
100-240V~ 50/60Hz
AC-INPUT
VIDEOLR
AV IN
VIDEOLR
AV OUT
USB
HDMI2HDMI1
Y
Pb
Pr
PC AUDIO
VGARF
Service Manual
Model No.:
6. Operation Instructions
6-1 Front panel controls
- 22 -
