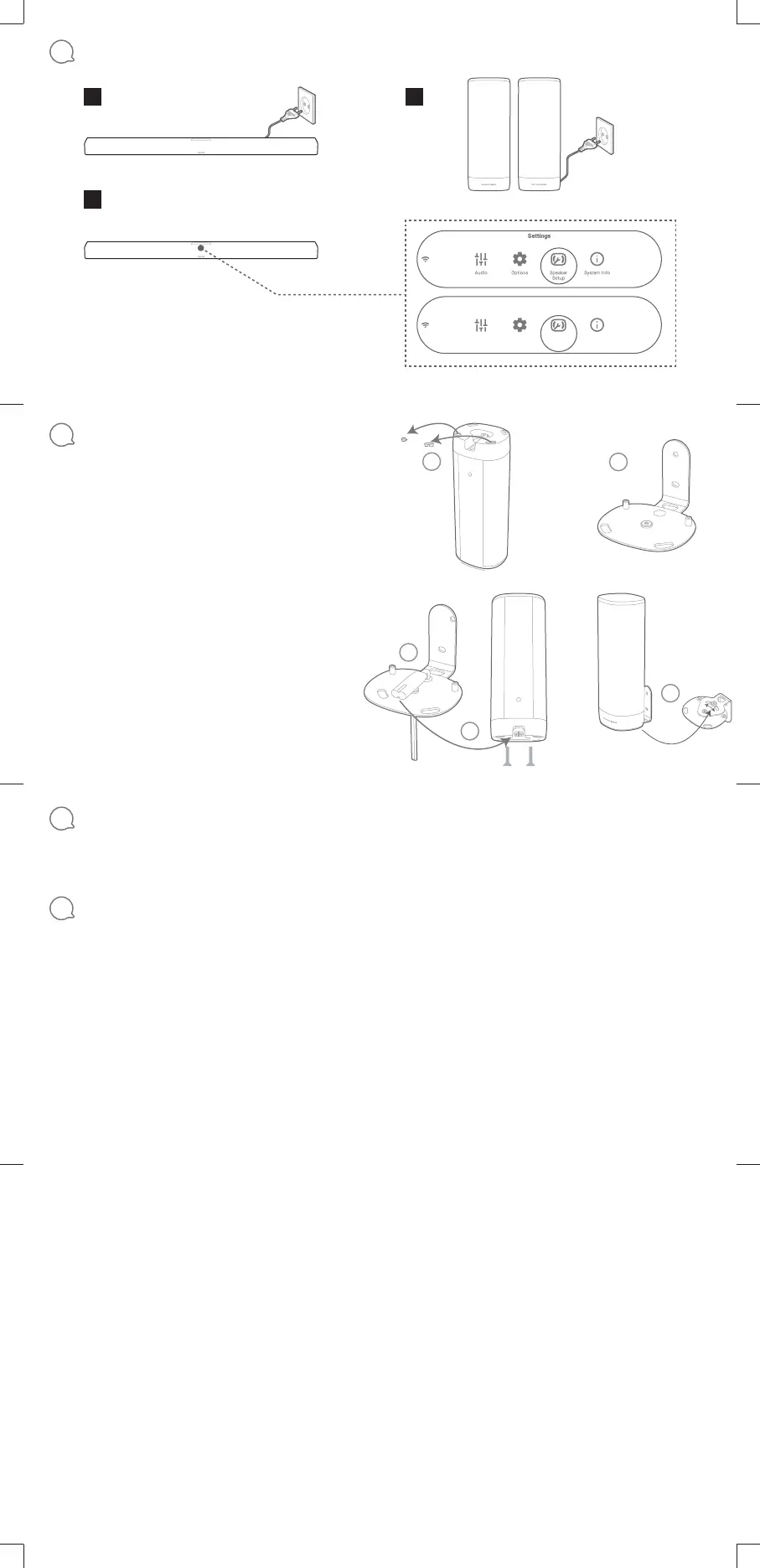

Step 1: Remove the rubber feet from the bottom of the
speaker.
Step 2: Mount the wall bracket in the wall using screws.
Step 3: Feed the power cord upward through the wall
mount and connect to the power connector.
Step 4: Place the speaker in the wall mount with the
supplied screws on the bottom.
Step 5: Use the nut at bottom of wall mount bracket to
angle the speaker and tighten.
步骤1: 取下扬声器底部的橡胶脚垫。
步骤2：使用螺钉将支架安装在墙壁上。
步骤3：电源线向上穿过支架并连接电源适配器。
步骤4：使用随附螺钉将扬声器的底部固定在支架上。
步骤5：使用支架底部的螺母调整扬声器角度并拧紧。
2
• Model name: Citation Surround
• Transducer: 1 x 25mm tweeter, 2 x 3" woofer
• Output power: 2x50W RMS
• Signal-to-noise ratio: >80dB
• Power supply: 100-240V~50/60Hz
• Power consumption in sleep mode: < 2.0Watts
• 5G WISA transmitter power: < 14dBm
• 5G WISA modulation: OFDM, BPSK, QPSK, 16QAM
• 5G WISA transmitter frequency range: 5.15-5.35GHz, 5.725-5.825GHz
• Dimension (W x H x D): 105 x 273 x 86mm
• Weight: 1.29kg
• Packaging Dimension (W x H x D): 235 x 383 x 150mm
• Packaging Weight (Gross): 3.69kg
• 型号名称：Citation Surround
• 变频器：1 x 25mm 高音扬声器，2 x 3" 低音扬声器
• 输出功率：2x50W RMS
• 信噪比：>80dB
• 电源：100-240V~50/60Hz
• 休眠模式下的功耗：<2.0W
• 5G WISA 发射器功率：< 14dBm
• 5G WISA 调制：OFDM、BPSK、QPSK、16QAM
• 5G WISA 发射器频率范围：5.15-5.35GHz、5.725-5.825GHz
• 产品尺寸（宽 x 长 x 厚）：105 x 273 x 86mm
• 产品重量：1.29 公斤
• 包装尺寸（宽 x 长 x 厚）：235 x 383 x 150mm
• 包装重量（总重）：3.69 公斤
CH_HK Citation_Surround_QSG_China_SOP_V7
SPECIFICATION / 规格
5
4
WALL MOUNT / 壁挂
3
OWNER’S MANUAL / 说明书
Download the full owner's manual from harmankardon.com
请前往 harmankardon.com 下载完整版说明书
1
Reset
Reset
3
4
5
This product contains open source software. For your convenience, the source code and relevant build instruction for software
licensed under the GPL is available at http//www.harmankardon.com/opensource. You may also obtain this information by
contacting us at OpenSourceSupport@Harman.com
Select “Speaker Setup”, follow on-screen instructions.
选择“扬声器设置”，按照屏幕指引进行操作。
GET STARTED / 启动
