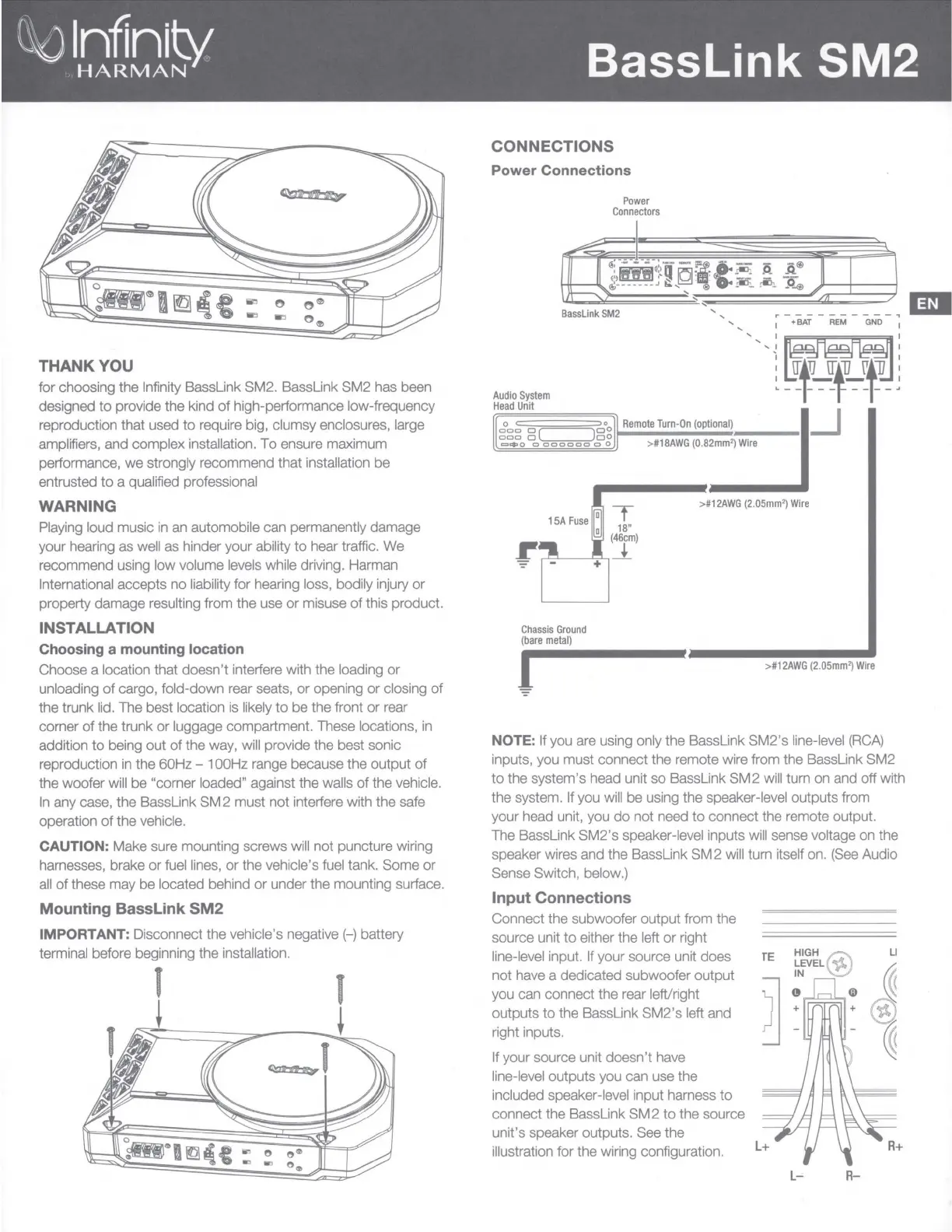

THANK YOU
for choosing the Infinity
Basslink
SM2.
Basslink
SM2 has been
designed
to
provide the kind of high-performance low-frequency
reproduction that used
to
require big, clumsy enclosures, large
amplifiers, and complex installation. To ensure maximum
performance,
we
strongly recommend that installation be
entrusted
to
a qualified professional
WARNING
Playing loud music
in
an
automobile can permanently damage
your hearing as well as hinder your ability
to
hear traffic. We
recommend using low volume levels while driving. Harman
International accepts no liability for hearing loss, bodily injury or
property damage resulting from the use or misuse of this product.
INSTALLATION
Choosing a mounting location
Choose a location that doesn't interfere with the loading
or
unloading
of
cargo, fold-down rear seats, or opening
or
closing of
the trunk lid. The best location
is
likely
to
be the front or rear
corner
of
the trunk
or
luggage compartment. These locations,
in
addition
to
being out of the way, will provide the best sonic
reproduction
in
the 60Hz - 1 00Hz range because the output
of
the woofer will be "corner loaded" against the walls
of
the vehicle.
In
any case, the
Basslink
SM 2 must not interfere with the safe
operation of the vehicle.
CAUTION: Make sure mounting screws will not puncture wiring
harnesses, brake or fuel lines, or the vehicle's fuel tank. Some or
all
of
these may be located behind or under the mounting surface.
Mounting
Basslink
SM2
IMPORTANT: Disconnect the vehicle's negative(-) battery
terminal before beginning the installation.
' '
CONNECTIONS
Power
Connections
Power
Connectors
Basslink
SM2
r-----------,
I +BAT
REM
GNO
I
Audio
System
Head
Unit
',,\ffl!
0 o
~~~
8(
)8g
c::::u::s:,o
O
000000
0 0
Chassis
Ground
(bare
metal)
1
Remote
Turn-On
(optional)
_J
>#18AWG
(0.82mm')
Wire
>#12AWG
(2.05mm')
Wire
>#12AWG
(2.05mm')
Wire
NOTE: If you are using only the
Basslink
SM2's line-level
(RCA)
inputs, you must connect the remote wire from the
Basslink
SM2
to
the system's head unit so
Basslink
SM 2 will turn on and off with
the system. If you will be using the speaker-level outputs from
your head unit, you
do
not need
to
connect the remote output.
The
Basslink
SM2's speaker-level inputs will sense voltage on the
speaker wires and the
Basslink
SM 2 will turn itself on.
(See
Audio
Sense Switch, below.)
Input Connections
Connect the subwoofer output from the
source unit
to
either the left
or
right
line-level input.
If
your source unit does
TE
not have a dedicated subwoofer output
you can connect the rear left/right
~
outputs
to
the
Basslink
SM2's left and )
right inputs.
If your source unit doesn't have
line-level outputs you can use the
included speaker-level input harness
to
connect the
Basslink
SM 2
to
the source
unit's speaker outputs. See the
illustration for the wiring configuration.
LI
L-
R-
To Next Page
