Harman JBL ARENA SUB100P User Manual

ARENA SUB100P
JBL
Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

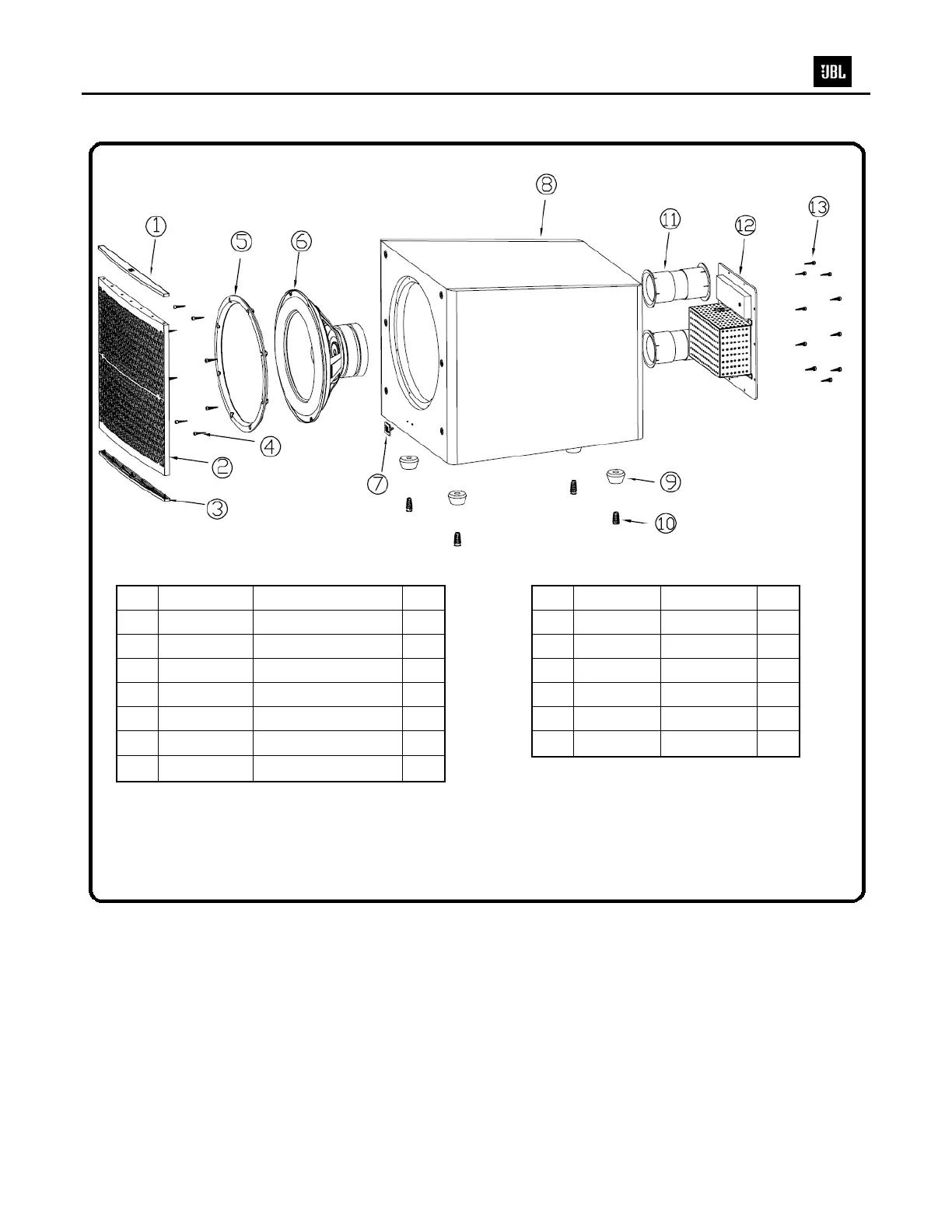

Exploded View
No. PartNo. Description Qty
1 20020063 Topdecobrace 1
2 02090031 Grille 1
3 020020062 Bottomdecobrace 1
4 N/A SelfTappingScrew 8
5 02340057 Woofertrimring 1
6 SP100028 Woofer 1
7 01400073 Logo 1
No. PartNo. Description Qty
8 N/A Cabinet 1
9 02620108 SilicaFeet 4
10 07140027 Footinsert 4
11 02160012 Porttube 2
12 BB000185  Amplifier 1
13 N/A Screw 10
23030592 Carton Box Arena SUB100P
2090042
