IMPORTANT: Make sure the
subwoofer amplifier is turned OFF before
setting the SSI switch. Do not change the
switch position while the subwoofer
amplifier is operating. Doing so could
damage the amplifier.
CONNECTING THE
AMPLIFIER
The subwoofer connectors are compatible
with bare or tinned wires. The
recommended wire gauge is between
14AWG and 8AWG, depending on the length
of the wire run between the amplifier and
woofer. Heavier gauge wire is preferred
for runs over 6'(2m).
1 .Use a 2.5 mm hex driver to open the
connectors
Z.lnsert the wire ends into the connector
openings
NOTE: If using untinned bare wire, be sure that
no stray "+"and "-"strands touch each other,
Touching strands can cause a short-circuit,
which can damage your amplifier,
3.Use the hex driver to secure the wires in the
connectors, as shown in the illustration
to the left
1. Use hex wrench to open connectors —
3. Use hex wrench to secure connectors

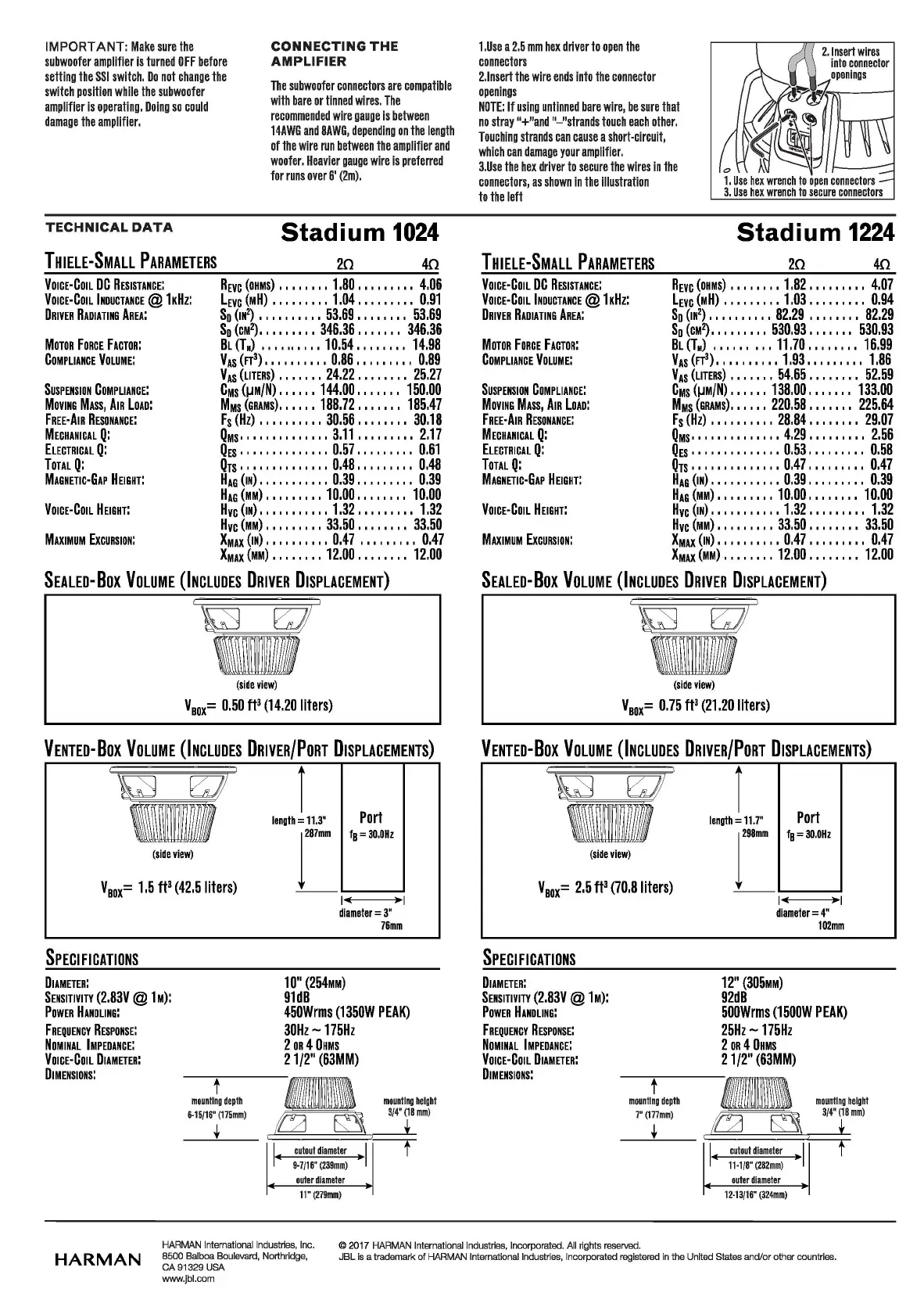

TECHNICAL DATA
Stadium 1024
THIELE-SMALL PARAMETERS
20. 40
VOICE-COIL DC RESISTANCE:
REVO (OHMS) ...
....1.80 ... 4.06
VOICE-COIL INDUCTANCE @ 1KHZ:
LEvc (MH) ....
....1.04 ... 0.91
DRIVER RADIATING AREA:
S
D
(IN
2
)
... 53.69 .. 53.69
S
D
(CM
2
)
.. 346.36 . 346.36
MOTOR FORCE FACTOR: BL(T„) ...10.54 .. 14.98
COMPLIANCE VOLUME:
VAS(FT
3
)
.... 0.86 ... 0.89
V
AS
(LITERS) ... ... 24.22 .. 25.27
SUSPENSION COMPLIANCE:
CMS(MM/N)...
..144.00 . 150.00
MOVING MASS, AIR LOAD:
MMS (GRAMS), , .
,. 188.72 . 185.47
FREE-AIR RESONANCE:
F
s
(Hz) ... 30.56 .. 30.18
MECHANICAL Q:
QMS
.... 3.11
... 2.17
ELECTRICAL Q:
QES
....0.57
... 0.61
TOTAL Q:
QTS
....0.48 ... 0.48
MAGNETIC-GAP HEIGHT:
HAG (IN)
....0.39 ... 0.39
HAG (MM)
...10.00 .. 10.00
VOICE-COIL HEIGHT:
Hvc (IN)
....1.32 ... 1.32
Hyc (MM)
... 33.50 .. 33.50
MAXIMUM EXCURSION:
XMAX ON)
.... 0.47 ... 0.47
XMAX (MM)....
... 12.00 .. 12.00
(side view)
V
B0X
= 0.50 ft
3
(14.20 liters)
(side view)
V
B0X
= 0.75 ft
3
(21.20 liters)
VENTED-Box VOLUME (INCLUDES DRIVER/PORT DISPLACEMENTS) VENTED-BOX VOLUME (INCLUDES DRIVER/PORT DISPLACEMENTS)
(side view)
V
B0X
= 1.5 ft
3
(42.5 liters)
diameter = 3"
76mm
(side view)
V
B0X
= 2.5 ft
3
(70.8 liters)
diameter = 4"
102mm
SPECIFICATIONS SPECIFICATIONS
mounting height
3/4" (1! mm)
2. Insert wires
into connector
openings
Stadium 1224
THIELE-SMALL PARAMETERS 20 40
VOICE-COIL DC RESISTANCE:
REVC (OHMS)
1.82.... .... 4.07
VOICE-COIL INDUCTANCE @ 1KHZ:
LEVC (MH) .
1.03.... .... 0.94
DRIVER RADIATING AREA: S
D
(IN
2
) — 82.29 .... .... 82.29
SQ (CM
2
)... 530.93.... .. 530.93
MOTOR FORCE FACTOR: BL(T
B
) ... 11.70.... ... 16.99
COMPLIANCE VOLUME:
V
FLS
(FT
3
)...
1.93 .... 1.86
V
A
S (LITERS)
54.65.... ... 52.59
SUSPENSION COMPLIANCE:
CMSWN)
138.00.... .. 133.00
MOVING MASS, AIR LOAD:
M
MS
(GRAMS)
220,58.... ,. 225.64
FREE-AIR RESONANCE:
FI(HZ) ...
28.84.... ... 29.07
MECHANICAL Q:
QMS
4.29....
.... 2.56
ELECTRICAL Q:
QES
0.53.... .... 0.58
TOTAL Q:
QTS
0.47.... .... 0.47
MAGNETIC-GAP HEIGHT:
HAG ON)...
0.39.... .... 0.39
H
AG
(MM) ..
10.00.... ... 10.00
VOICE-COIL HEIGHT:
Hvc (IN) . •.
1.32.... .... 1.32
Hvc (MM) ..
33.50.... ... 33.50
MAXIMUM EXCURSION:
XMAX (IN) ..
0.47.... .... 0.47
XMAX (MM) •
12.00.... ... 12.00
SEALED-BOX VOLUME (INCLUDES DRIVER DISPLACEMENT) SEALED-BOX VOLUME (INCLUDES DRIVER DISPLACEMENT)
length =11.3"
1287mm
Port
f
B
= 30.0Hz
length = 11.7"
1298mm
Port
f
B
= 30.0Hz
DIMENSIONS:
mounting depth
6-15/16" (175mm)
cutout diameter
9-7/16" (239mm)
outer diameter
11" (279mm)
DIAMETER: 10" (254MM)
SENSITIVITY (2.83V @ 1M): 91 dB
POWER HANDLING:
450Wrms (1350W PEAK)
FREQUENCY RESPONSE: 30Hz~175Hz
NOMINAL IMPEDANCE:
2 OR 4 OHMS
VOICE-COIL DIAMETER: 21/2" (63MM)
DIAMETER: 12" (305MM)
SENSITIVITY (2.83V @ 1M): 92dB
POWER HANDLING:
500Wrms (1500WPEAK)
FREQUENCY RESPONSE: 25Hz~175Hz
NOMINAL IMPEDANCE:
2 OR 4 OHMS
VOICE-COIL DIAMETER: 21/2" (63MM)
DIMENSIONS:
mounting depth
7" (177mm)
cutout diameter
11-1/8" (282mm)
outer diameter
12-13/16'(324mm)
mounting height
3/4" (18 mm)
