Hatz 2L41C User Manual

Operation and use 2L41C, 2M41, 2M41Z
42
HATZ
Operator’s Manual
Step Activity
2 Grasp the handle bar (1) with both hands.
3 Slowly turn the crankhandle until the drive dog (3) engages.
4 Turn the crankhandle forcefully with increasing speed. When the
decompression lever engages in the "0" position (compression),
the highest possible speed must be reached.
5 As soon as the engine starts, pull the crankhandle out of the
guide sleeve(4).
7.5.2 Starting the engine with a starter

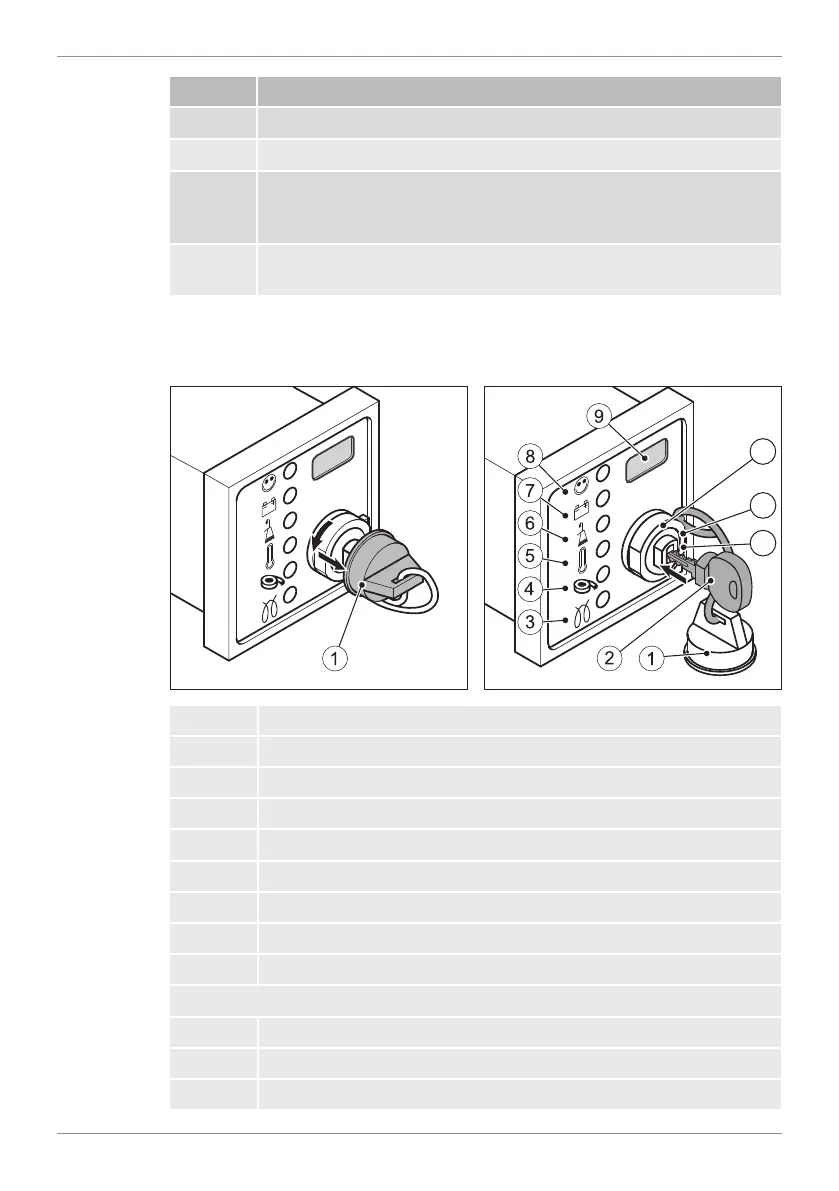

Overview — HATZ instrument boxes
0
I
II
1 Protective cap
2 Starting key
3 Pre-glow display (option)
4 Air filter maintenance display
5 Engine temperature display (option)
6 Oil pressure display
7 Charge control
8 Operating display
9 Operating hours counter (option)
Ignition lock
0 Off
I Operation
II Start

Hatz 2L41C Specifications

General

Engine Model	2L41C
Number of Cylinders	2
Fuel System	Direct injection
Lubrication System	Forced lubrication with gear pump
Starting System	Electric starter
Cooling System	Air-cooled
Engine Type	4-stroke diesel
