USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
5
6. Cut a 3” length of flex tubing and insert into the sample stream port.
7. Remove pH and ORP sensors from the plastic storage bottles and save bottles and storage
fluid for future use. Thread sensors into flow cell.
8. Remove BNC protective covers from left side of controller unit and store for future use.
These covers protect the controller unit from electrostatic discharge (ESD) and should be
used whenever handling or transporting the controller unit.
9. Connect the pH, ORP and Flow sensor cables to the controller unit as labeled. Sensor cables
are constructed from a specialized material - never cut or splice.
10. If new or additional chemical feeders are to be used with the controller, install according to
manufacturer’s instructions at this time.
11. Connect chemical feeders to the controller as labeled (See diagram on following page).
12. Check all electrical and mechanical connections. Resume filtration system operation and
check for any leaks.

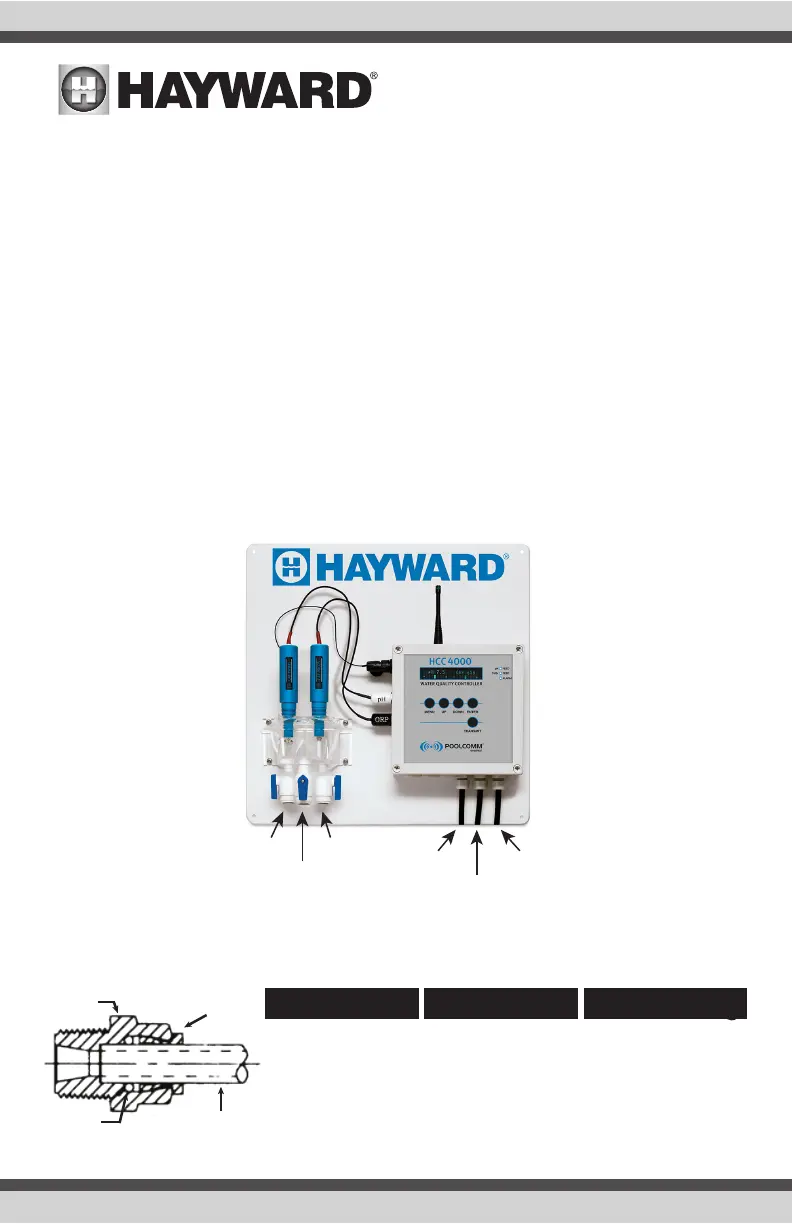

Working with Tru-Seal Fluid Connections for a Fast, Professional Installation (See diagram below).
Body
Collet
TubingO-Ring
Prepare Tubing: Insert Tubing
To Release Tubing:
Cut tubing squarely
and remove any
burrs. Mark tubing
3/4” from end. This
is the insertion mark.
Insert tubing straight
into fitting until it
bottoms out and
insertion mark is no
longer visible.
Push collet toward
fitting body and pull
on tubing to release.
Repeat steps 1 and 2
to reuse fitting.
Influent
Sample
Stream
Effluent
pH Feed
ORP Feed
Power
Supply
To Next Page
