STEP 6a: Install Light to most Niches
STEP 5: Insert Cell
STEP 6b: Install Light to Pentair Niche
For Pentair
®
niches, use the included spacer according to the
diagram below. Failure to install the plastic spacer properly may
result in the light being inadequately fastened. Plastic gunite
type niches will not require the spacer.
Refer to the manual for instructions when using a Swimquip
niche.
STEP 9: Install Trim Ring
Install the Trim Ring as shown.
STEP 5: Snake Cord through Conduit
Pull at the junction box
or transformer end to
snake the Universal
ColorLogic/CrystaLogic
cord through the con-
duit. Leave slack at
the light end for coiling
cord in the niche. The
coil length should be
adequate for placing the
light on the deck if pool
servicing ever requires
light removal.
STEP 8: Wire to Power Supply
After wiring the
Universal ColorLogic/
CrystaLogic light,
install the cover
and gasket making
sure that there is a
watertight seal.
Some niches may have an
8AWG connection from the
junction box to the niche. If so,
ensure that this connection is
not interrupted when installing
the new light.
092499 RevA

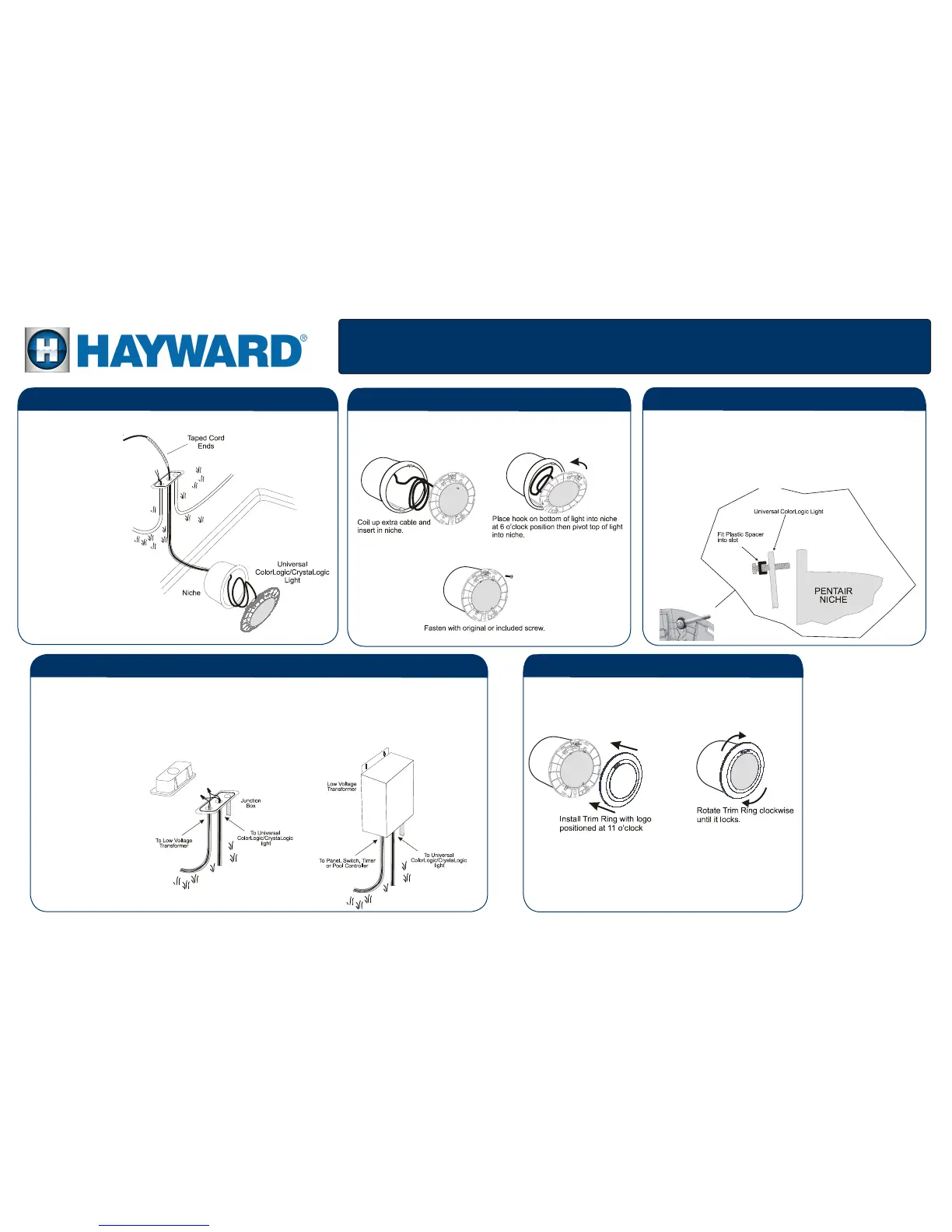

To fasten the Universal ColorLogic/CrystaLogic light to most
niches refer to the diagram below.
Replacing 12 volt pool or spa lights
with Universal ColorLogic
TM
or CrystaLogic
TM
Cut excess cord and make the wiring connection at the junction box or transformer in the same manner
as the old light.
If the new Universal ColorLogic light will be controlled by network communications using a Hayward
Pro Logic controller, an LKBUN1000 coupler must also be installed. Refer to the LKBUN1000
instructions for installation and wiring information.
