2.9 Units—Milling, Face
2.9 Units—Milling, Face

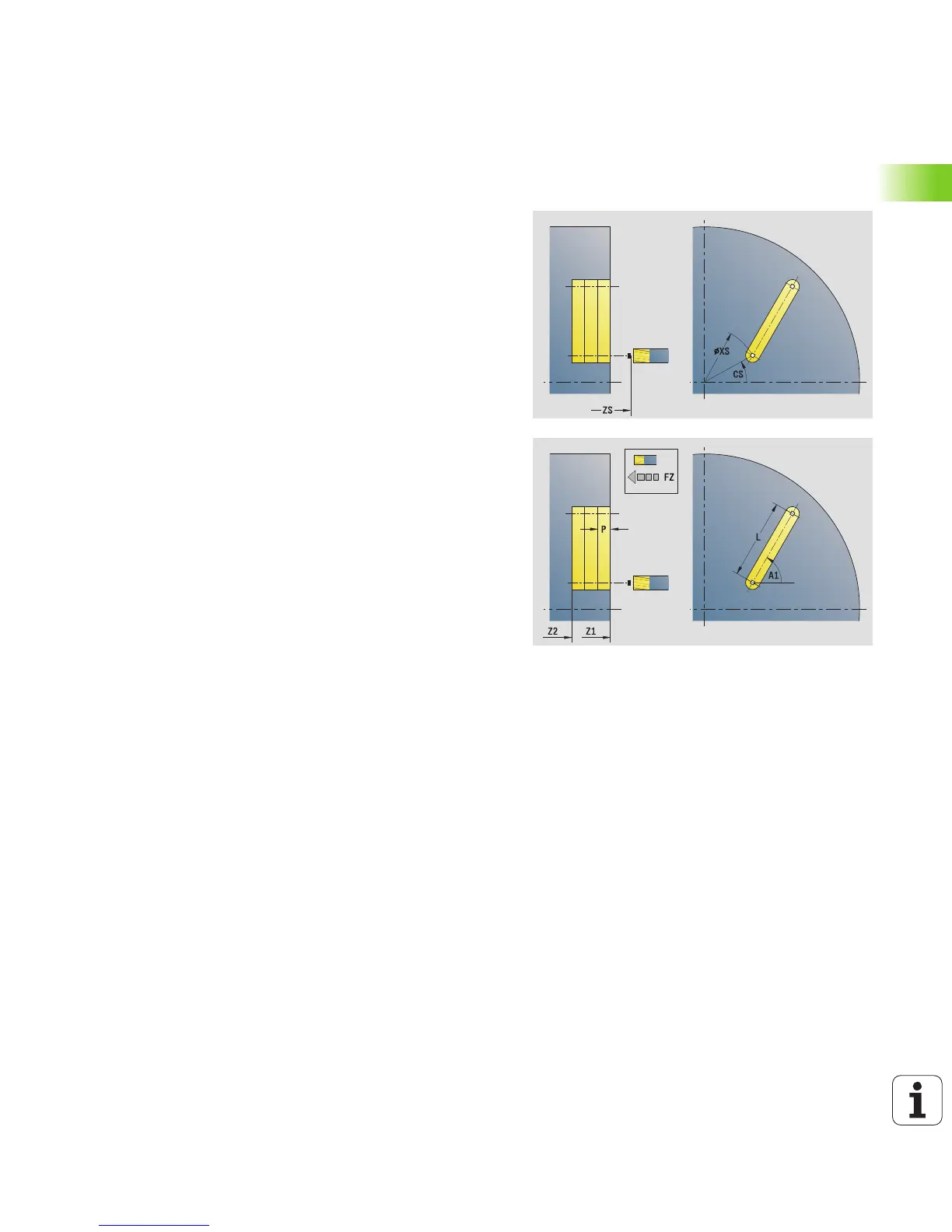

"Slot, face" unit
The unit mills a slot from the starting position to the end point on the
face of the workpiece. The slot width equals the diameter of the
milling cutter.
Unit name: G791_Nut_Stirn_C / Cycle: G791 (see page 317)
Access to the technology database:
 Machining operation: Milling
 Affected parameters: F, S, FZ, P
Pattern form
APP Approach see page 51
DEP Departure see page 51
Cycle form
Z1 Milling top edge
Z2 Milling floor
L Slot length
A1 Angle to X axis
X1, C1 Polar slot target point
XK, YK Cartesian slot target point
P Maximum infeed
FZ Infeed rate
Further forms: see page 46
