For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.

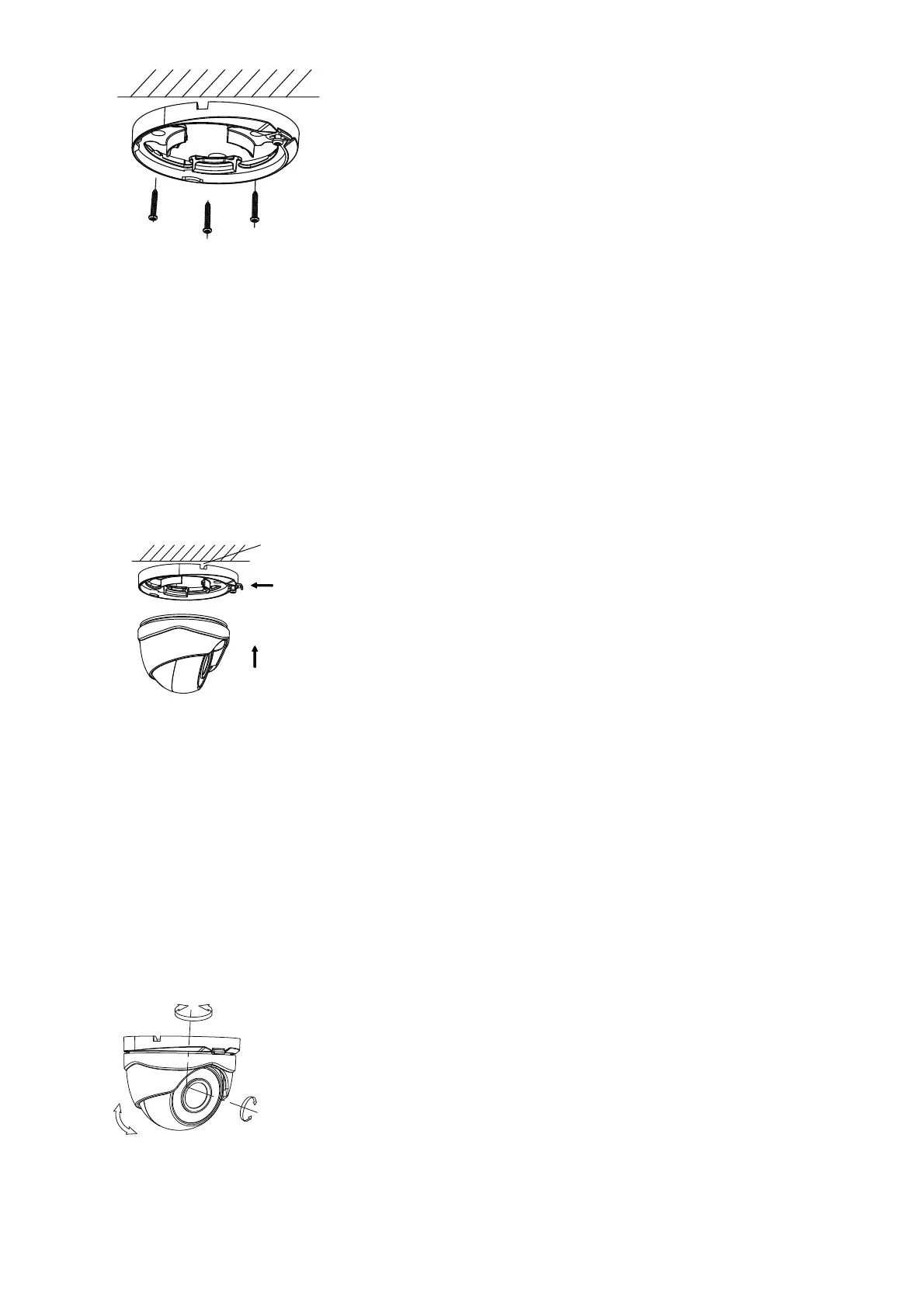

4. Route the cables through the cable hole, or the side
opening.
5. Install the camera back to the mounting base and
secure them with the trim ring.
Figure 2-6 Install the Camera back
6. Connect the corresponding power cord, and video
cable.
7. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Pan Position
[0° to 360°]
Rotation Position
[0° to 360°]
Tilt Position
[0°to75°]
Figure 2-7 3-Aixs Adjustment
8. Tighten the trim ring by clockwise rotating it.
2.3 Installation of Type III/IV Camera
Before you start:
The installation of ceiling mounting and wall mounting
are similar. Following takes ceiling mounting as an
example.
1. Disassemble the camera by rotating the camera to
align the notch to one of the marks.
2. Pry the mounting base by using a flat object, e.g., a
coin.
Figure 2-8 Disassemble the Camera
3. Drill the screw holes and the cable hole (optional)
on the ceiling.
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
4. Attach the mounting base to the ceiling, and secure
it with supplied screws. For cement ceiling, you
need to mount the expansion bolts at first.
Figure 2-9 Attach the Mounting Base to the Ceiling
To Next Page
