2. Drill the screw holes according to the drill template,
and the cable hole (optional) on the ceiling.

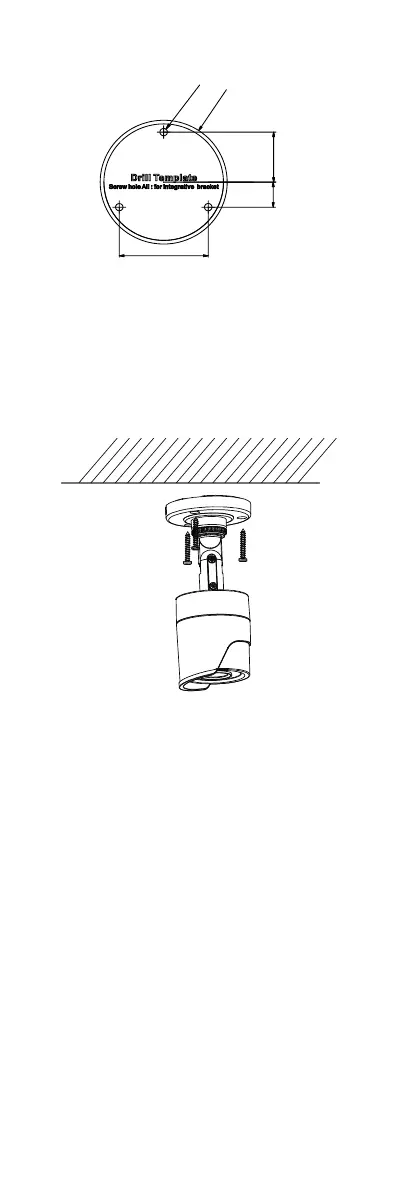

Figure 2. 4 Drill Template
Note:
Cable hole is required when adopting ceiling outlet
to route the cable.
3. Attach the mounting base of the type I camera to
the ceiling and secure the camera with supplied
screws.
Figure 2. 5 Secure the camera to the ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix
the camera. For wooden wall, self-tapping screws
are required.
4. Route the cables through the cable hole (optional),
or the side opening.
5. Connect the corresponding power cord and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle.
If not, adjust the camera according to the figure
below to get an optimum angle.
